Danfoss 87391-12-10Z

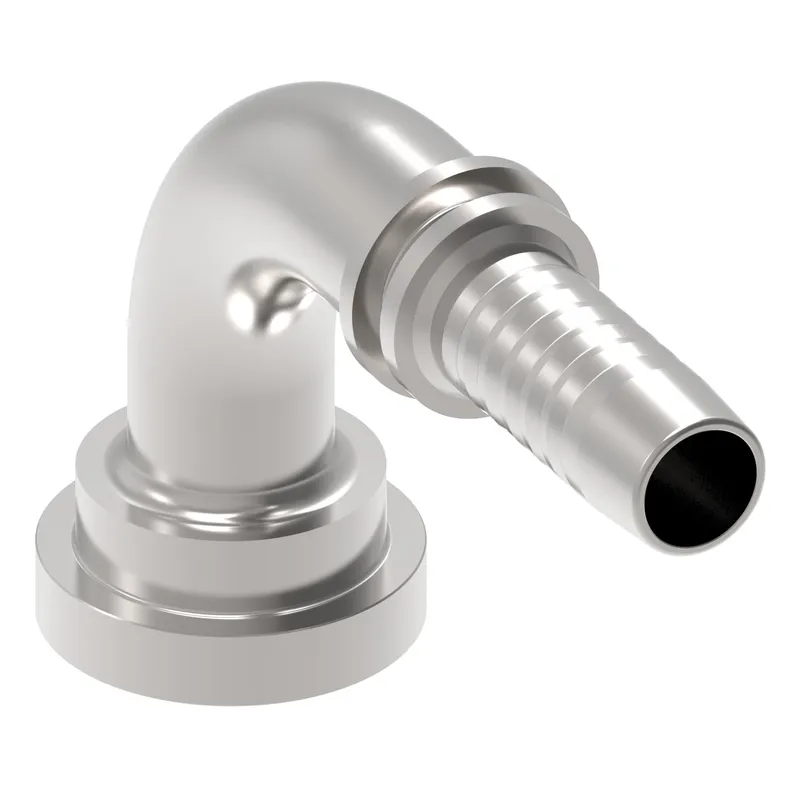

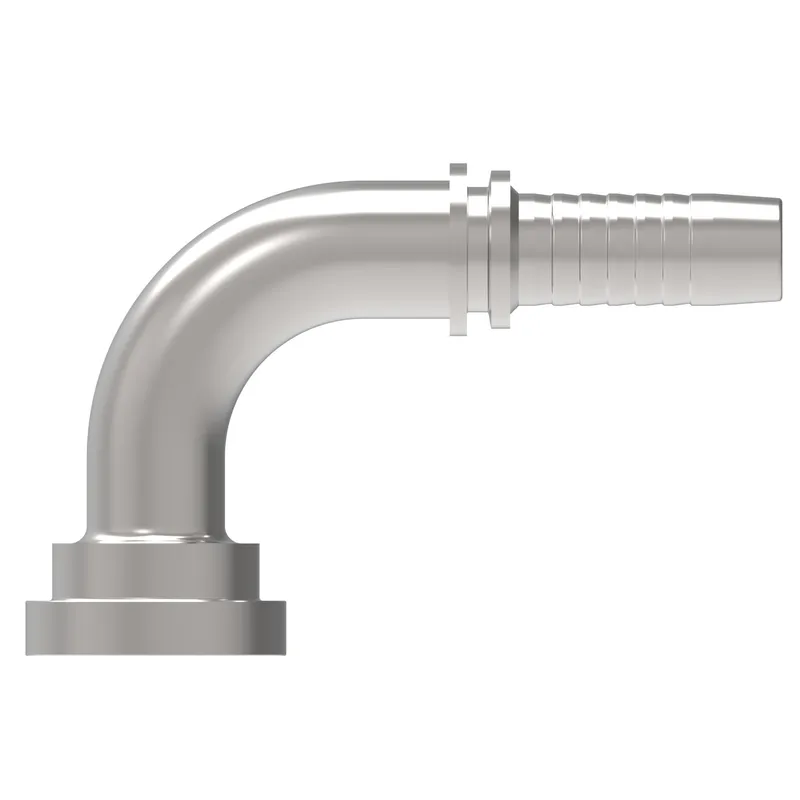

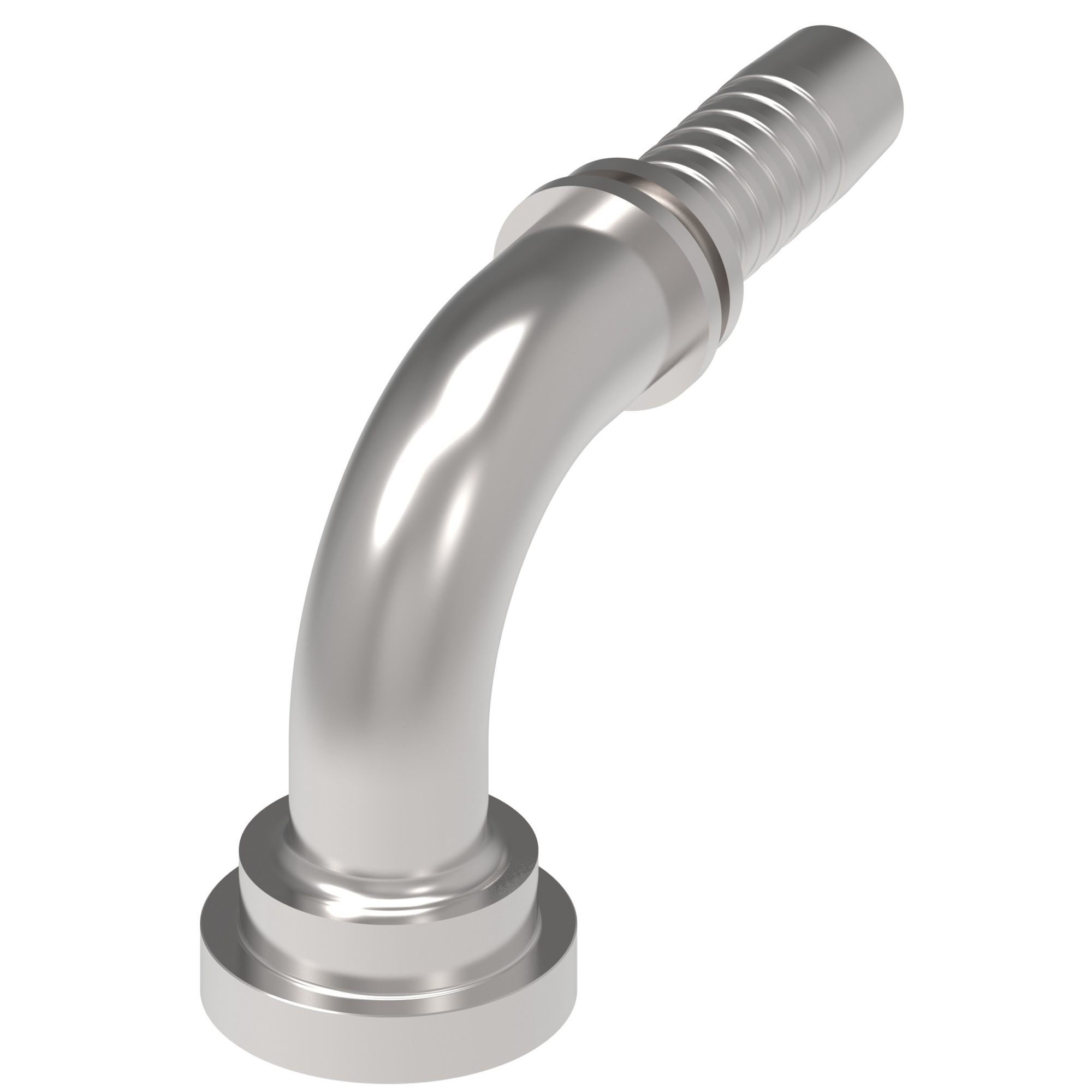

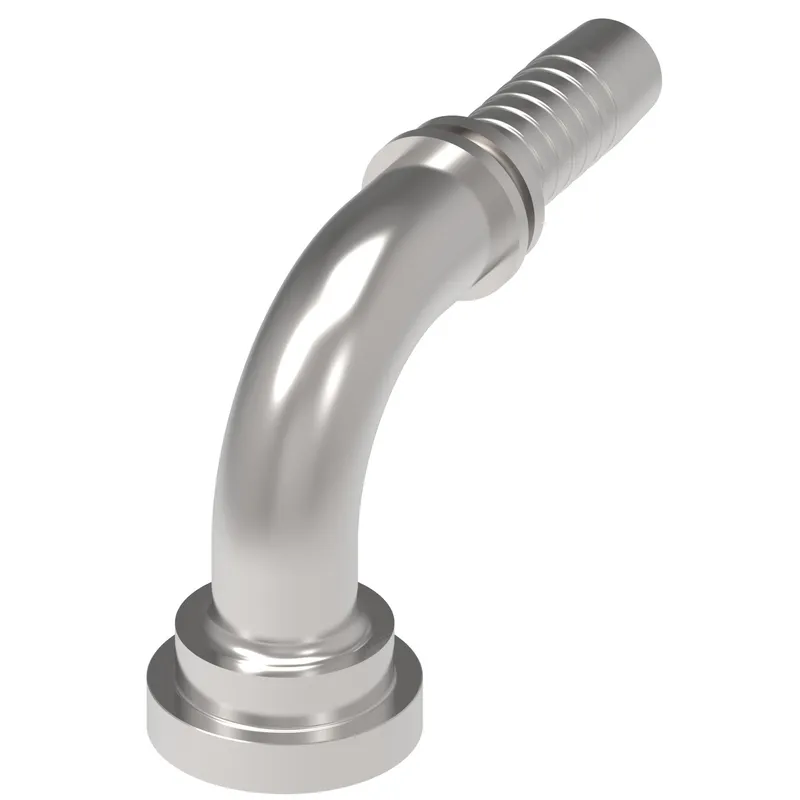

HOSE NIPPLE ASSY, 2P/10, C61/12, CS, 90D

MPN
87391-12-10Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87391-12-10Z?

Danfoss HOSE NIPPLE ASSY, 2P/10, C61/12, CS, 90D, manufacturer part number 87391-12-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.543
A dimension MM90.000
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.620
Construction StyleCrimp
Drop dimension IN2.066
Drop dimension MM52.50
End size 1-12
End Type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN2.204
Hose cut off factor MM56.000
Inside diameter IN0.472
Inside diameter MM12.000
Product height in2.480
Product height mm63.000
Product length in4.293
Product length mm109.050
Product materialCarbon steel
Product width in1.500
Product width mm38.1
Proposition 65Cancer and Reproductive Harm
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87391-12-10Z: frequently asked questions

When can 87391-12-10Z be shipped?

87391-12-10Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87391-12-10Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87391-12-10Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87391-12-10Z, subject to availability and destination.
