Danfoss 87391-08-08Z

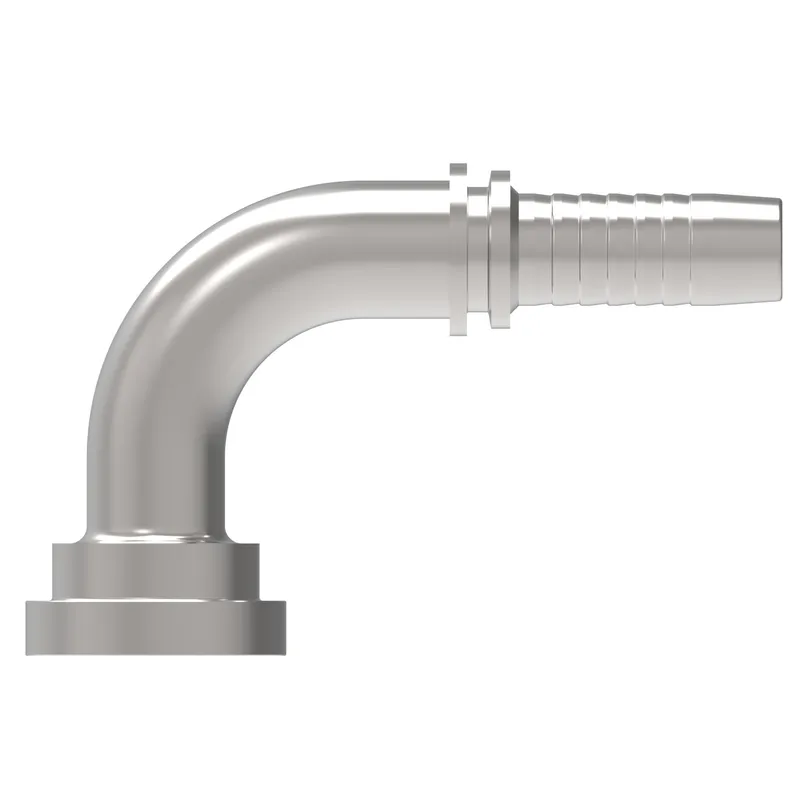

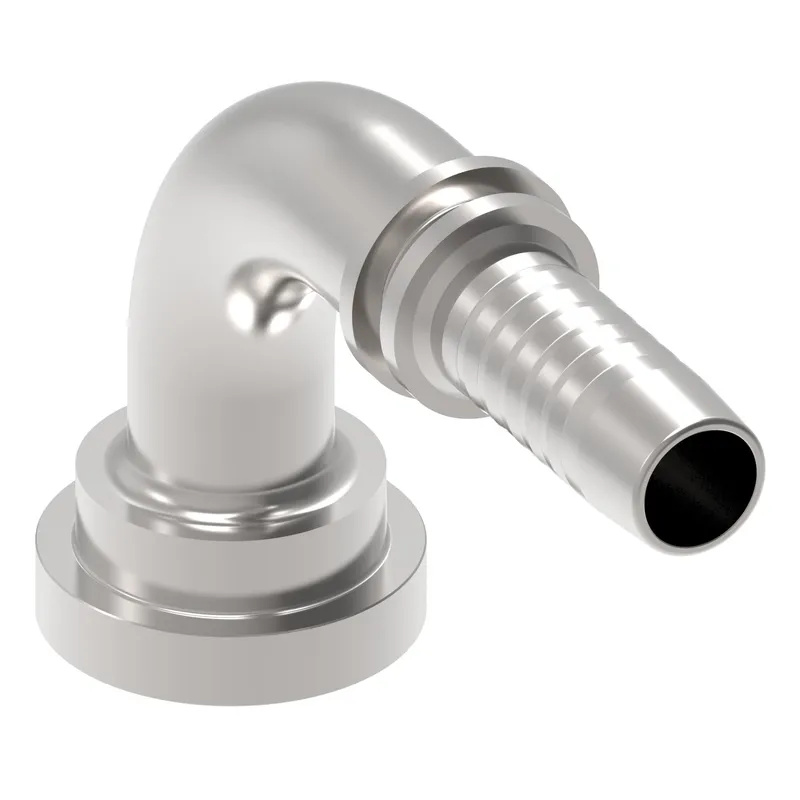

HOSE NIPPLE ASSY, 2P/08, C61/08, CS, 90D

MPN
87391-08-08Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87391-08-08Z?

Danfoss HOSE NIPPLE ASSY, 2P/08, C61/08, CS, 90D, manufacturer part number 87391-08-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.078
A dimension MM103.600
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
Drop dimension IN1.850
Drop dimension MM47.00
End size 1-8
End Type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN1.614
Hose cut off factor MM41.000
Hose size-8
Inside diameter IN0.393
Inside diameter MM10.000
Product height in2.240
Product height mm56.896
Product length in3.450
Product length mm87.630
Product materialCarbon steel
Product width in1.190
Product width mm30.226
Proposition 65Cancer and Reproductive Harm
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87391-08-08Z: frequently asked questions

When can 87391-08-08Z be shipped?

87391-08-08Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87391-08-08Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87391-08-08Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87391-08-08Z, subject to availability and destination.
