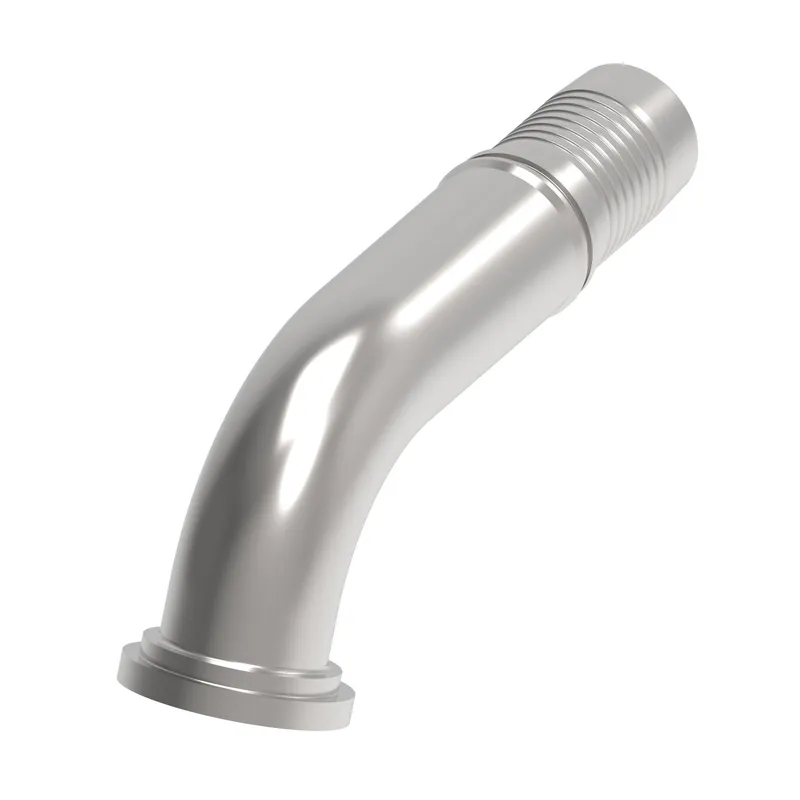

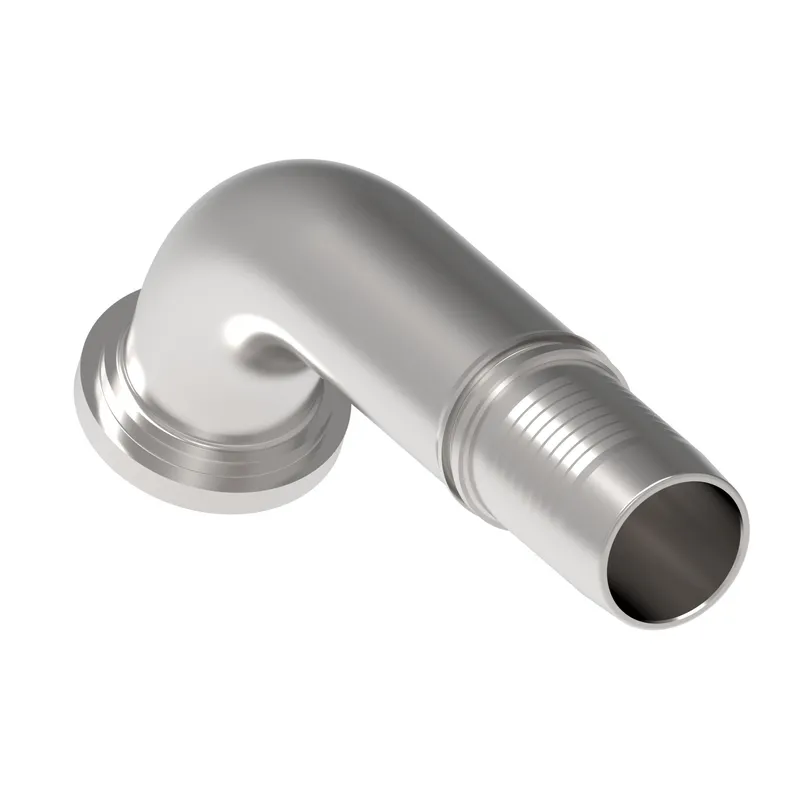

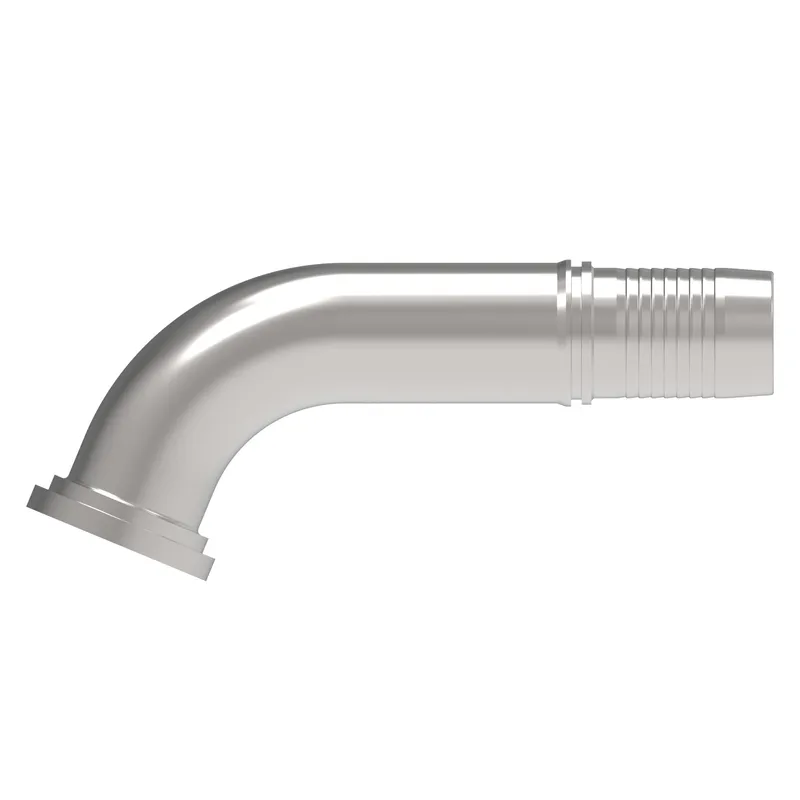

Danfoss 87371-32-32Z

HOSE NIPPLE, 2P/32, C61/32, CS, 67.5D

MPN
87371-32-32Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87371-32-32Z?

Danfoss HOSE NIPPLE, 2P/32, C61/32, CS, 67.5D, manufacturer part number 87371-32-32Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN9.527
A dimension MM242.000
Angle shape67.5 Degree
BrandWinner by Danfoss
Compatible hose ID IN2.000
Compatible hose ID MM50.800
Construction StyleCrimp
Drop dimension IN3.149
Drop dimension MM80.00
End size 1-32
End size 2-32
End Type 1Split flange code 61
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN6.692
Hose cut off factor MM170.000
Hose size-32
Inside diameter IN1.692
Inside diameter MM43.000
Product height in5.697
Product height mm144.701
Product length in10.933
Product length mm277.701
Product materialCarbon steel
Product width in2.811
Product width mm71.399
Thread sealantNo
Working pressure max BAR206
Working pressure max PSI3000

87371-32-32Z: frequently asked questions

When can 87371-32-32Z be shipped?

87371-32-32Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87371-32-32Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87371-32-32Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87371-32-32Z, subject to availability and destination.
