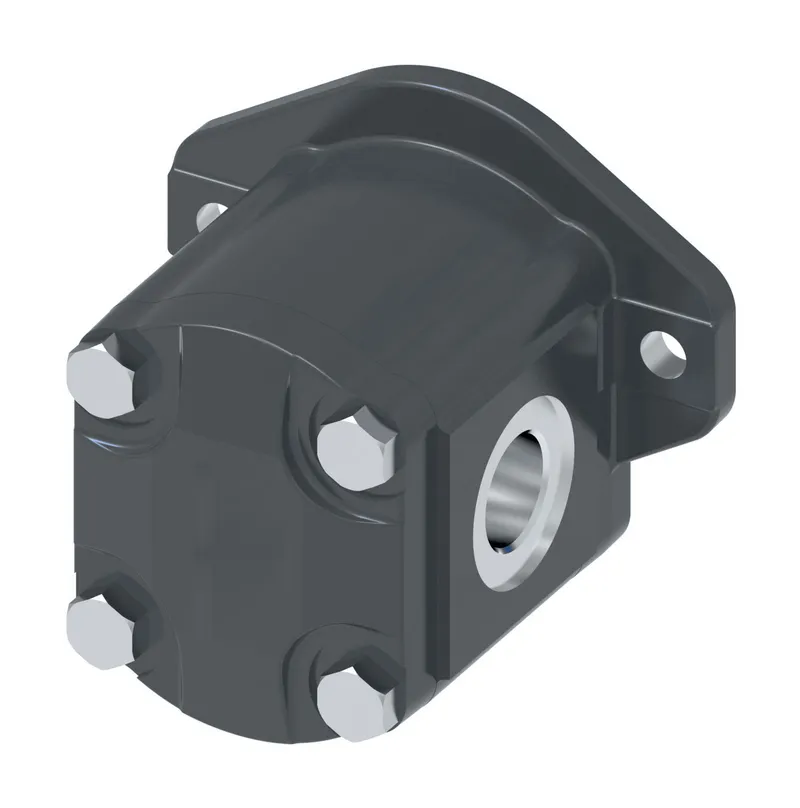

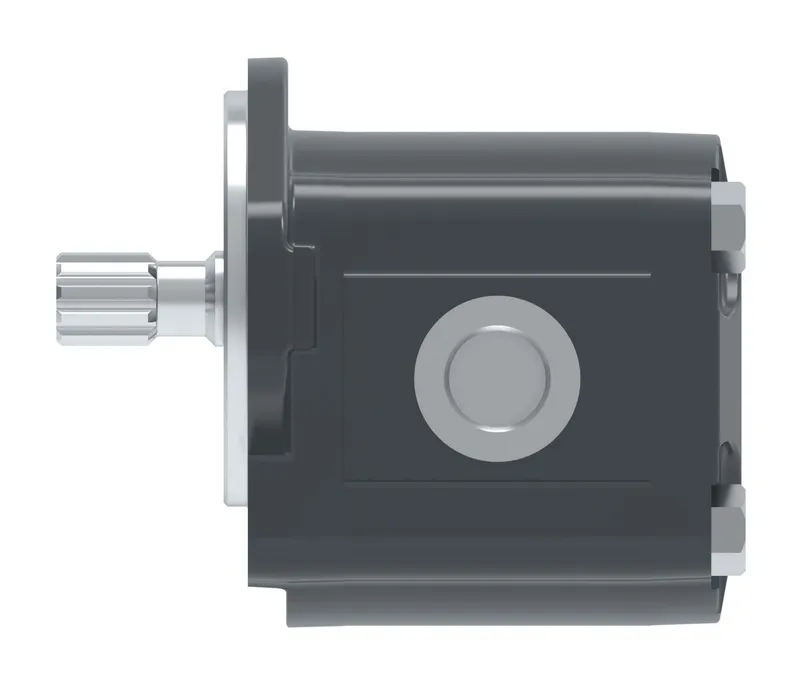

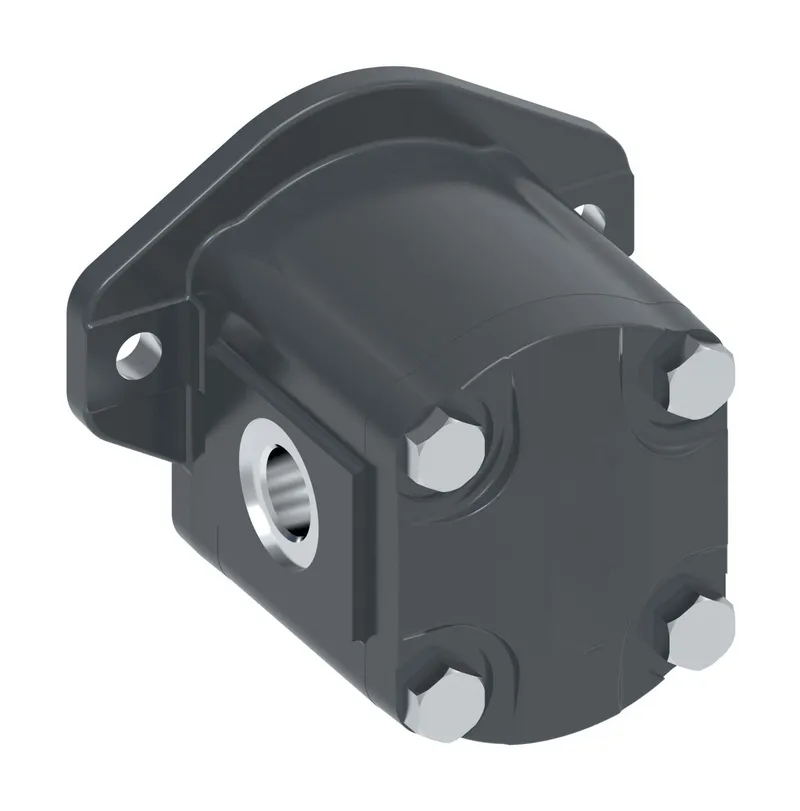

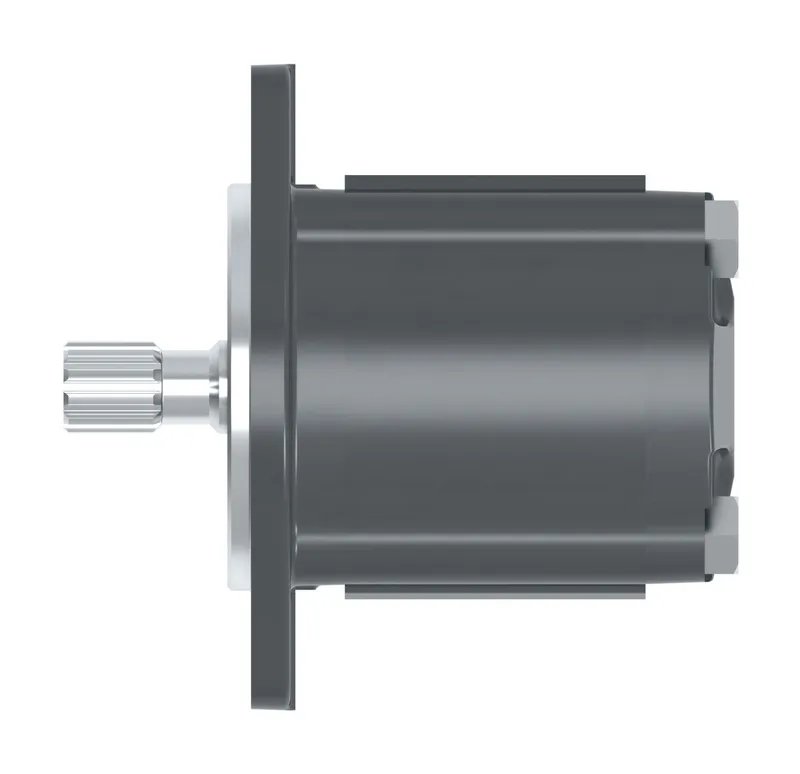

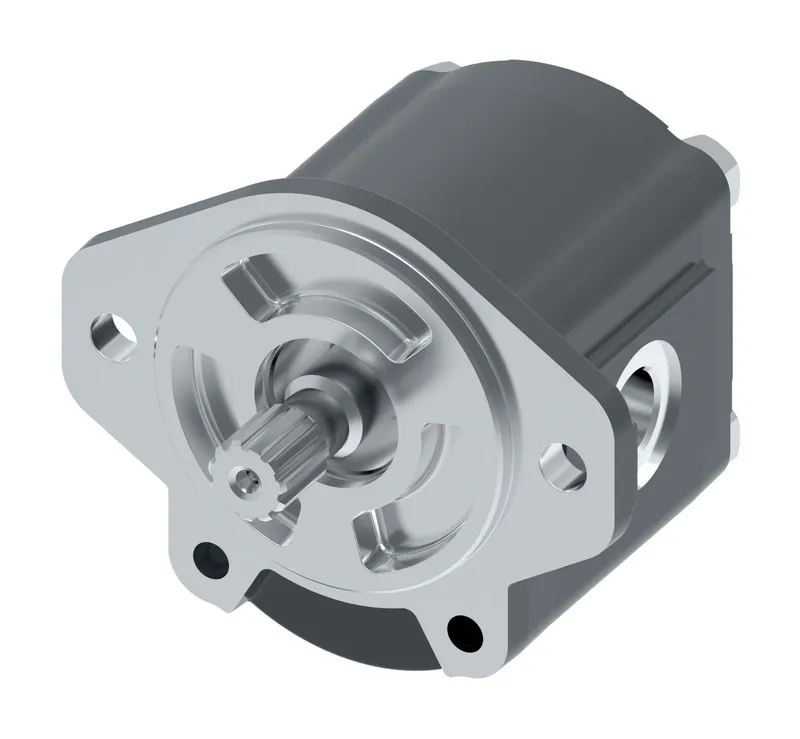

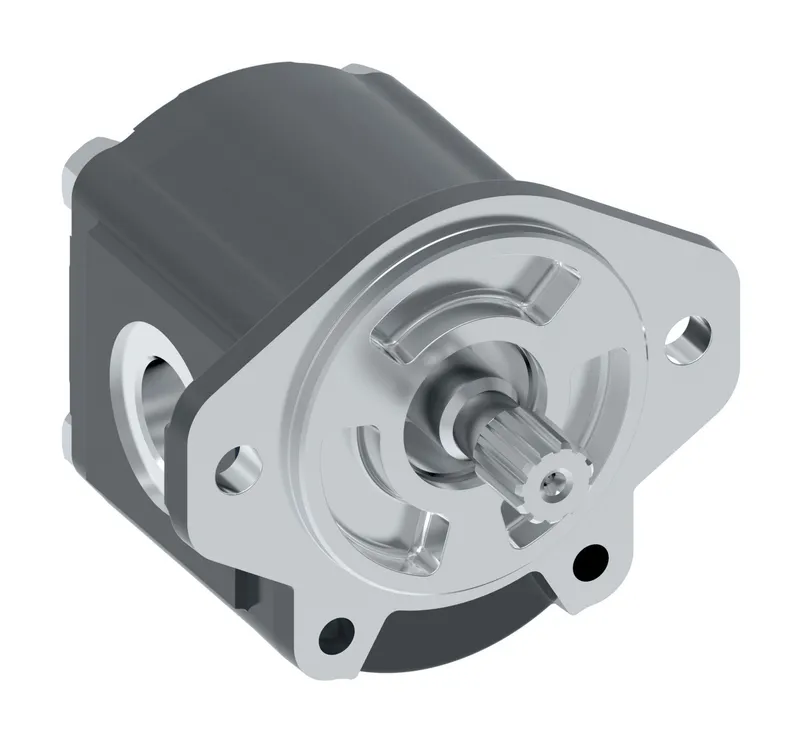

Danfoss 601AD00008C

GD5D1208AB09ATALATAJ08LA A1C

MPN: 601AD00008C
Category: Lumi aluminum gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 601AD00008C?

Danfoss GD5D1208AB09ATALATAJ08LA A1C, manufacturer part number 601AD00008C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
Design code	Third
Displacement- front	12.3 cm3/r [0.70 in3/r]
Displacement- rear	8.2 cm3/r [0.50 in3/r]
Identification	John deere with bar code
Inlet port- front	Manifold- inlet port
Inlet port- rear	Manifold- inlet port
Input shaft	Taper 1:8 on dia 16.66 [0.65], .4375-20 unf-2a, woodruff key 3 x dia 15.7 [0.12x dia 0.62], shaft ext 39.7 [1.56], pinion gear
Mounitng	SAE a 2 bolt, 82.50 [3.25] pilot dia. m10x1.5 threaded holes on 106.4 [4.19] dia. circle
Outlet port- front	M27 x 2.0-6h o-ring port
Outlet port- rear	M22 x 1.5-6h o-ring port
Paint	None
Product	External gear pump
Rotation	Left handed ccw
Size	Frame size
Special features	Two long studs
Unit type	Double
