Danfoss 601AD00005C

GD5D1811AC11AMANAMAN06LA

MPN: 601AD00005C
Category: Lumi aluminum gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 601AD00005C?

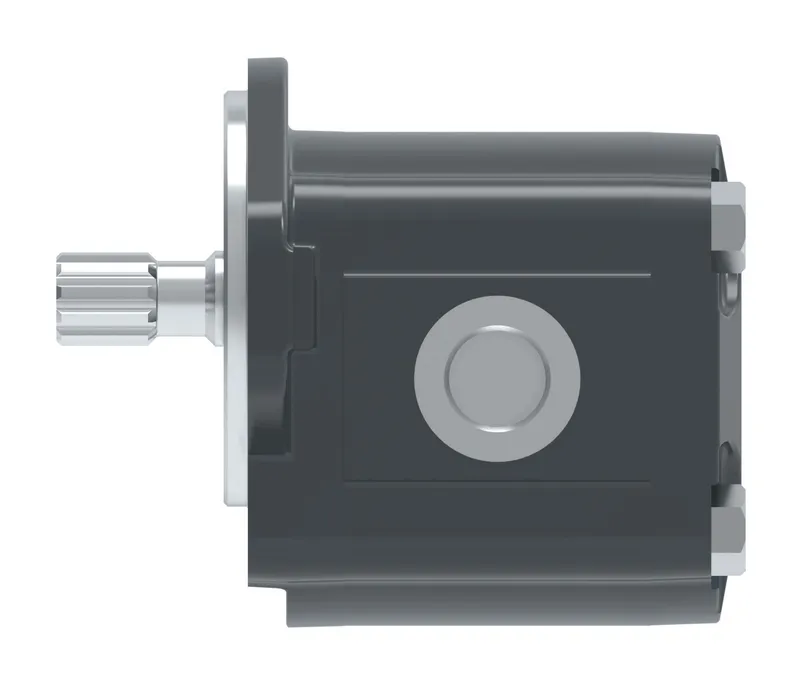

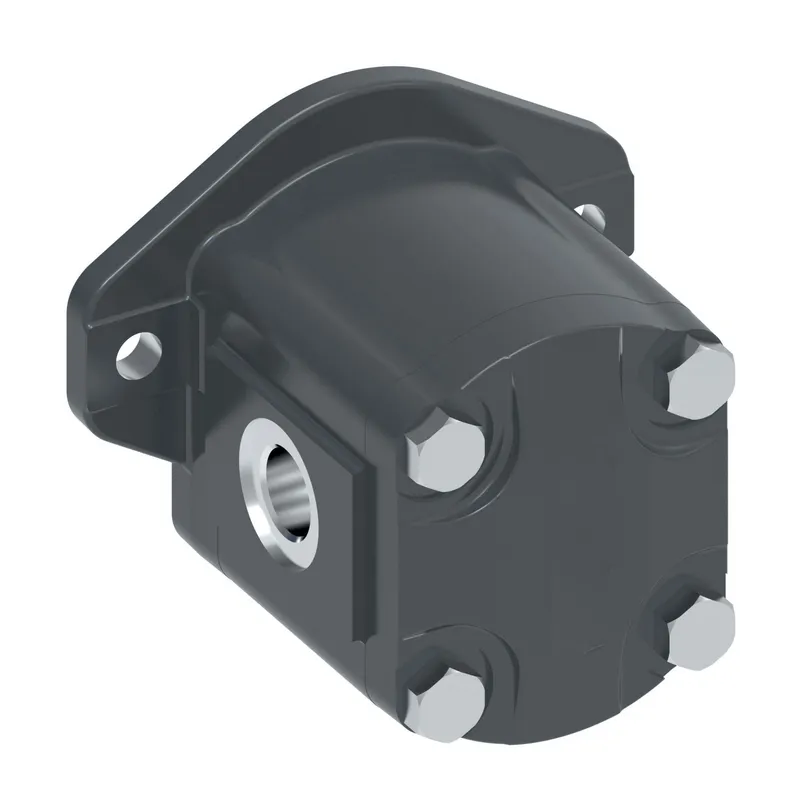

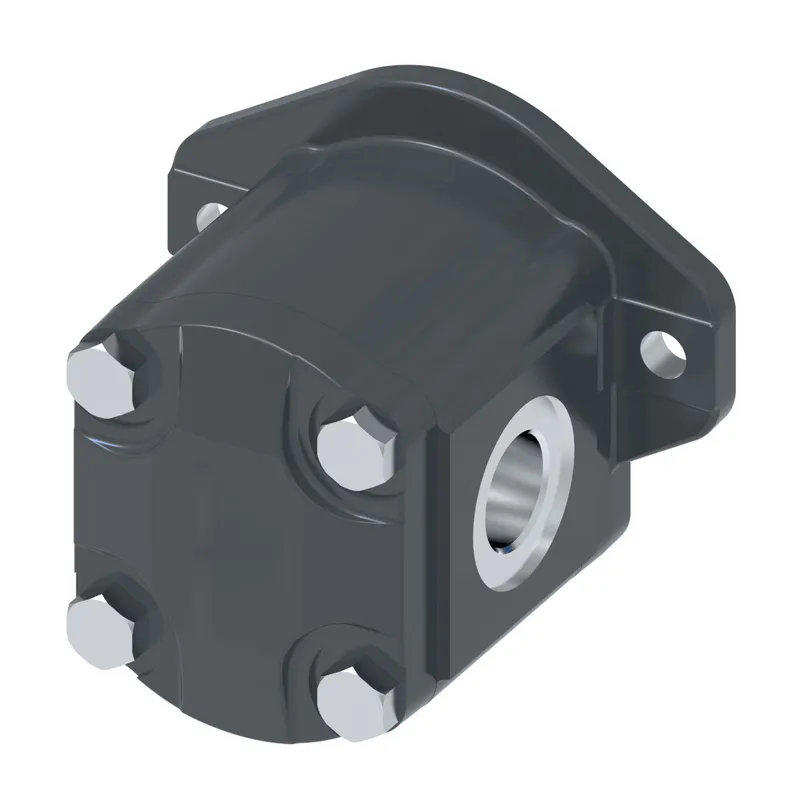

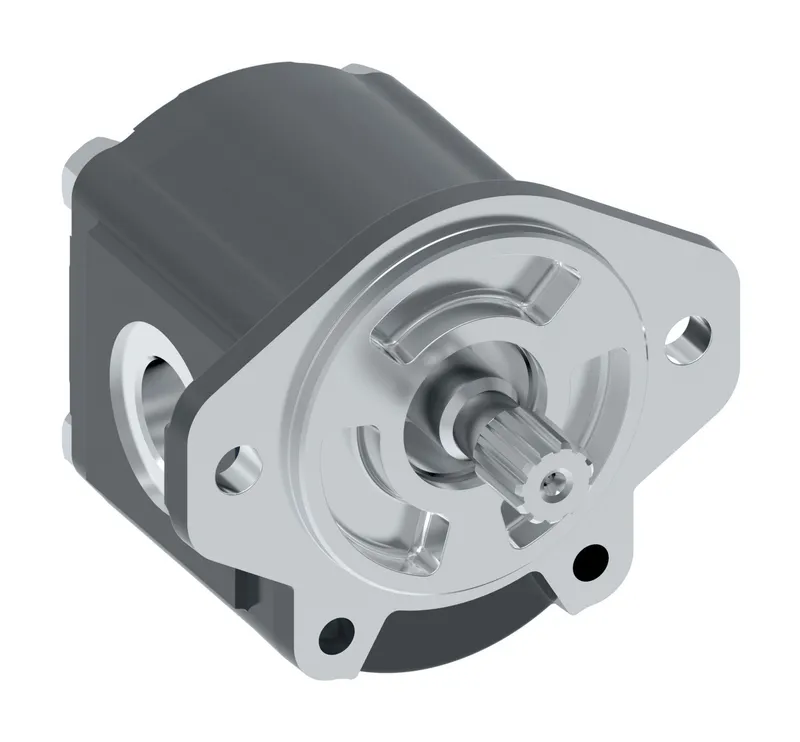

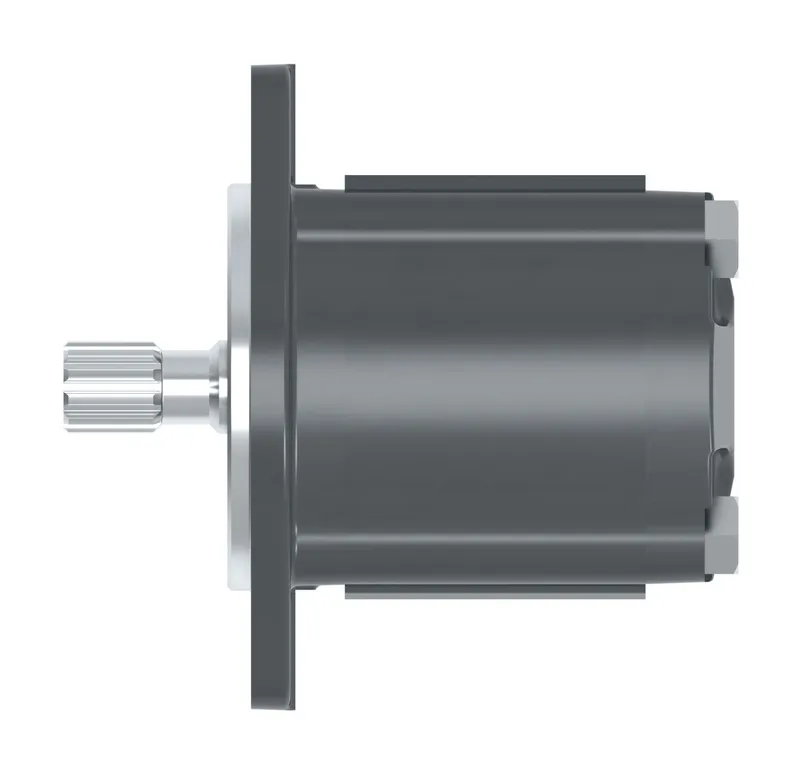

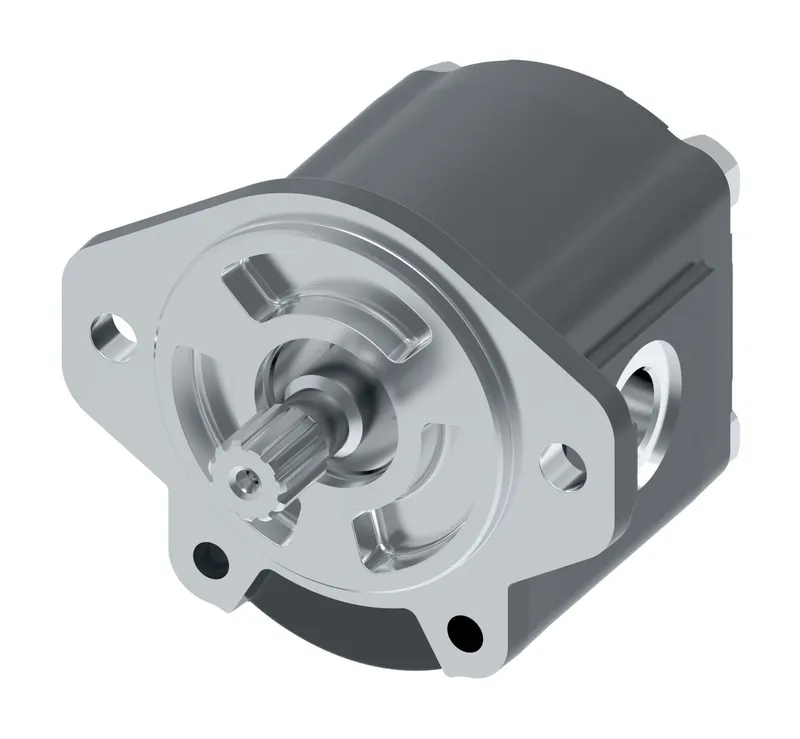

Danfoss GD5D1811AC11AMANAMAN06LA, manufacturer part number 601AD00005C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
Design code	Third
Displacement- front	18.0 cm3/r [1.09 in3/r]
Displacement- rear	11.0 cm3/r [0.67 in3/r]
Identification	None
Inlet port- front	M8 x 1.25, 40 [1.57] pcd, dia 19.0 [0.75], european flanged port- 4 bolts
Inlet port- rear	M8 x 1.25, 40 [1.57] pcd, dia 19.0 [0.75], european flanged port- 4 bolts
Input shaft	Taper 1:8 on dia 16.66 [0.65], .4375-20 unf-2a, woodruff key 3 x dia 15.7 [0.12x dia 0.62], shaft ext 46.4 [1.83]
Mounitng	SAE a 2 bolt, 82.50 [3.25] pilot dia. .375-16 unc-2b threaded holes on 106.4 [4.19] dia. circle
Outlet port- front	M6 x 1, 30.2 [1.19] pcd, dia 14.0 [0.55], european flanged port- 4 bolts
Outlet port- rear	M6 x 1, 30.2 [1.19] pcd, dia 14.0 [0.55], european flanged port- 4 bolts
Paint	None
Product	External gear pump
Rotation	Left handed ccw
Size	Frame size
Special features	Outboard thrust bearing, viton seal, sectional sealing with hardened coupler
Unit type	Double

601AD00005C: frequently asked questions

When can 601AD00005C be shipped?

601AD00005C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 601AD00005C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 601AD00005C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 601AD00005C, subject to availability and destination.
