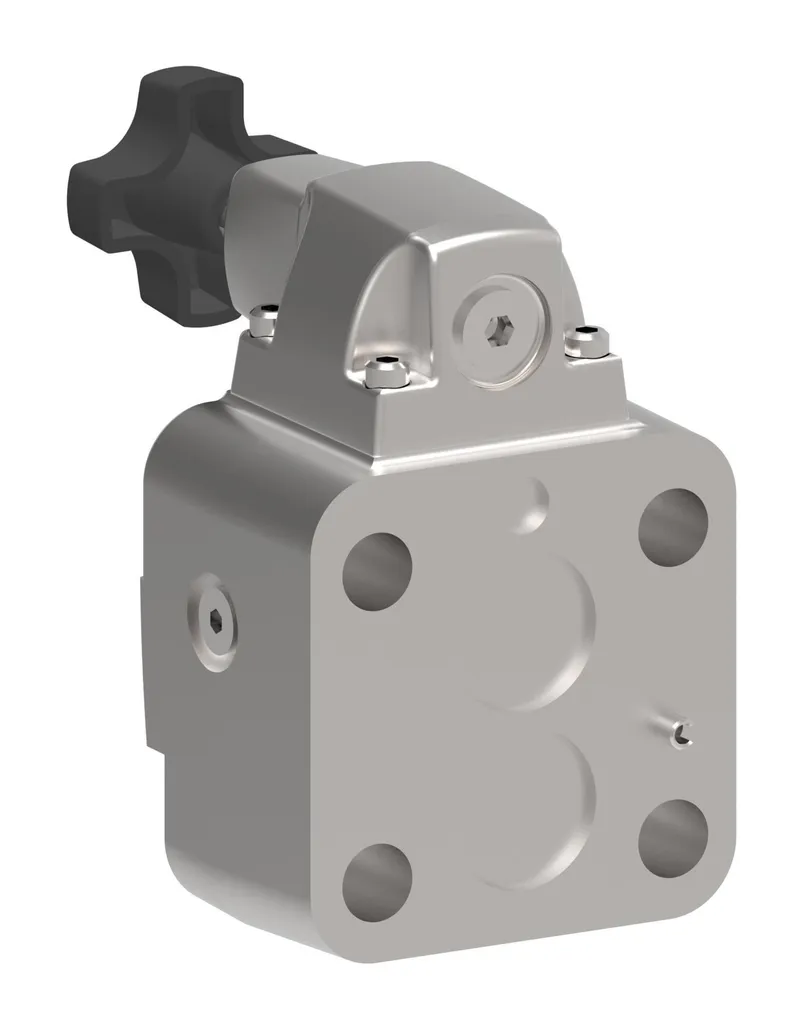

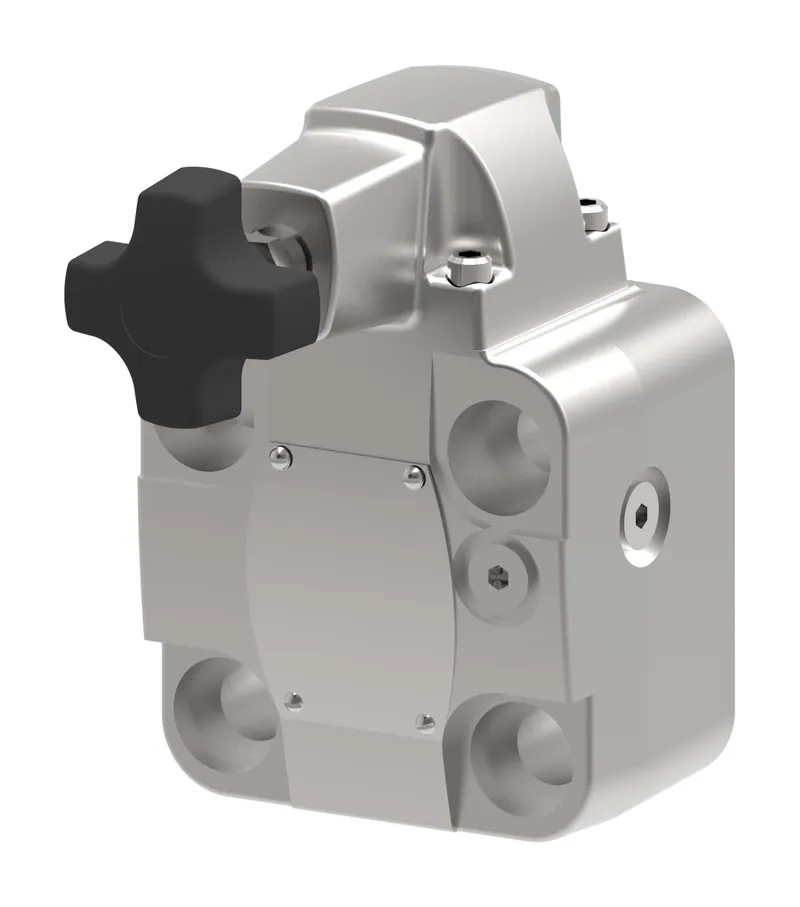

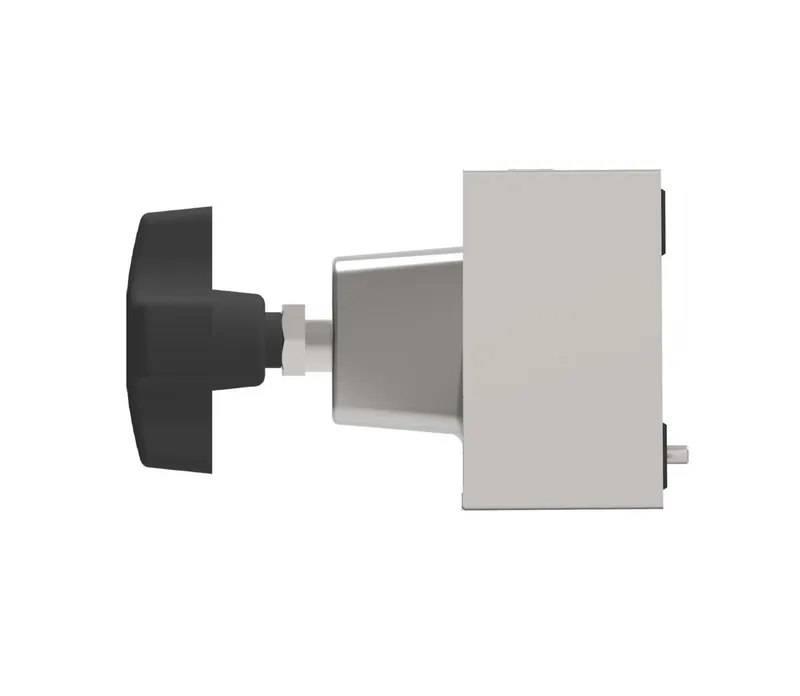

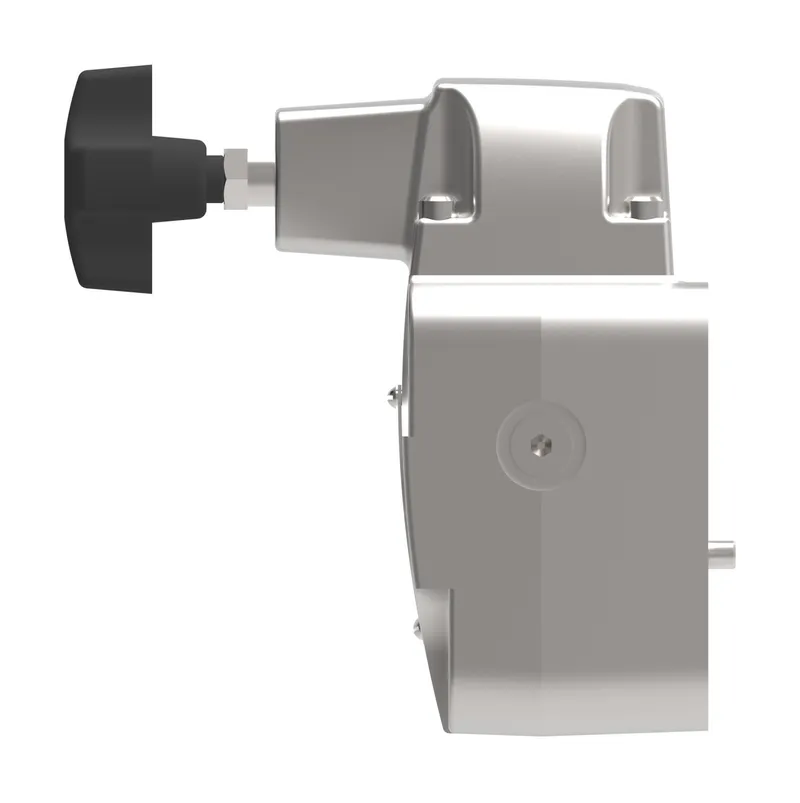

Danfoss 589506

CG-H06-FV-50, CGH06FV50

MPN: 589506
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 589506?

Danfoss CG-H06-FV-50, CGH06FV50, manufacturer part number 589506. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Manually operated
Adjustment range	100-210 bar (1500-3000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	50 Series
Electrical connection	None
Flow rate lpm	340.0
Flow rate USGPM	90.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Hi-vent spring	Yes
Indicator Light	No
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	CGH06FV50
Performance	Standard
Product height in	6.000
Product height mm	152.400
Product length in	4.000
Product length mm	101.600
Product width in	6.280
Product width mm	159.512
Seal material	Nitrile
Size	Size 06
Special feature	None
Stage	Single stage
Valve Mount Type	Subplate/manifold mounted
Valve type	Relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
