Danfoss 5644-8-10S

Cplng, 5600 SERIES MALE, STEEL

MPN
5644-8-10S
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 5644-8-10S?

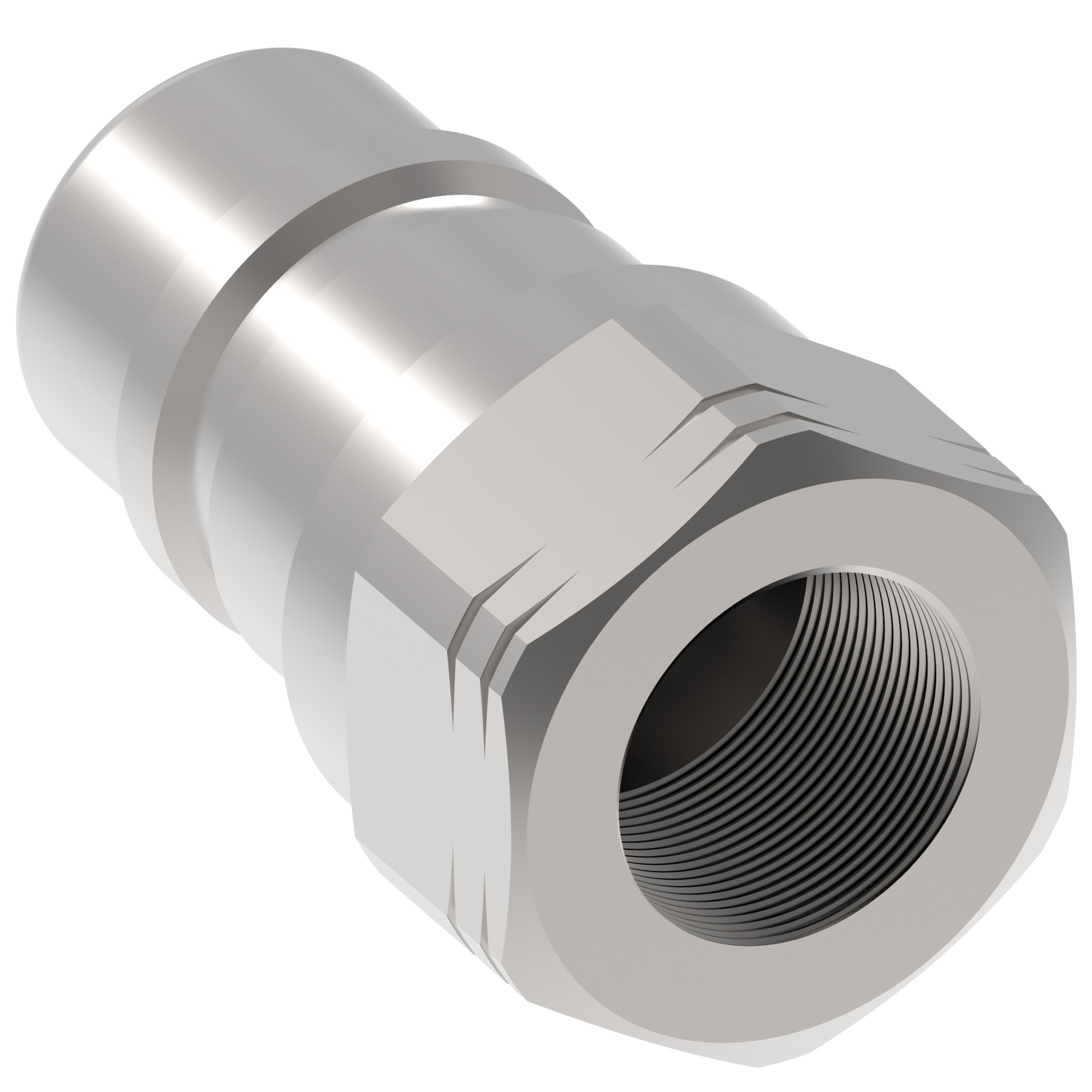

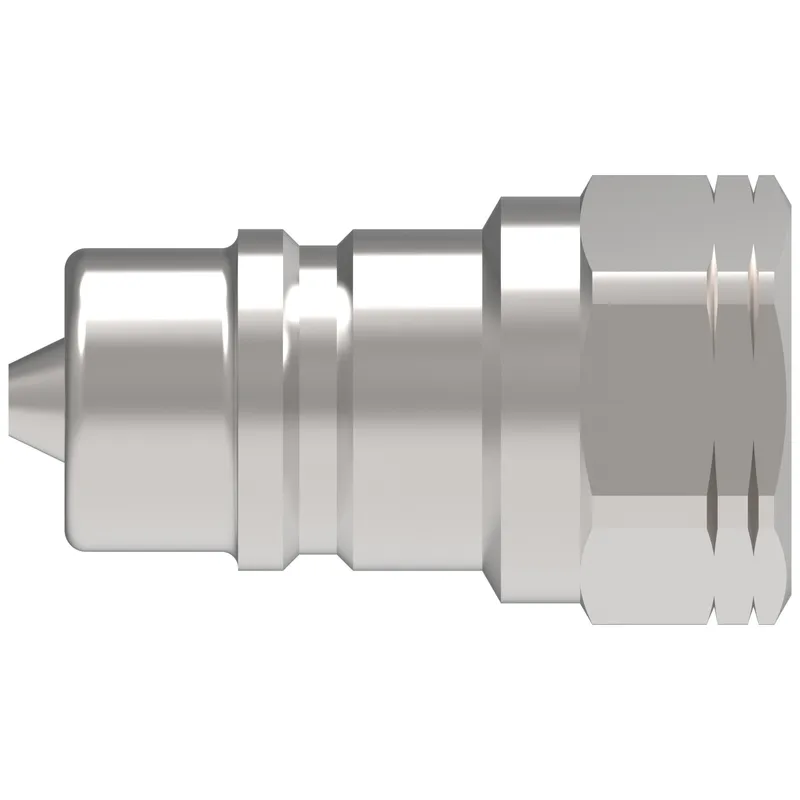

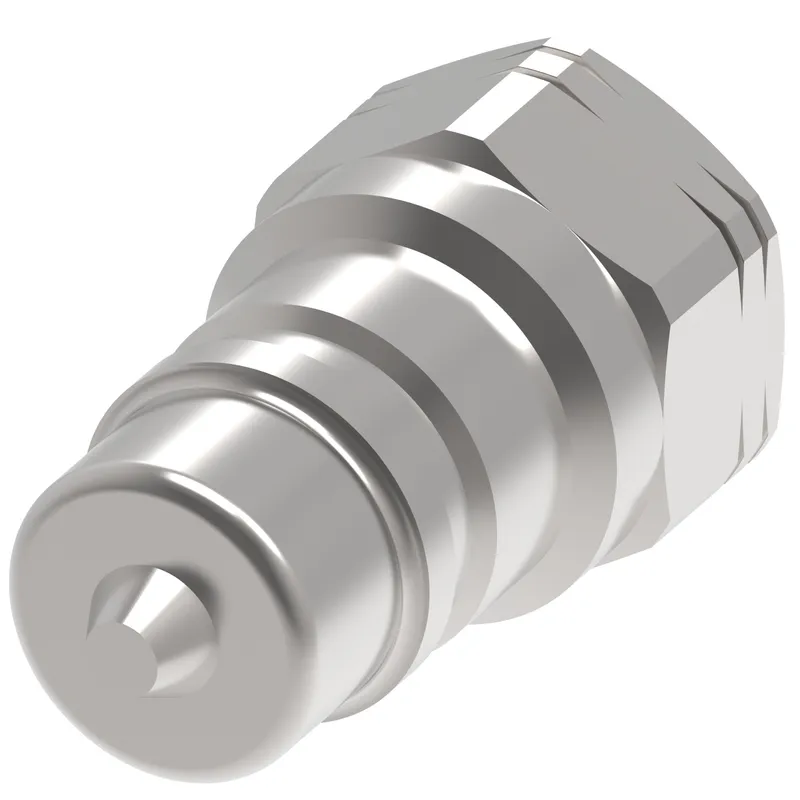

Danfoss Cplng, 5600 SERIES MALE, STEEL, manufacturer part number 5644-8-10S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146036643
Air inclusion max cc2.80
Air inclusion max in30.17
Angle shapeStraight
Body size5/8
BrandDanfoss
Burst pressure min bar827
Burst pressure min psi12000
Connection styleManual connect
End size 2-8
End type 1Male push to connect
End type 2Female Pipe (NPT)
Finish platingZinc
Flow rate GPM12.00
Flow rate LPM45.43
Fluid loss cc2.80000
Fluid loss in30.17100
Hex size 1 IN1.060
Hex size 1 MM26.924
Item typeMale half
Latch typePush/pull
Product materialCarbon steel
Seal materialEthylene propylene (EPDM)
Sub brandHansen
Valve type2 way
Working pressure max psi4000
Working pressure max BAR276
Working temperature max C121
Working temperature max F250
Working temperature min C-40
Working temperature min F-40

5644-8-10S: frequently asked questions

When can 5644-8-10S be shipped?

5644-8-10S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5644-8-10S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5644-8-10S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5644-8-10S, subject to availability and destination.
