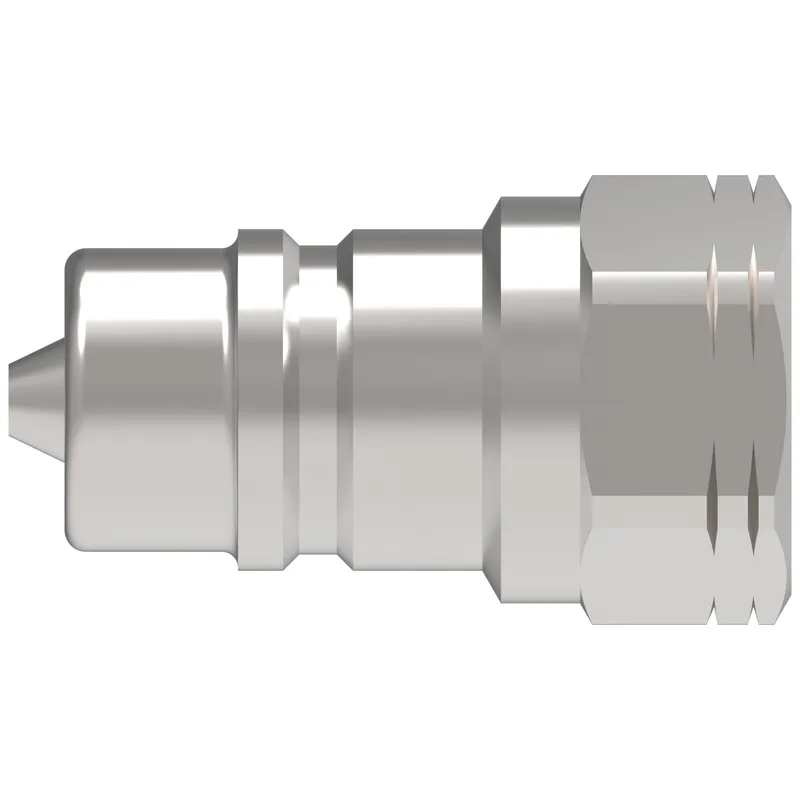

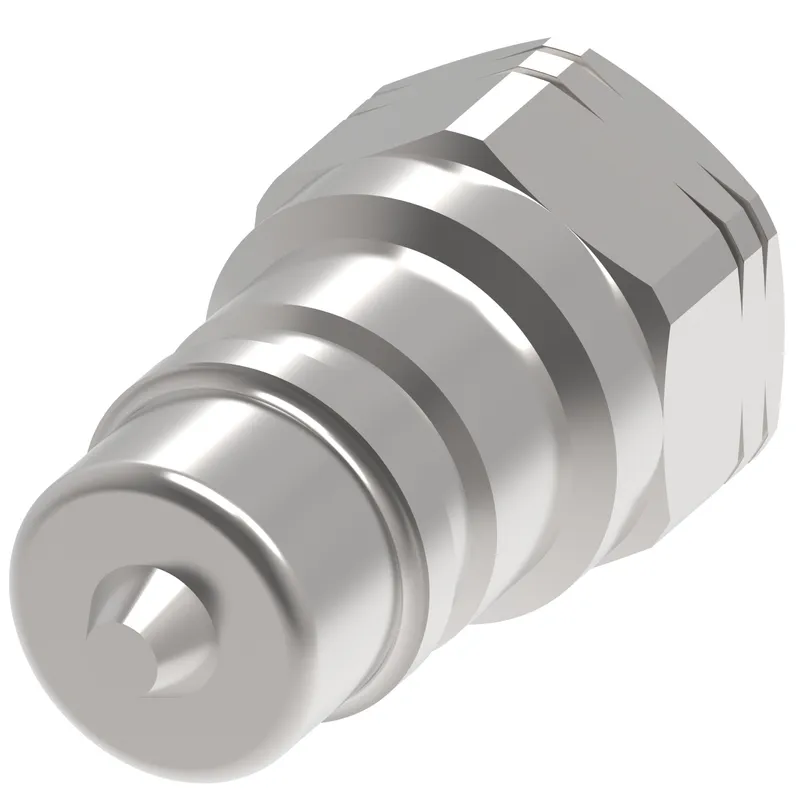

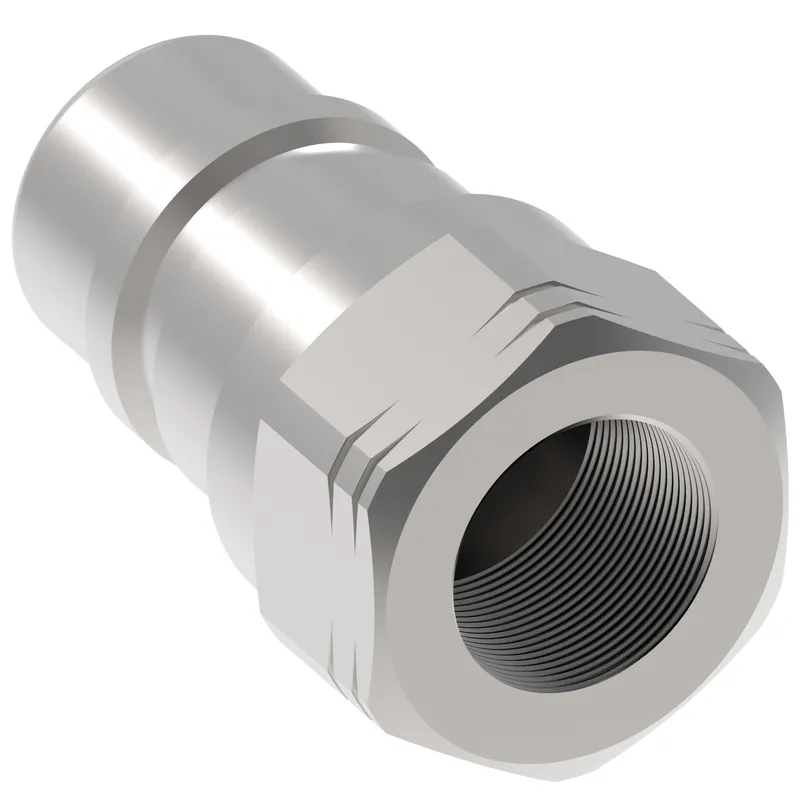

Danfoss 5644-12-12S

Cplng, 5600 SERIES MALE, STEEL

MPN
5644-12-12S
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 5644-12-12S?

Danfoss Cplng, 5600 SERIES MALE, STEEL, manufacturer part number 5644-12-12S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146036612
Air inclusion max cc10.00
Air inclusion max in30.61
Angle shapeStraight
Body size3/4
BrandDanfoss
Burst pressure min bar827
Burst pressure min psi12000
Connection styleManual connect
End size 2-12
End type 1Male push to connect
End type 2Female Pipe (NPT)
Finish platingZinc
Flow rate GPM28.00
Flow rate LPM105.99
Fluid loss cc8.20000
Fluid loss in30.50000
Hex size 1 IN1.380
Hex size 1 MM35.052
Item typeMale half
Latch typePush/pull
Product materialCarbon steel
Seal materialEthylene propylene (EPDM)
Sub brandHansen
Valve type2 way
Working pressure max psi4000
Working pressure max BAR276
Working temperature max C121
Working temperature max F250
Working temperature min C-40
Working temperature min F-40
