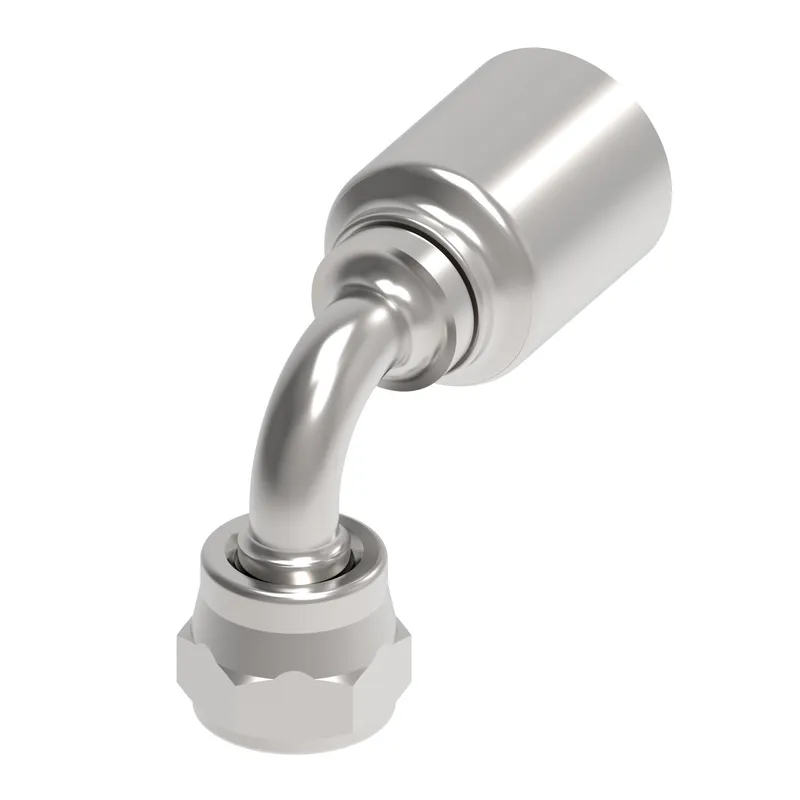

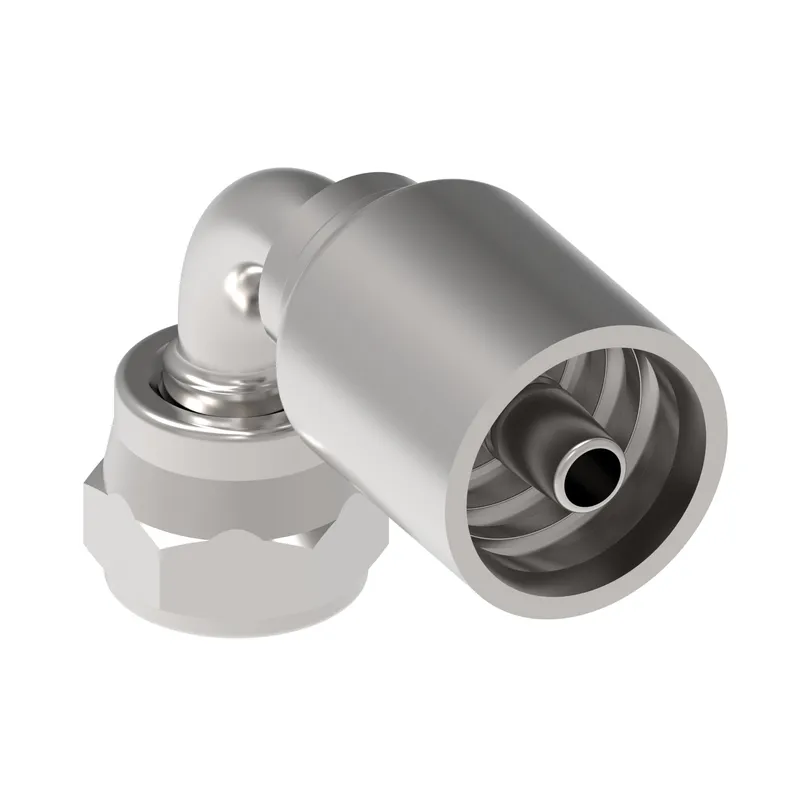

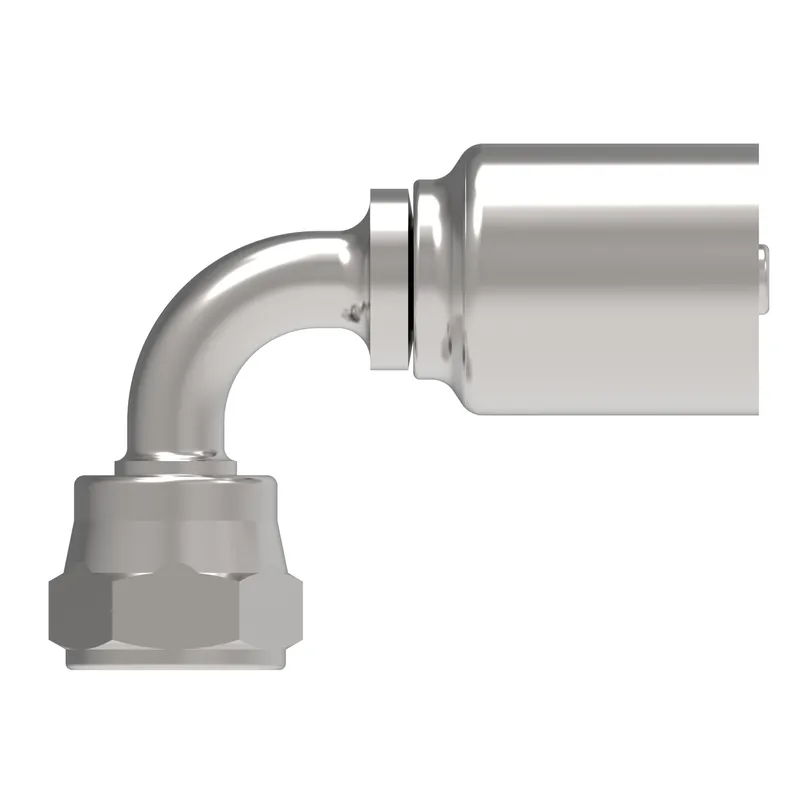

Danfoss 4T6BFB6

HOSE FTG, 4T/06, BF/06, CS, 90D

MPN: 4T6BFB6
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T6BFB6?

Danfoss HOSE FTG, 4T/06, BF/06, CS, 90D, manufacturer part number 4T6BFB6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789352361
A dimension IN	2.360
A dimension MM	59.800
Angle shape	90 Degree
Application	Chemical, Fluid transfer, Food and beverage, Injection moulding, Marine, Medical, Pressure washing, Steam cleaning
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.525
Construction Style	Crimp
Drop dimension IN	1.380
Drop dimension MM	35.00
End size 1	-6
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hose cut off factor IN	1.250
Hose cut off factor MM	31.600
Hose size	-6
Inside diameter IN	0.2500
Inside diameter MM	6.2000
Product height in	1.968
Product height mm	50.000
Product length in	2.677
Product length mm	68.000
Product material	Carbon steel
Product width in	1.063
Product width mm	27.000 mm
Thread sealant	No
Thread size 1	G 3/8
Working pressure max BAR	330.00
Working pressure max PSI	4800.00

4T6BFB6: frequently asked questions

When can 4T6BFB6 be shipped?

4T6BFB6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4T6BFB6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4T6BFB6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4T6BFB6, subject to availability and destination.
