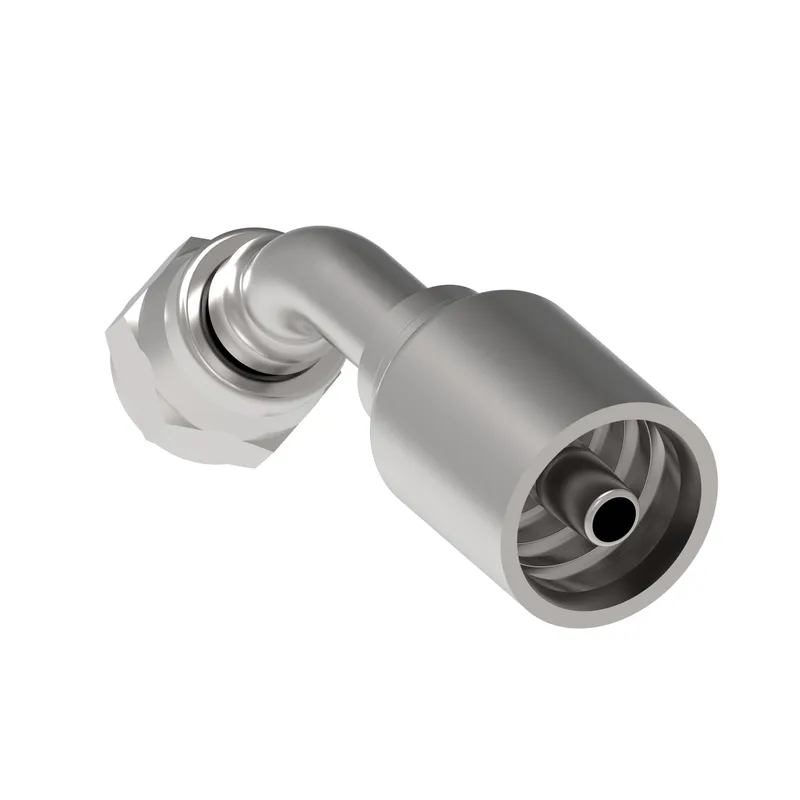

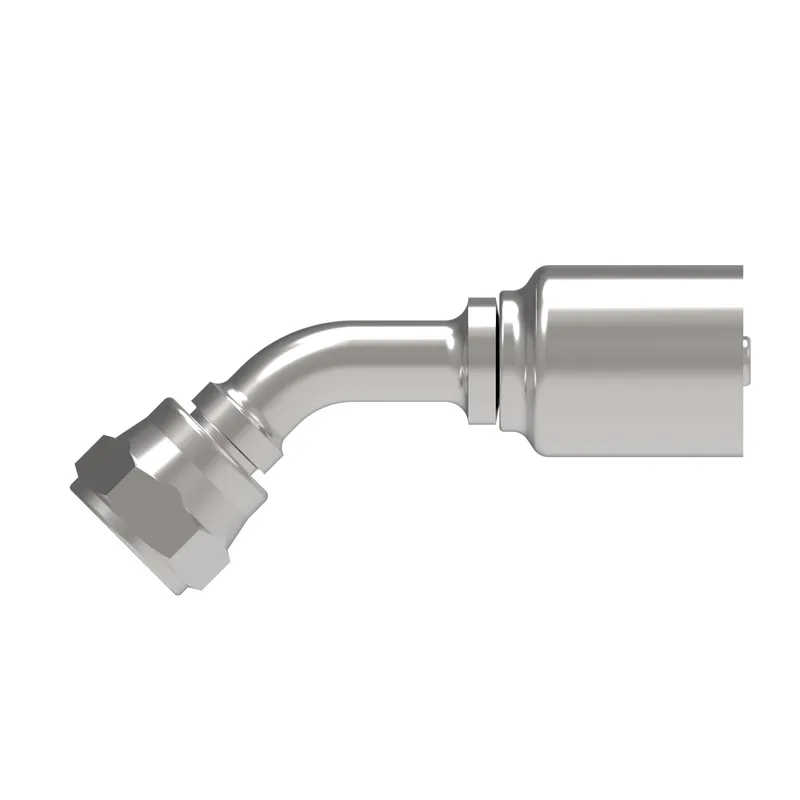

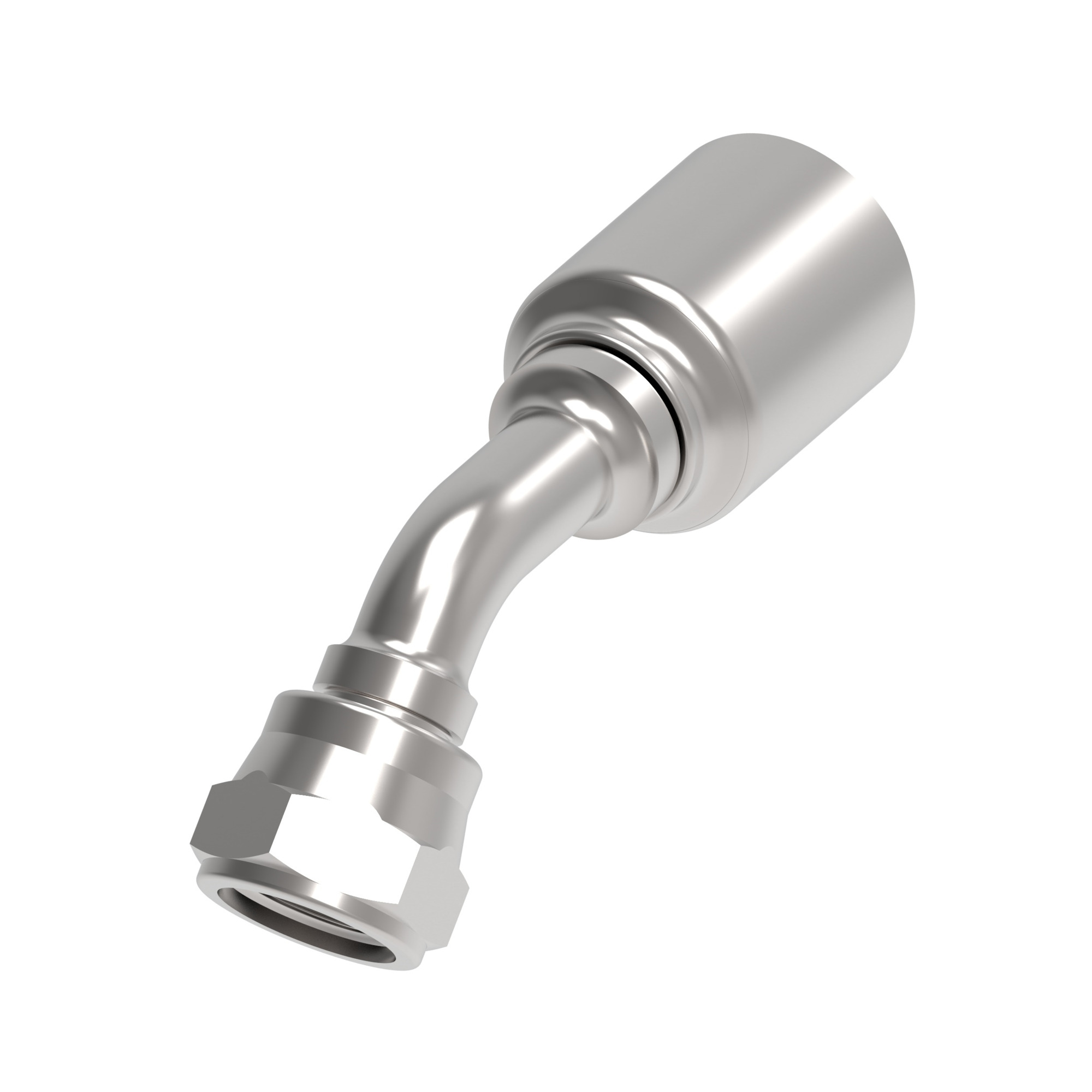

Danfoss 4T6BFA6

HOSE FTG, 4T/06, BF/06, CS, 45D

MPN: 4T6BFA6
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T6BFA6?

Danfoss HOSE FTG, 4T/06, BF/06, CS, 45D, manufacturer part number 4T6BFA6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.910
A dimension MM	73.800
Angle shape	45 Degree
Application	Chemical, Fluid transfer, Food and beverage, Injection moulding, Marine, Medical, Pressure washing, Steam cleaning
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.652
Construction Style	Crimp
Drop dimension IN	0.750
Drop dimension MM	19.00
End size 1	-6
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hose cut off factor IN	1.910
Hose cut off factor MM	48.500
Hose size	-6
Inside diameter IN	0.2500
Inside diameter MM	6.2000
Product height in	1.660
Product height mm	42.164
Product length in	3.340
Product length mm	84.836
Product material	Carbon steel
Product width in	0.960
Product width mm	24.384 mm
Thread sealant	No
Thread size 1	G 3/8
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
