Danfoss 4T6BFA4

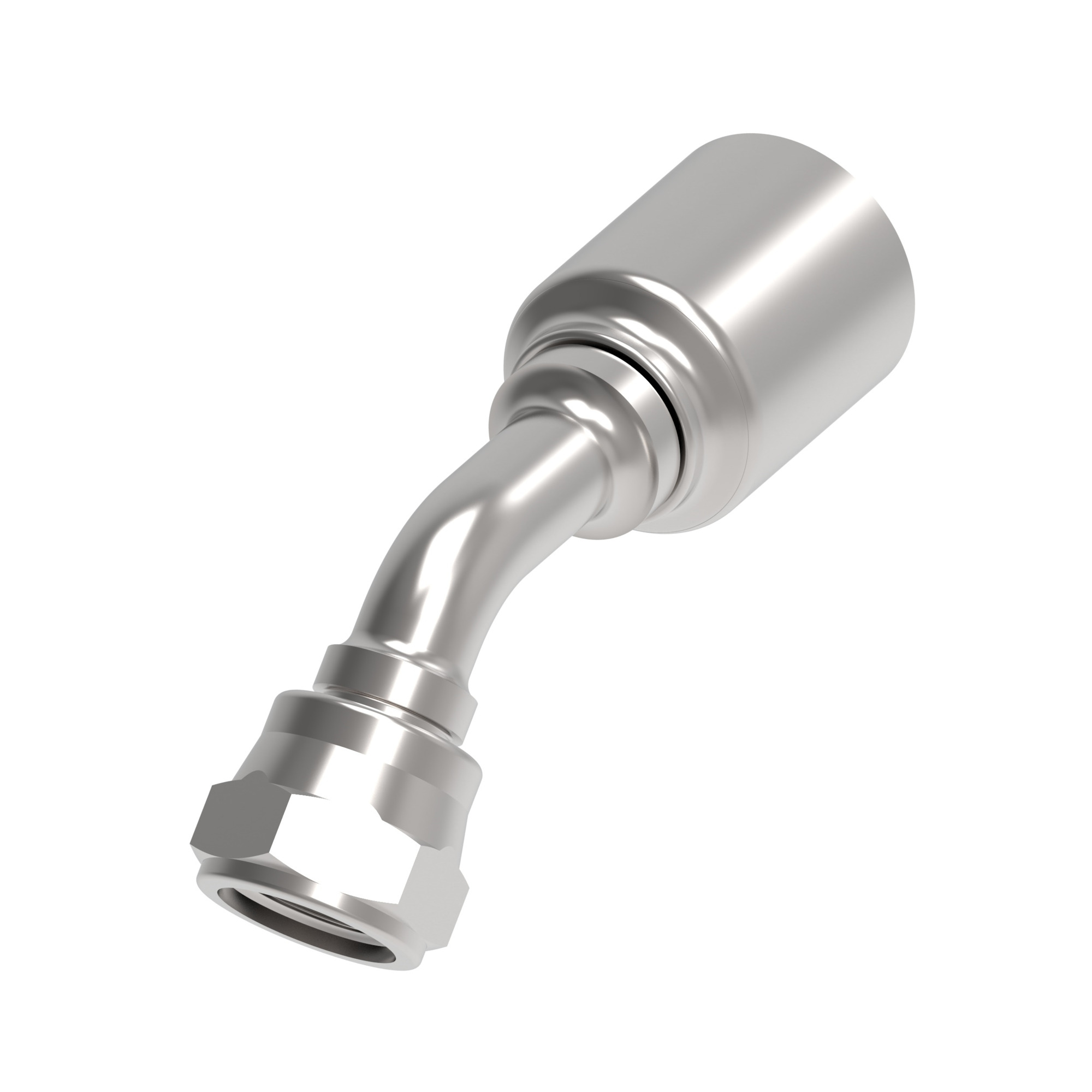

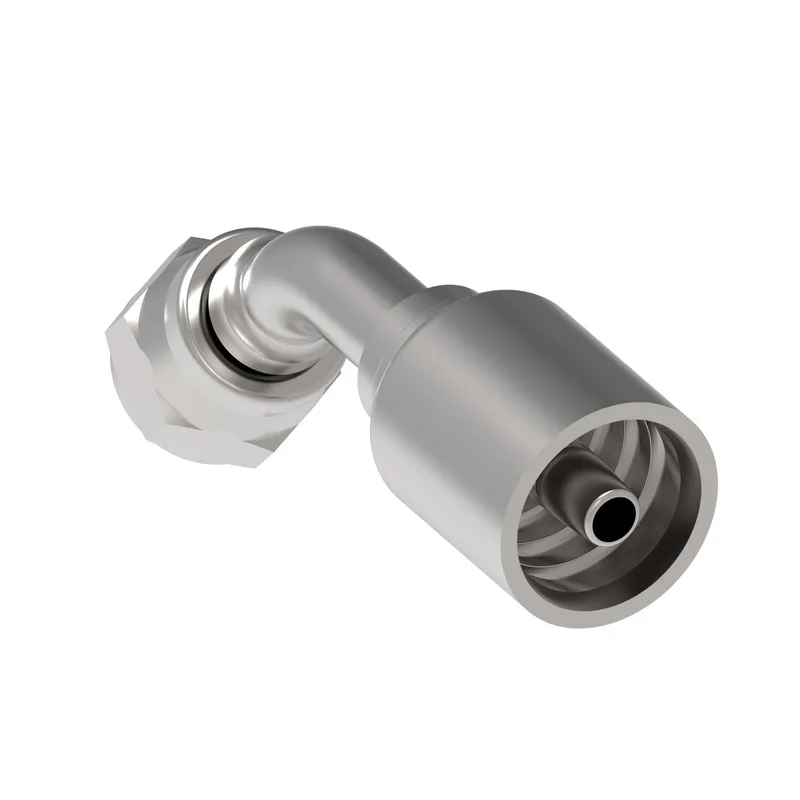

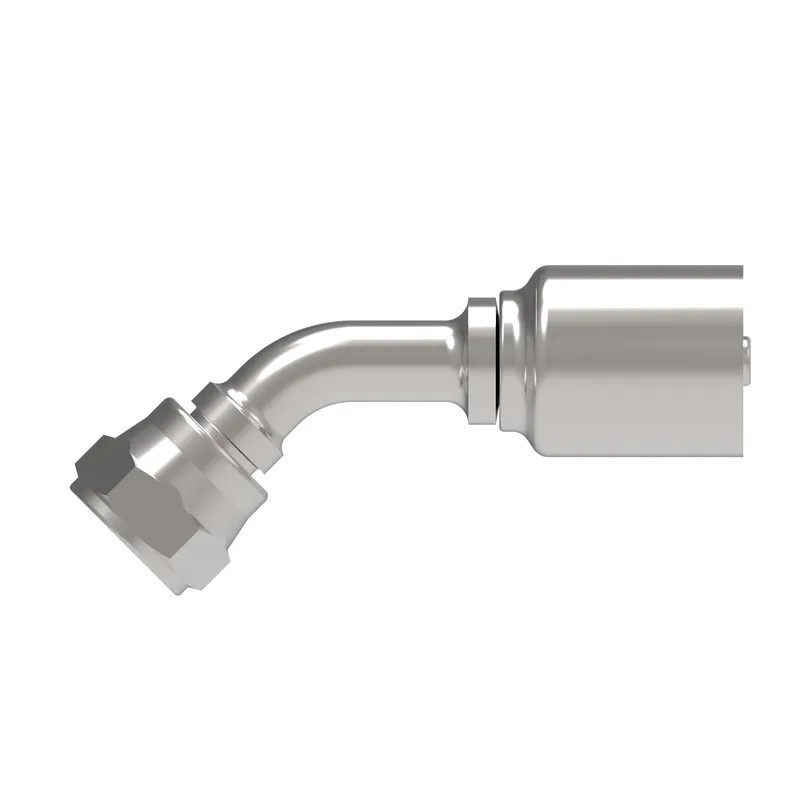

HOSE FTG, 4T/04, BF/06, CS, 45D

MPN: 4T6BFA4
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T6BFA4?

Danfoss HOSE FTG, 4T/04, BF/06, CS, 45D, manufacturer part number 4T6BFA4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.500
A dimension MM	63.400
Angle shape	45 Degree
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.250
Construction Style	Crimp
Drop dimension IN	0.660
Drop dimension MM	16.80
End size 1	-6
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hose cut off factor IN	1.570
Hose cut off factor MM	40.000
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	1.500
Product height mm	38.100
Product length in	3.010
Product length mm	76.454
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098 mm
Thread sealant	No
Thread size 1	G 3/8
Working pressure max BAR	330
Working pressure max PSI	4800
