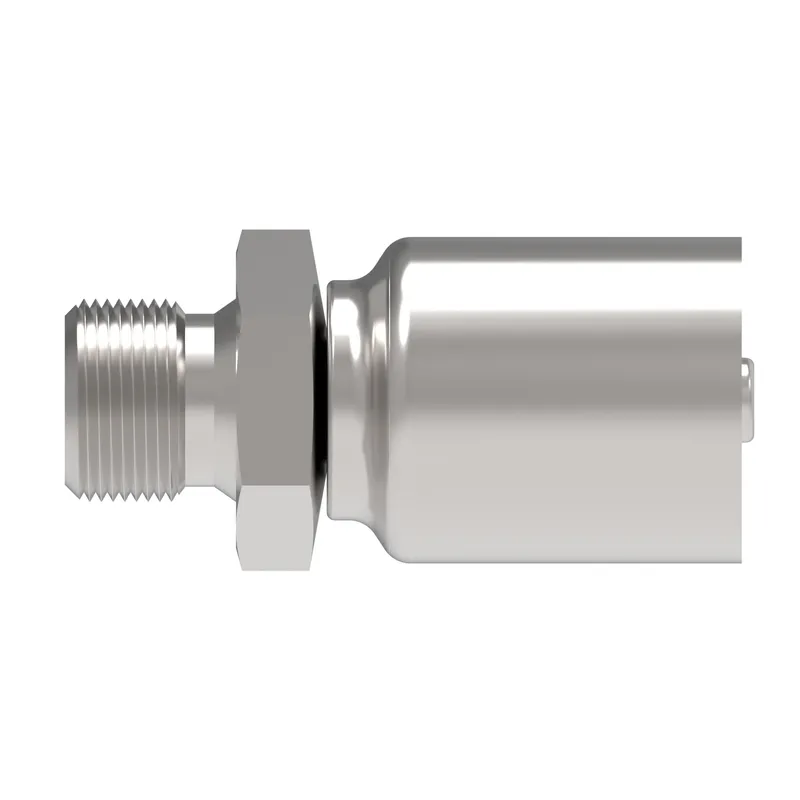

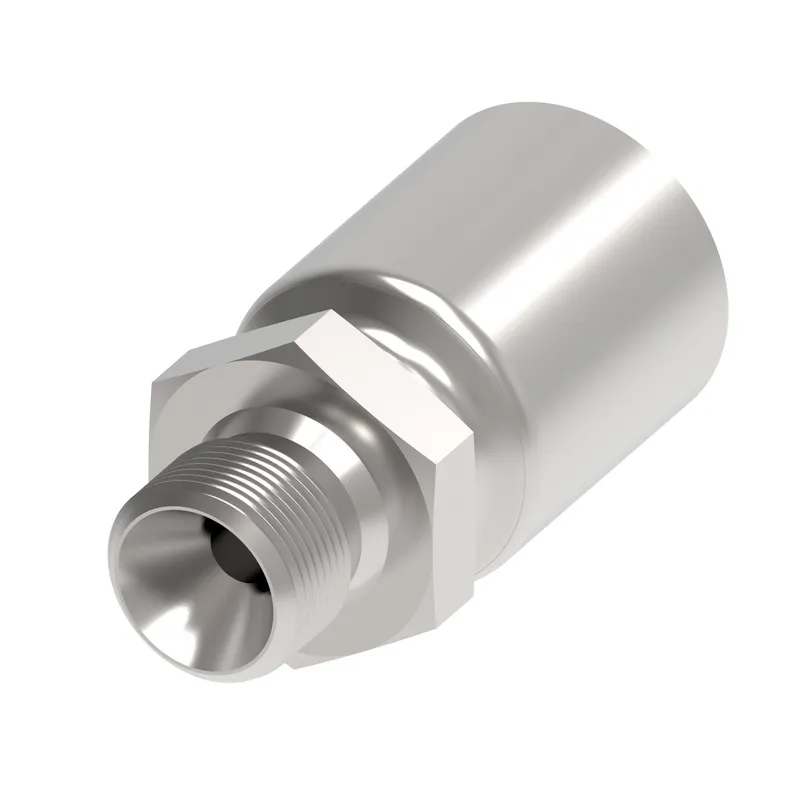

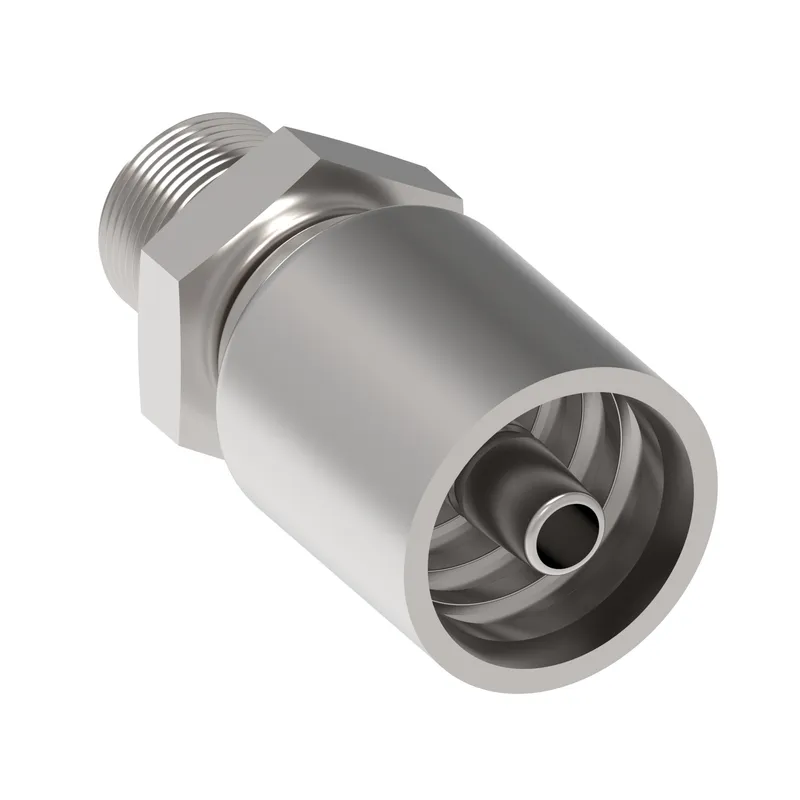

HOSE FTG, 4T/04, BSPJ/04, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 4T4BP4 be shipped?
4T4BP4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4T4BP4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4T4BP4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4T4BP4, subject to availability and destination.
Danfoss HOSE FTG, 4T/04, BSPJ/04, CS, STR, manufacturer part number 4T4BP4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.740 |
| A dimension MM | 44.300 |
| Angle shape | Straight |
| Brand | Synflex Optimum by Danfoss |
| Compatible hose ID IN | 0.250 |
| Compatible hose ID MM | 6.350 |
| Construction Style | Crimp |
| End size 1 | -4 |
| End type 1 | Male BSPP 60 degree cone |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 0.748 |
| Hex size 1 MM | 19.000 |
| Hose cut off factor IN | 0.820 |
| Hose cut off factor MM | 20.900 |
| Hose size | -4 |
| Inside diameter IN | 0.170 |
| Inside diameter MM | 4.200 |
| Product height in | 0.748 |
| Product height mm | 19.000 |
| Product length in | 1.744 |
| Product length mm | 44.300 |
| Product material | Carbon steel |
| Product width in | 0.748 |
| Product width mm | 19.000 mm |
| Thread sealant | No |
| Thread size 1 | G 1/4 |
| Working pressure max BAR | 450 |
| Working pressure max PSI | 6550 |
