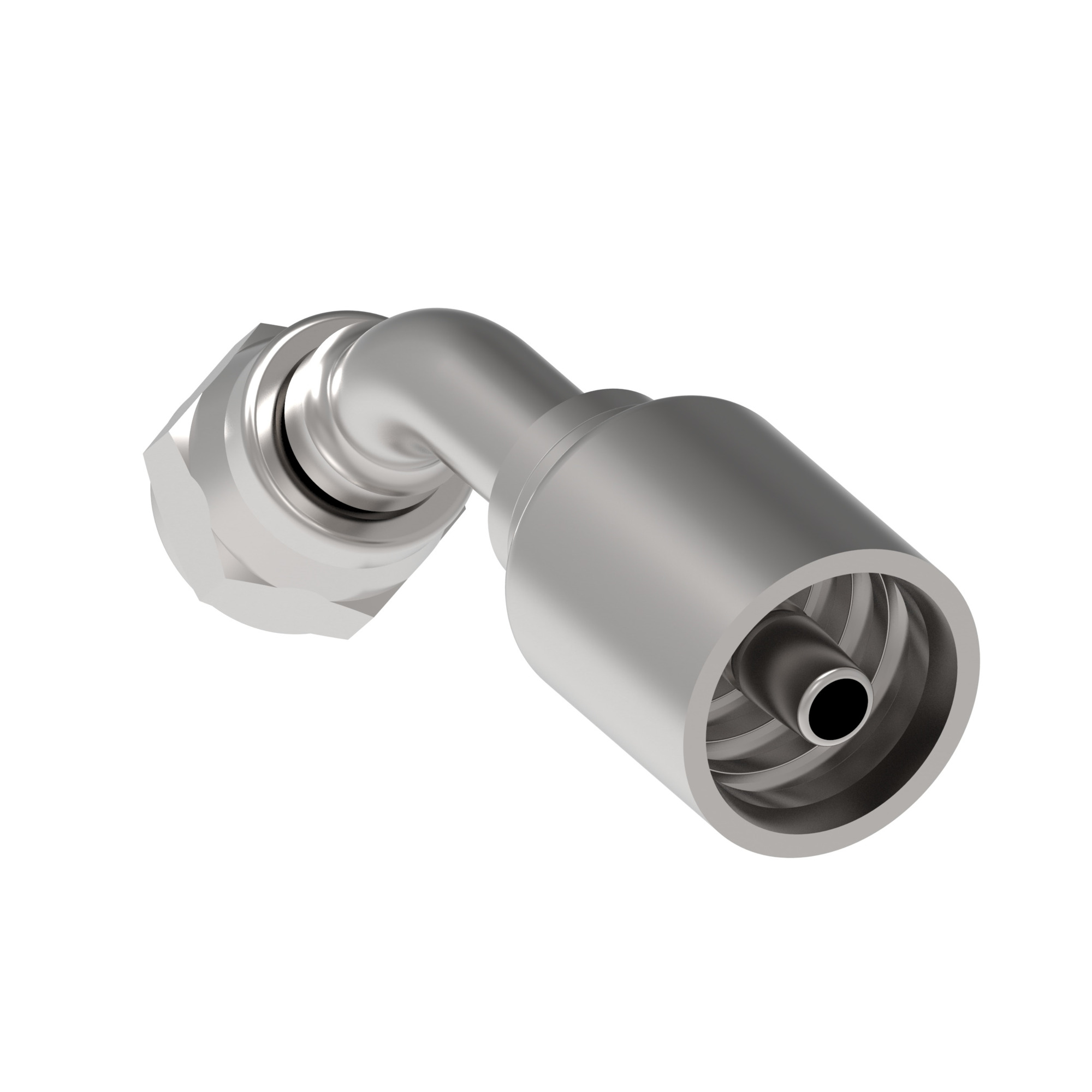

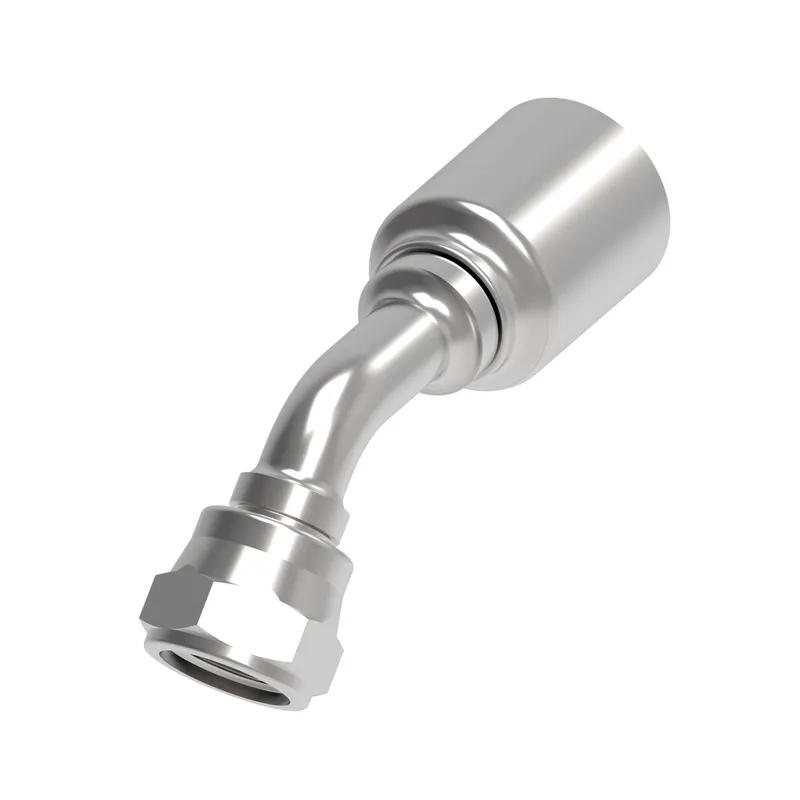

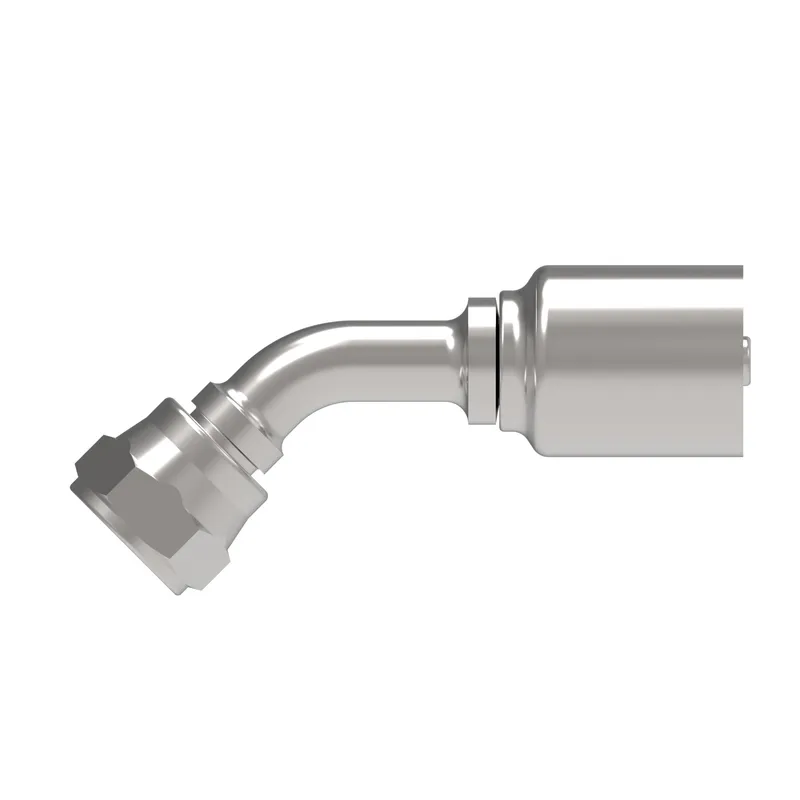

HOSE FTG, 4T/04, BF/04, CS, 45D

Name: HOSE FTG, 4T/04, BF/04, CS, 45D
Brand: Danfoss (Drives)
SKU: 4T4BFA4

MPN: 4T4BFA4 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Thermoplastic hydraulic hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 4T4BFA4 be shipped?

4T4BFA4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4T4BFA4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4T4BFA4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4T4BFA4, subject to availability and destination.

Danfoss HOSE FTG, 4T/04, BF/04, CS, 45D, manufacturer part number 4T4BFA4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.570
A dimension MM	65.300
Angle shape	45 Degree
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.250
Construction Style	Crimp
Drop dimension IN	0.650
Drop dimension MM	16.50
End size 1	-4
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.669
Hex size 1 MM	17.000
Hose cut off factor IN	1.650
Hose cut off factor MM	41.900
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	1.810
Product height mm	45.974
Product length in	2.900
Product length mm	73.660
Product material	Carbon steel
Product width in	0.830
Product width mm	21.082 mm
Thread sealant	No
Thread size 1	G 1/4
Working pressure max BAR	400
Working pressure max PSI	5800
