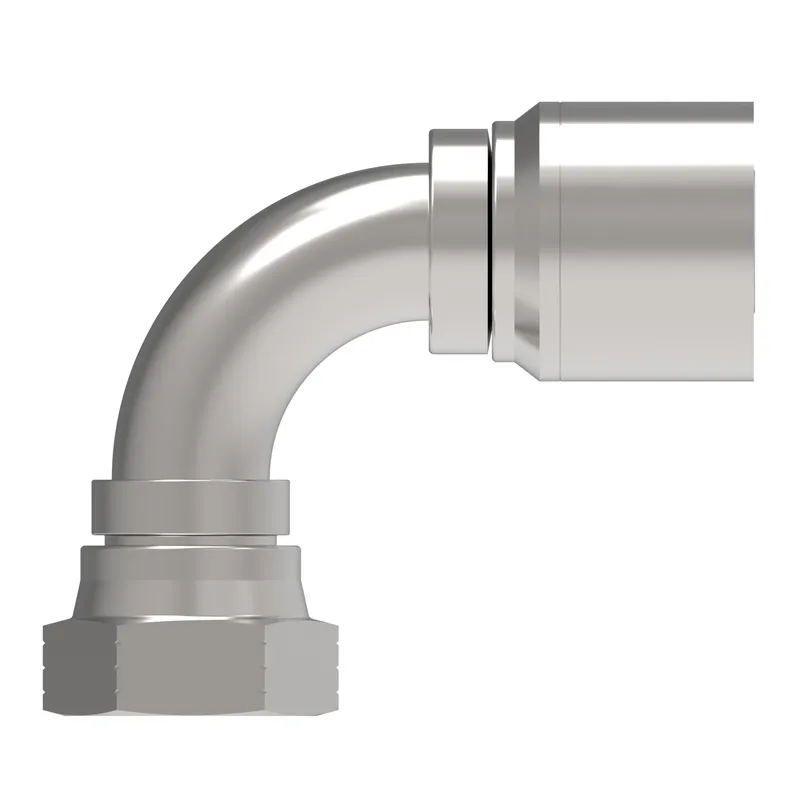

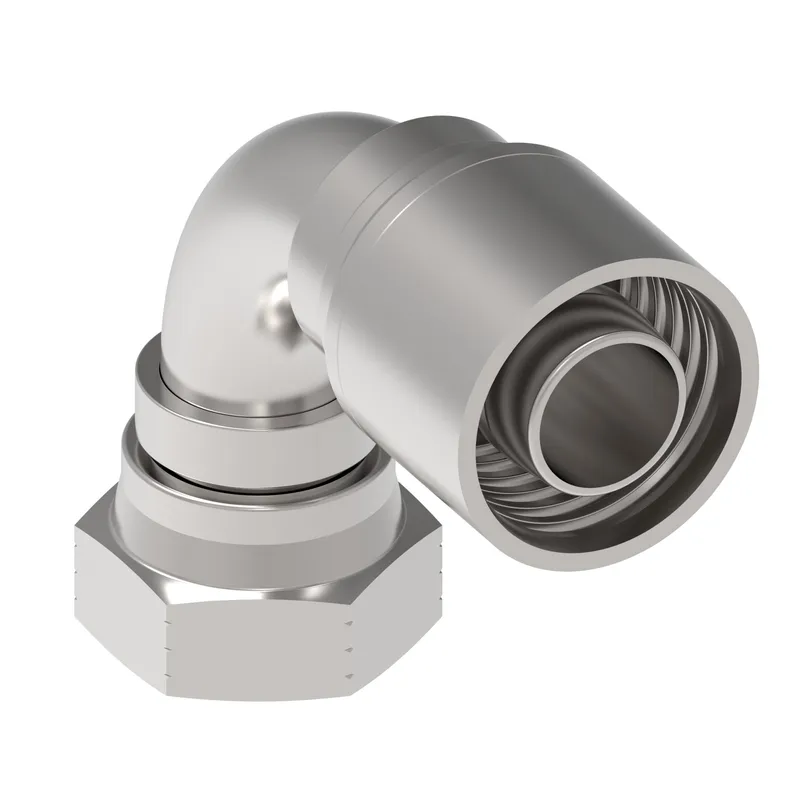

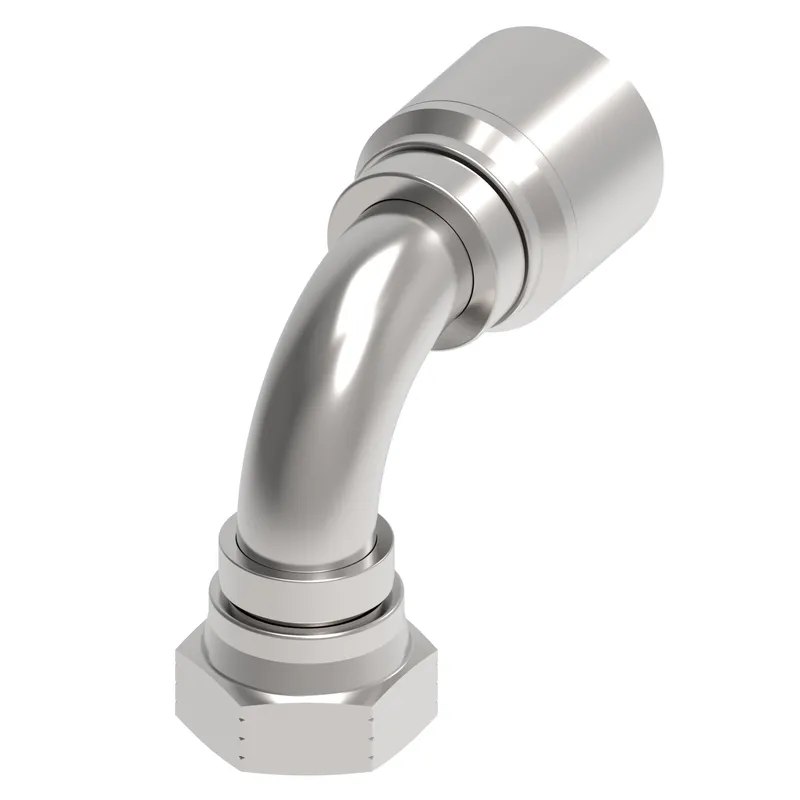

HOSE FTG, 4T/16, JIC-F/16, CS, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 4T16FJB16 be shipped?
4T16FJB16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4T16FJB16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4T16FJB16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4T16FJB16, subject to availability and destination.
Danfoss HOSE FTG, 4T/16, JIC-F/16, CS, 90D, manufacturer part number 4T16FJB16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.550 |
| A dimension MM | 90.100 |
| Angle shape | 90 Degree |
| Brand | Synflex Optimum by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| Drop dimension IN | 2.390 |
| Drop dimension MM | 60.70 |
| End size 1 | -16 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Protective oil |
| Hex size 1 IN | 1.614 |
| Hex size 1 MM | 41.000 |
| Hose cut off factor IN | 2.200 |
| Hose cut off factor MM | 55.900 |
| Hose size | -16 |
| Inside diameter IN | 0.760 |
| Inside diameter MM | 19.300 |
| Product height in | 3.543 |
| Product height mm | 90.000 |
| Product length in | 4.330 |
| Product length mm | 110.000 |
| Product material | Carbon steel |
| Product width in | 1.614 |
| Product width mm | 41.000 mm |
| Thread sealant | No |
| Thread size 1 | 1 5/16-12 UN |
| Working pressure max BAR | 280 |
| Working pressure max PSI | 4050 |
