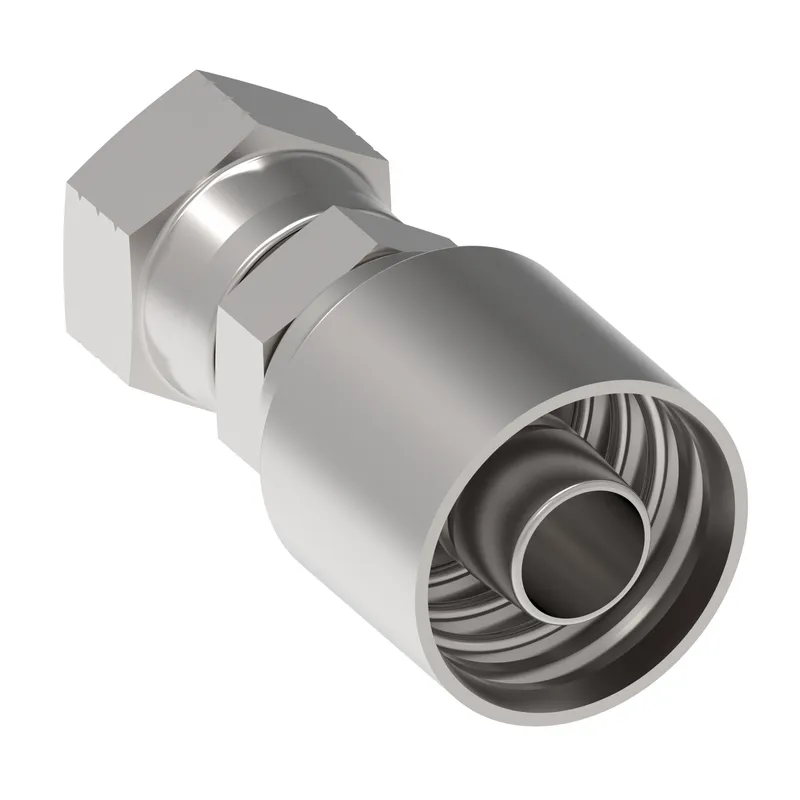

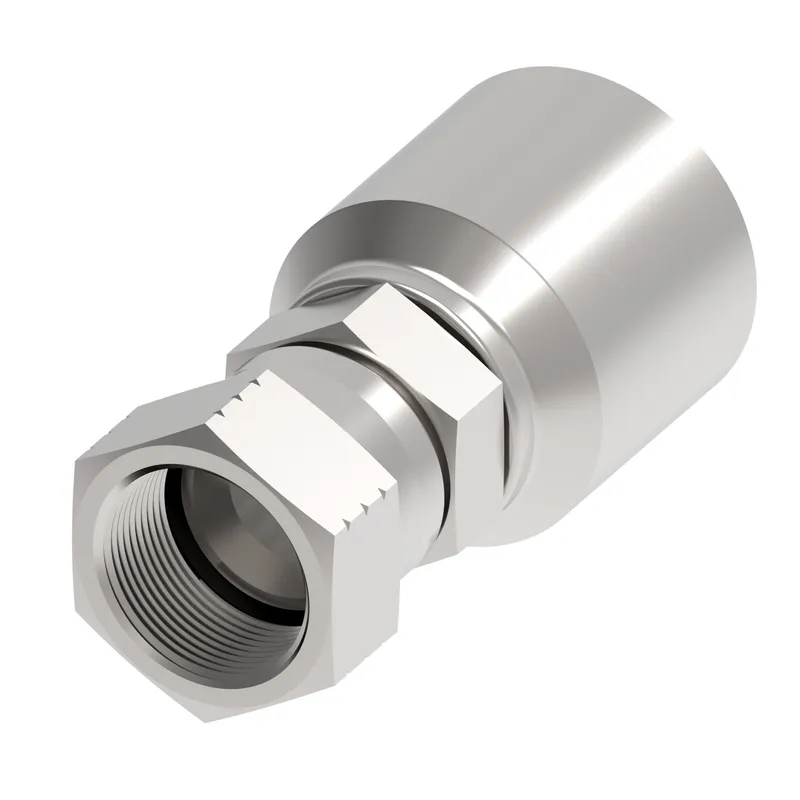

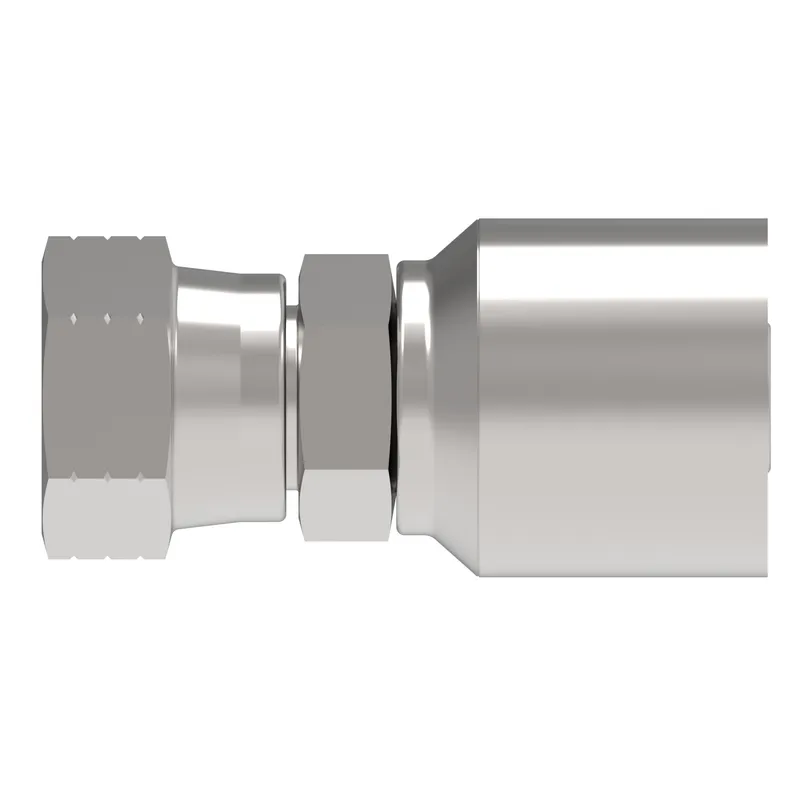

Danfoss 4T10FJ10

HOSE FTG, 4T/10, JIC-F/10, CS, STR

MPN: 4T10FJ10
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T10FJ10?

Danfoss HOSE FTG, 4T/10, JIC-F/10, CS, STR, manufacturer part number 4T10FJ10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.760
A dimension MM	70.000
Angle shape	Straight
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.875
Construction Style	Crimp
End size 1	-10
End type 1	Female 37 degree swivel
Finish plating	Zinc plating
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hex size 2 IN	0.944
Hex size 2 MM	24.000
Hose cut off factor IN	1.610
Hose cut off factor MM	40.900
Hose size	-10
Inside diameter IN	0.5000
Inside diameter MM	12.8000
Product height in	1.181
Product height mm	30.000
Product length in	2.755
Product length mm	70.000
Product material	Carbon steel
Product width in	1.181
Product width mm	30.000 mm
Thread sealant	No
Thread size 1	7/8-14 UNF
Working pressure max BAR	350
Working pressure max PSI	5100
