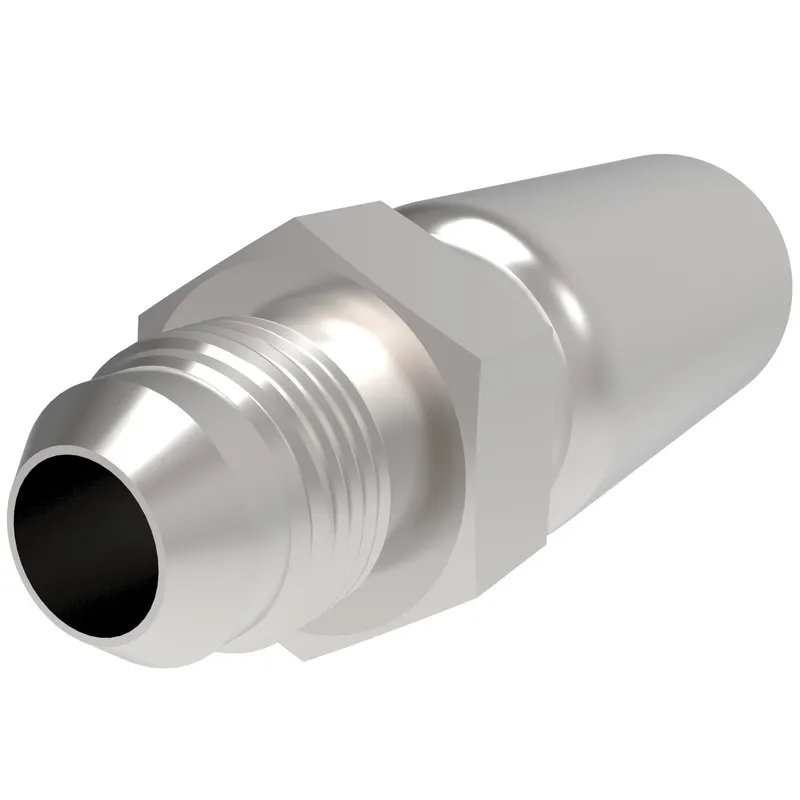

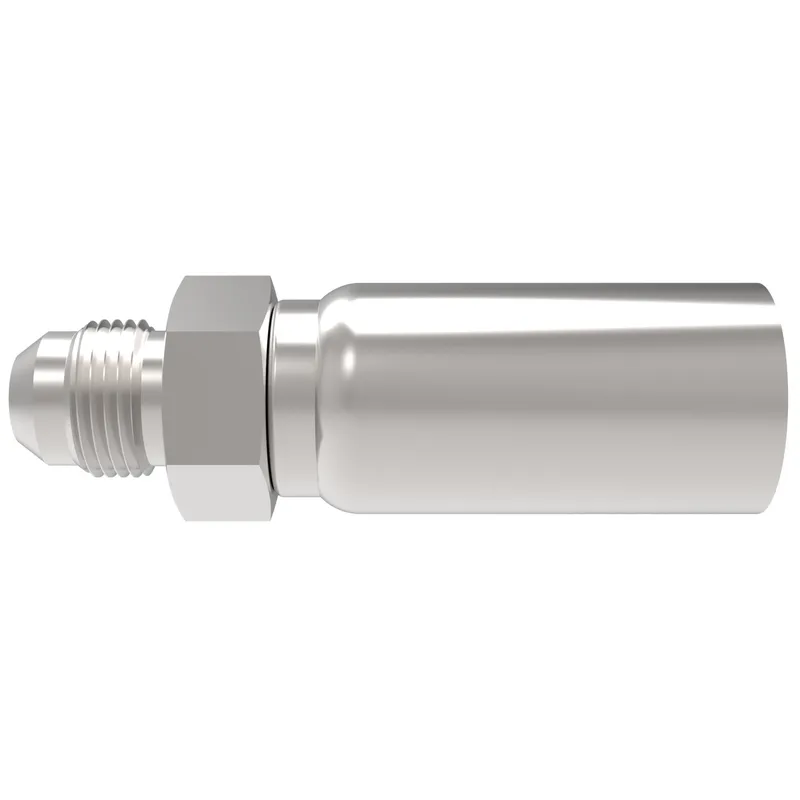

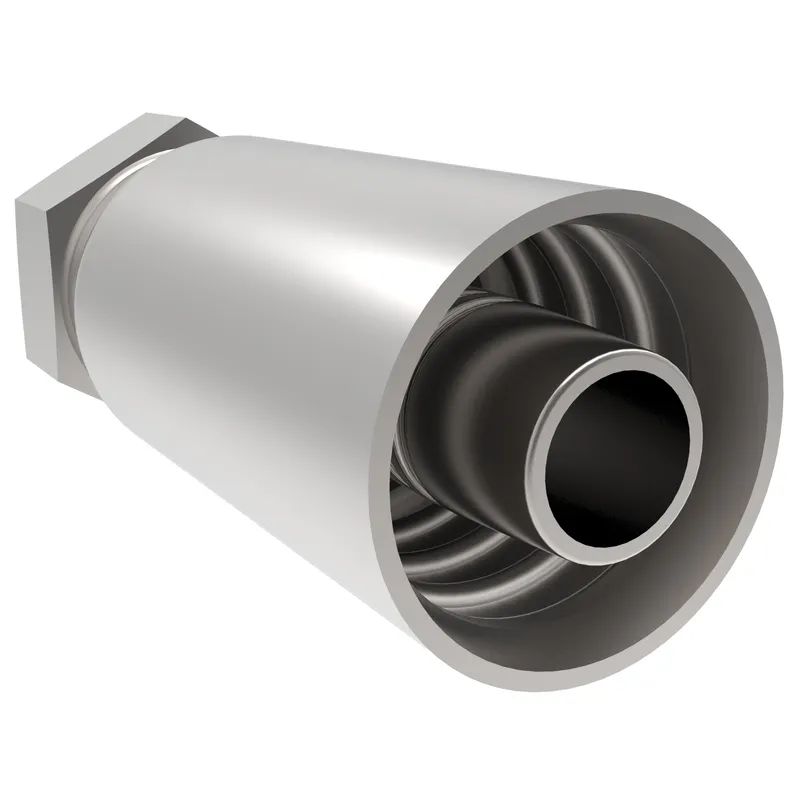

CONEXAO INOX P/MANGUEIRASYNFLEX 38LV-16
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Subsea oil and gas |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 390E-16556-C05 be shipped?
390E-16556-C05 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 390E-16556-C05 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 390E-16556-C05 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 390E-16556-C05, subject to availability and destination.
Danfoss CONEXAO INOX P/MANGUEIRASYNFLEX 38LV-16, manufacturer part number 390E-16556-C05. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.597 |
| A dimension MM | 116.760 |
| Angle shape | Straight |
| Brand | Synflex by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Compatible hoses | H336, H335 |
| Compatible tube OD IN | 1.00 |
| Compatible tube OD MM | 25.400 |
| Construction Style | Reusable |
| End size 1 | -16 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Passivate |
| Hex size 1 IN | 1.500 |
| Hex size 1 MM | 38.100 |
| Hex size 2 IN | 1.500 |
| Hex size 2 MM | 38.100 |
| Hose cut off factor IN | 2.037 |
| Hose cut off factor MM | 51.740 |
| Hose size | -16 |
| Inside diameter IN | 0.8130 |
| Inside diameter MM | 20.6500 |
| Product height in | 2.020 |
| Product height mm | 51.308 |
| Product length in | 4.590 |
| Product length mm | 116.586 |
| Product material | 316 Stainless steel |
| Product width in | 1.750 |
| Product width mm | 44.450 mm |
| Thread sealant | No |
| Thread size 1 | 1 5/16-12 UN |
| Tube OD 1 IN | 1.000 |
| Tube OD 1 MM | 25.400 |
| Working pressure max BAR | 241 |
| Working pressure max PSI | 3500 |
