Fitting-nipple
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Subsea oil and gas |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 390E-03544-C05 be shipped?
390E-03544-C05 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 390E-03544-C05 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 390E-03544-C05 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 390E-03544-C05, subject to availability and destination.

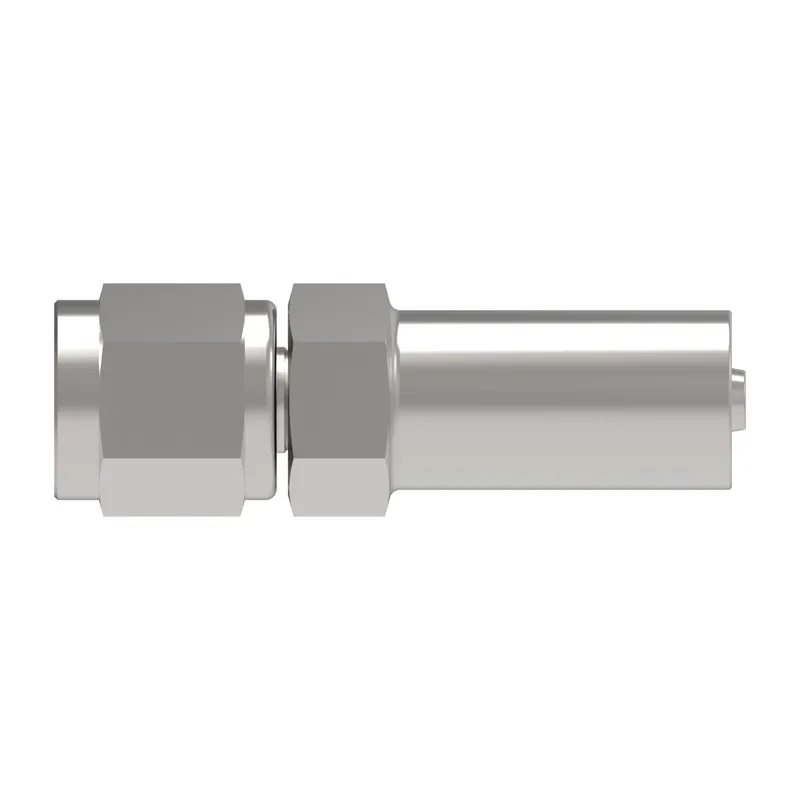

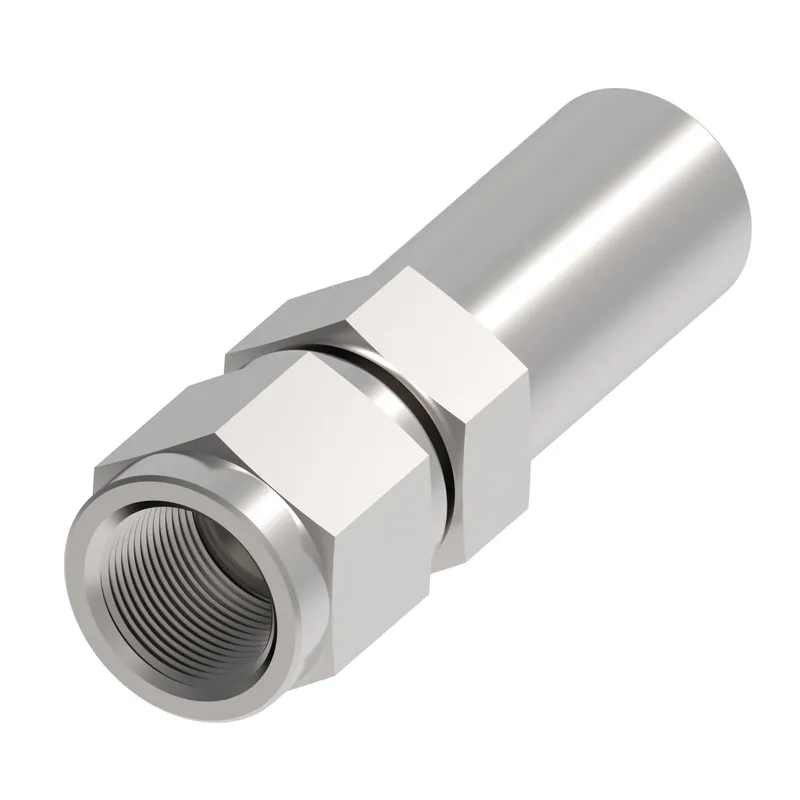

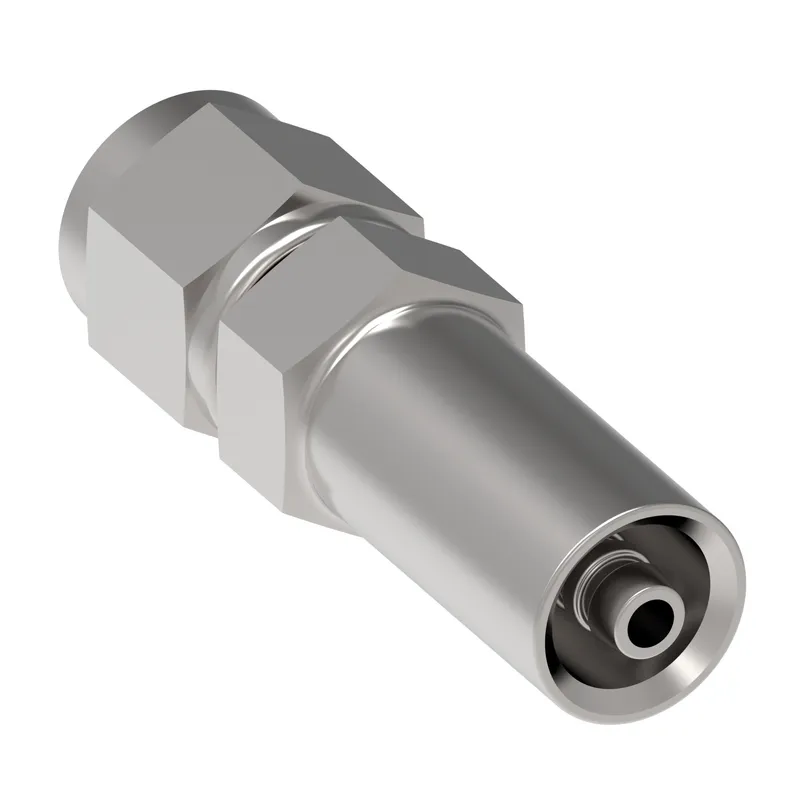

Danfoss Fitting-nipple, manufacturer part number 390E-03544-C05. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789364999 |
| A dimension IN | 1.887 |
| A dimension MM | 47.930 |
| Angle shape | Straight |
| Brand | Synflex by Danfoss |
| Compatible hose ID IN | 0.251 |
| Construction Style | Reusable |
| End type 1 | Female 37 degree swivel |
| Hex size 1 IN | 0.563 |
| Hex size 1 MM | 14.300 |
| Hex size 2 IN | 0.563 |
| Hex size 2 MM | 14.300 |
| Hose cut off factor IN | 0.937 |
| Hose cut off factor MM | 23.800 |
| Inside diameter IN | 0.1090 |
| Inside diameter MM | 2.7690 |
| Product height in | 0.650 |
| Product height mm | 16.510 |
| Product length in | 1.870 |
| Product length mm | 47.498 |
| Product material | 304 Stainless Steel |
| Product width in | 0.560 |
| Product width mm | 14.224 mm |
| Reusable socket hex MM | 14.288 |
| Thread sealant | No |
| Thread size 1 | 7/16-20 UNF |
