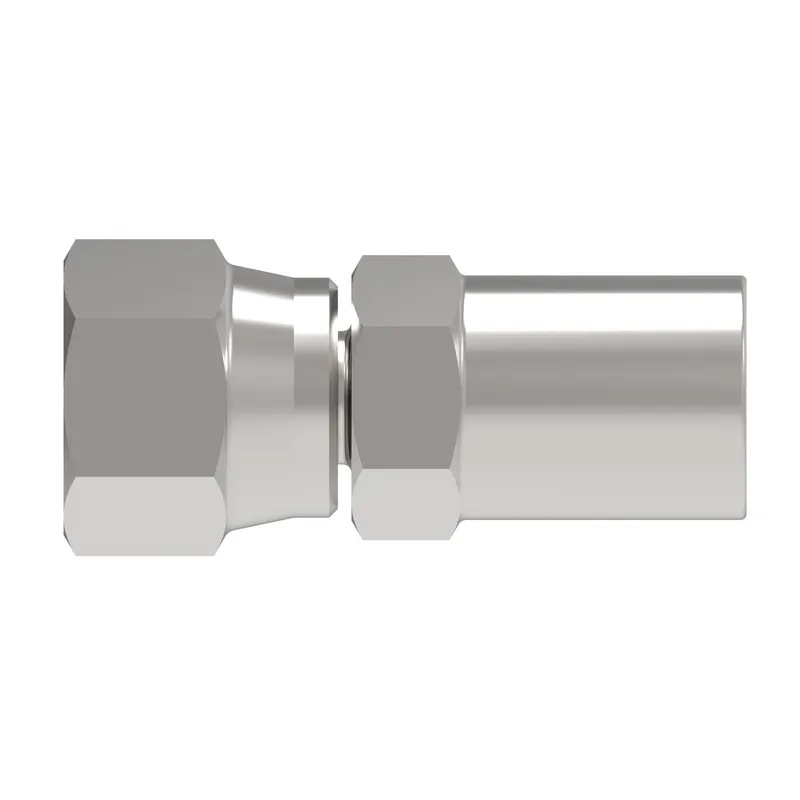

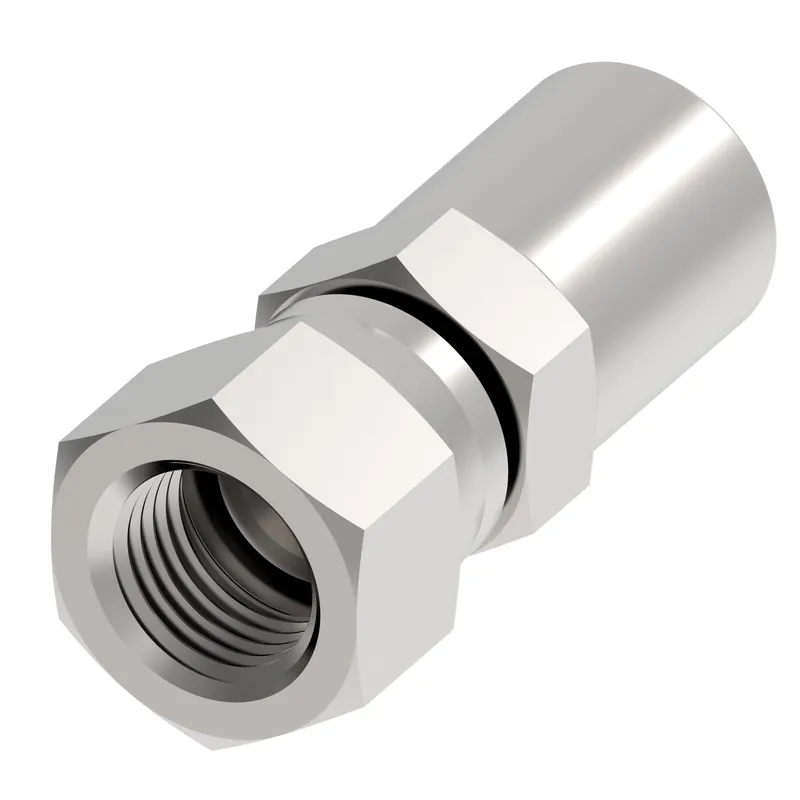

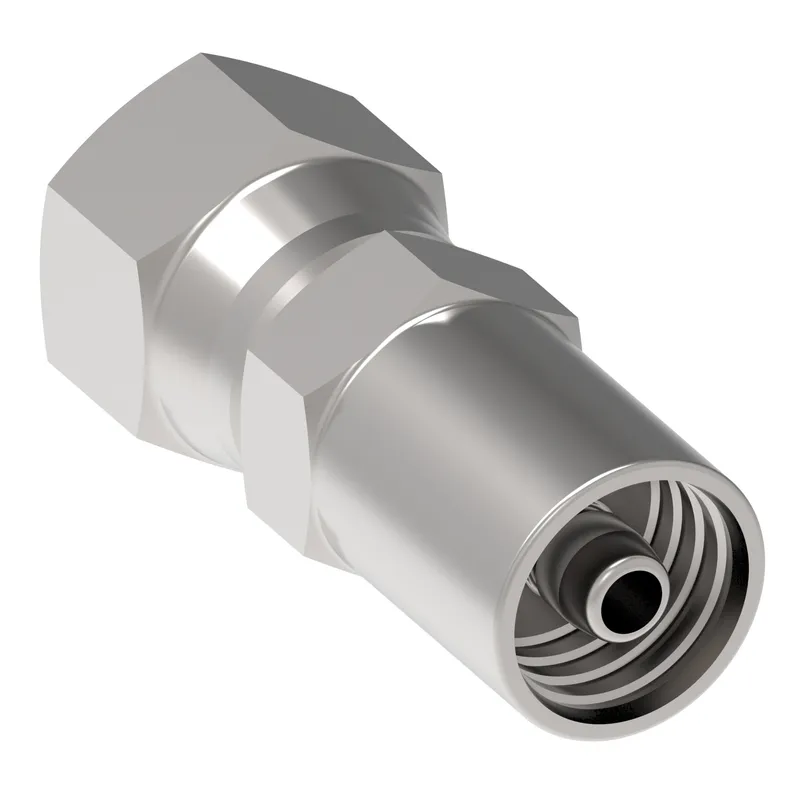

FTG:Steel: F-JIC : STRT J37FS:3/16X-4:PM

Name: FTG:Steel: F-JIC : STRT J37FS:3/16X-4:PM
Brand: Danfoss (Drives)
SKU: 390E-03544

MPN: 390E-03544 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Subsea oil and gas
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 390E-03544 be shipped?

390E-03544 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 390E-03544 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 390E-03544 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 390E-03544, subject to availability and destination.

Danfoss FTG:Steel: F-JIC : STRT J37FS:3/16X-4:PM, manufacturer part number 390E-03544. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Brand	Synflex by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compatible hoses	H336, H335
Compatible tube OD IN	0.25
Compatible tube OD MM	6.350
Construction Style	Crimp
End size 1	-4
End type 1	Female 37 degree swivel
Hex size 1 IN	0.560
Hex size 1 MM	14.200
Hex size 2 IN	0.630
Hex size 2 MM	16.000
Hose cut off factor IN	1.160
Hose cut off factor MM	29.464
Hose size	-4
Inside diameter IN	0.110
Inside diameter MM	2.794
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.250
Tube OD 1 MM	6.350
