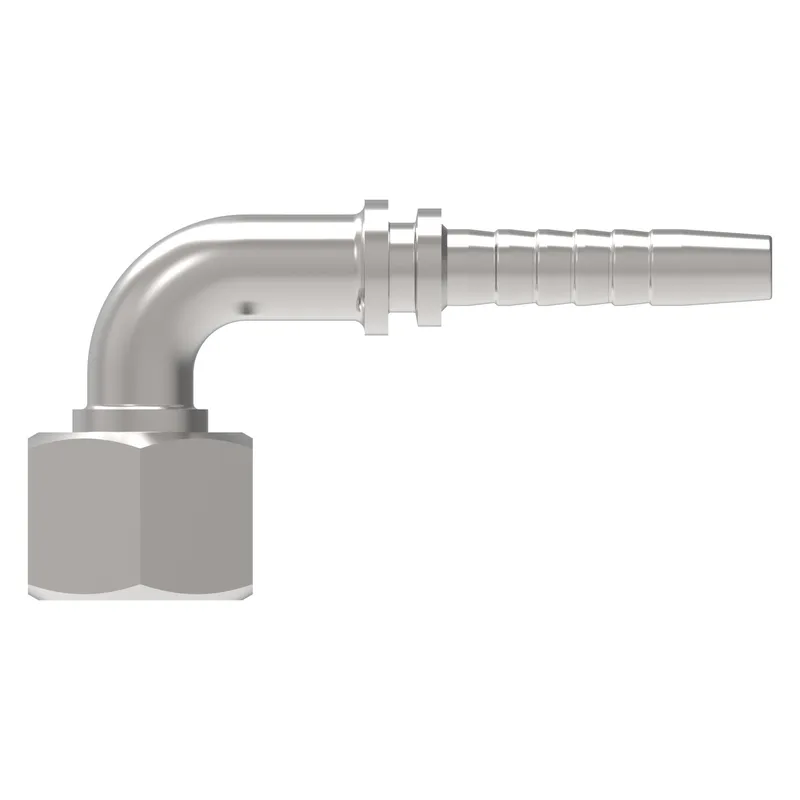

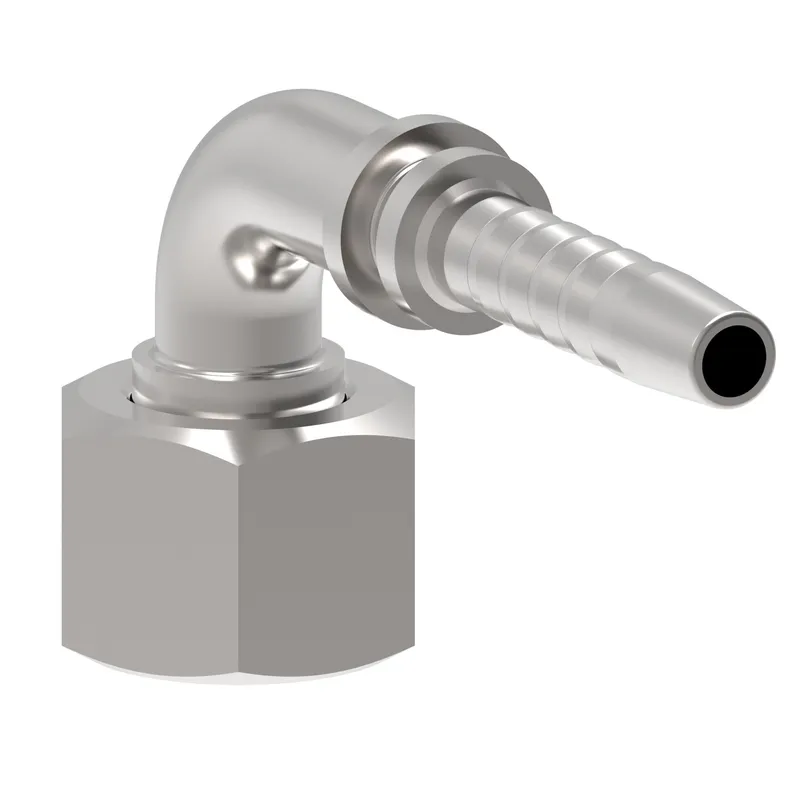

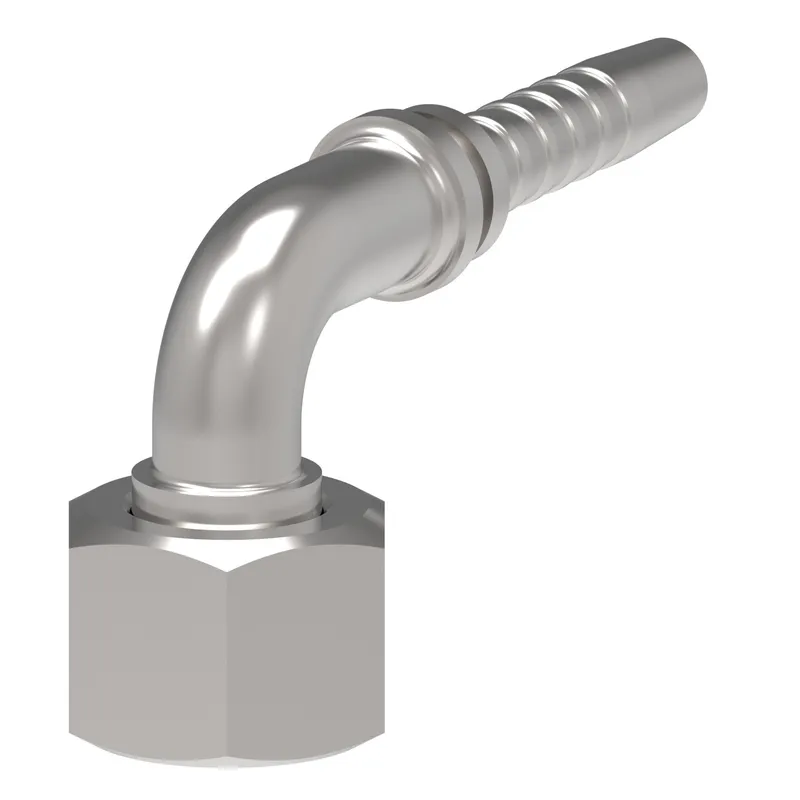

Danfoss 24291-10-08H47TZF

HOSE NIPPLE ASSY,2P/08,ORS-F/10,CS,90D

MPN
24291-10-08H47TZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24291-10-08H47TZF?

Danfoss HOSE NIPPLE ASSY,2P/08,ORS-F/10,CS,90D, manufacturer part number 24291-10-08H47TZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146192219
A dimension IN2.850
A dimension MM72.500
Angle shape90 Degree
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses EC110, EC115, EC210, EC215
Construction StyleCrimp
Drop dimension IN1.850
Drop dimension MM47.00
End size 1-10
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.188
Hex size 1 MM30.000
Hose cut off factor IN1.610
Hose cut off factor MM41.000
Hose size-8
Inside diameter IN0.390
Inside diameter MM9.900
Product height in2.795
Product height mm71.001
Product length in2.854
Product length mm72.499
Product materialCarbon steel
Product width in1.181
Product width mm30
Thread sealantNo
Thread size 11-14 UNS
Working pressure max BAR552
Working pressure max PSI8100

24291-10-08H47TZF: frequently asked questions

When can 24291-10-08H47TZF be shipped?

24291-10-08H47TZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24291-10-08H47TZF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24291-10-08H47TZF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24291-10-08H47TZF, subject to availability and destination.
