Danfoss 24291-10-08H40TZ

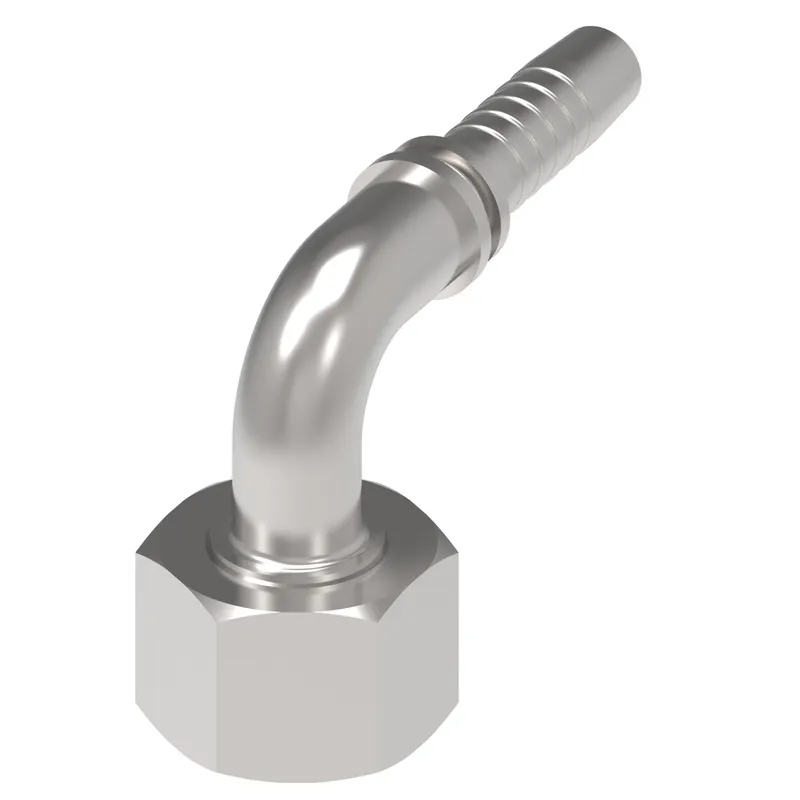

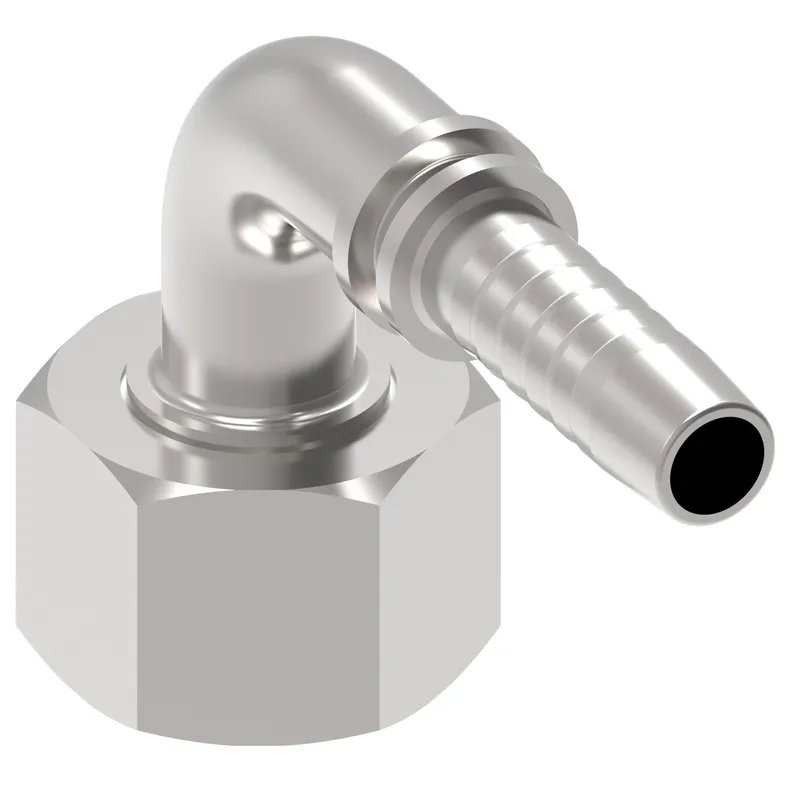

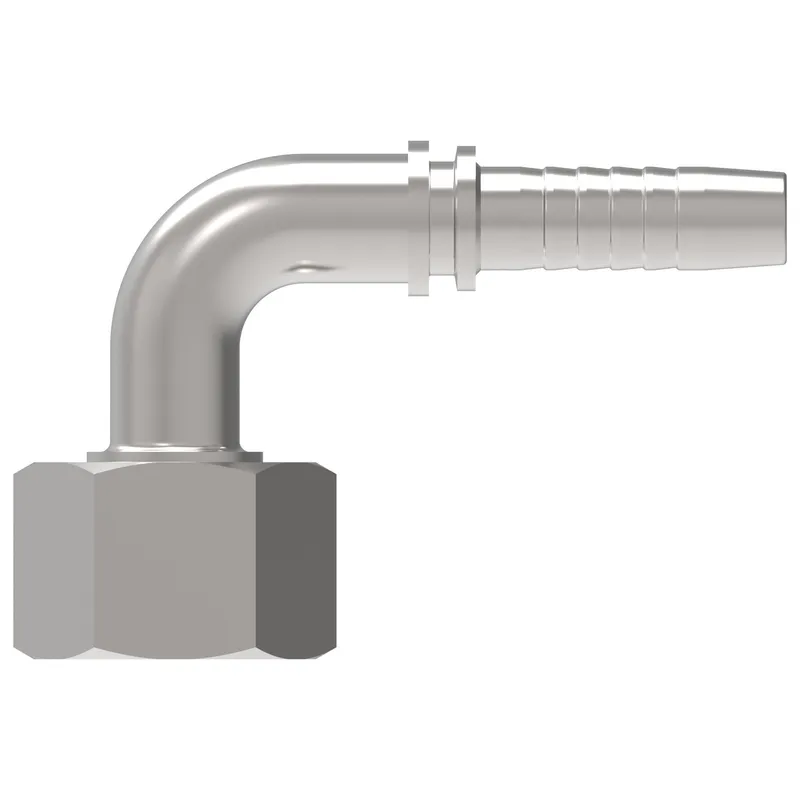

HOSE NIPPLE, 2P/08, ORS-F/10, CS, 90D

MPN
24291-10-08H40TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24291-10-08H40TZ?

Danfoss HOSE NIPPLE, 2P/08, ORS-F/10, CS, 90D, manufacturer part number 24291-10-08H40TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.910
A dimension MM74.000
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM15.875
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN1.570
Drop dimension MM40.00
End size 1-10
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 2 IN1.180
Hex size 2 MM29.972
Hose cut off factor IN1.673
Hose cut off factor MM42.500
Hose size-10
Inside diameter IN0.393
Inside diameter MM10.000
Product height in2.470
Product height mm62.738
Product length in3.503
Product length mm88.976
Product materialCarbon steel
Product width in1.181
Product width mm29.997
Thread sealantNo
Working pressure max BAR552
Working pressure max PSI8100

24291-10-08H40TZ: frequently asked questions

When can 24291-10-08H40TZ be shipped?

24291-10-08H40TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24291-10-08H40TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24291-10-08H40TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24291-10-08H40TZ, subject to availability and destination.
