What is the Danfoss 24291-08-10Z?

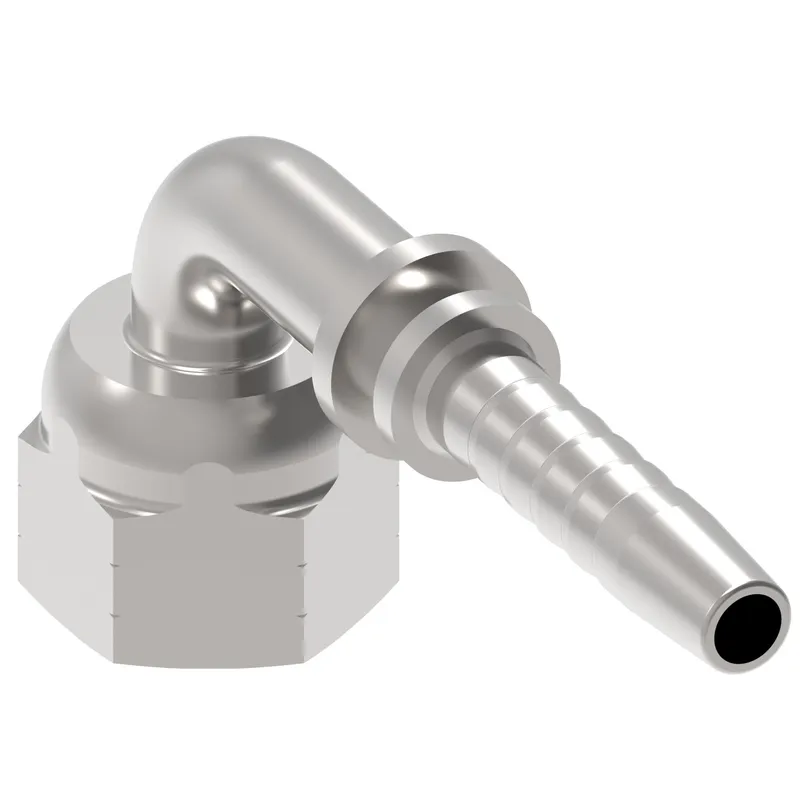

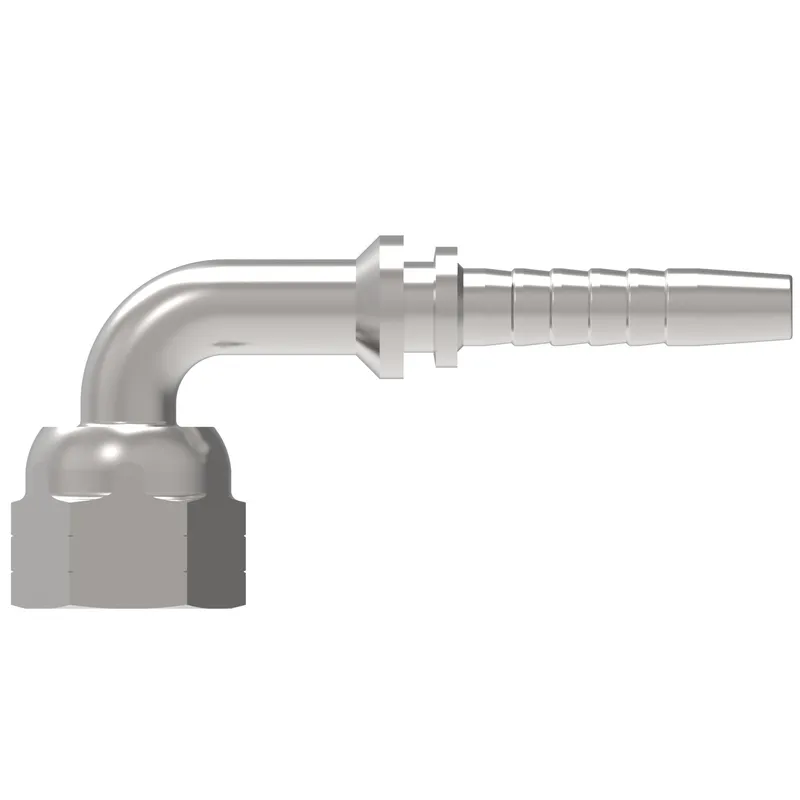

Danfoss HOSE NIPPLE, 2P/10, ORS-F/08, CS, 90D, manufacturer part number 24291-08-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.540
A dimension MM90.000
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM12.700
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN2.440
Drop dimension MM62.00
End size 1-8
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 2 IN0.940
Hex size 2 MM23.876
Hose cut off factor IN2.204
Hose cut off factor MM56.000
Hose size-8
Inside diameter IN0.472
Inside diameter MM12.000
Product height in3.307
Product height mm83.998
Product length in4.015
Product length mm101.981
Product materialCarbon steel
Product width in0.944
Product width mm23.978
Proposition 65Cancer and Reproductive Harm
Thread sealantNo
Working pressure max BAR552
Working pressure max PSI8100
