Danfoss 24241Y-08-08Z

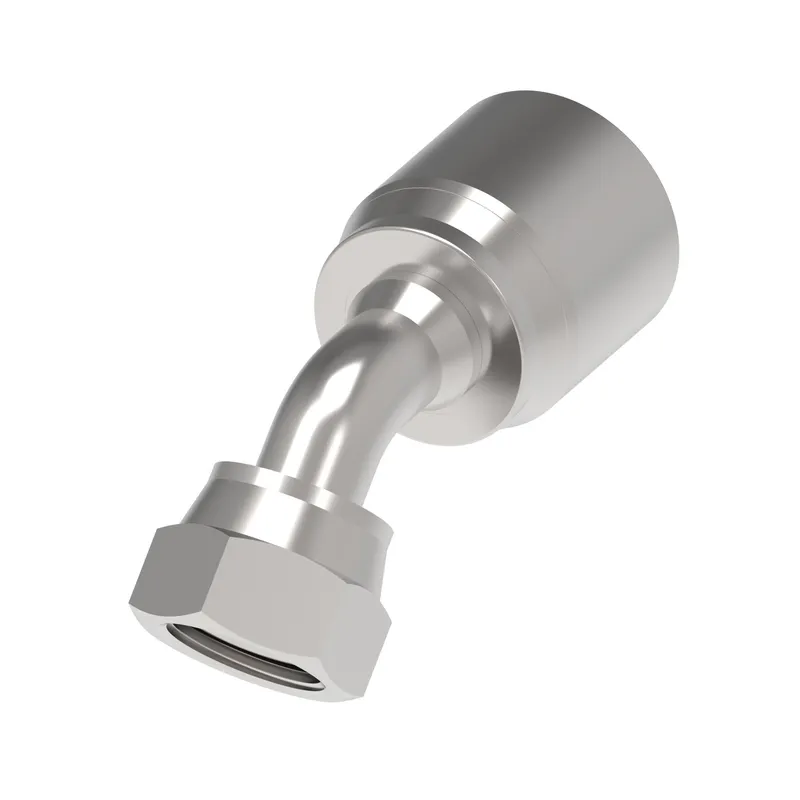

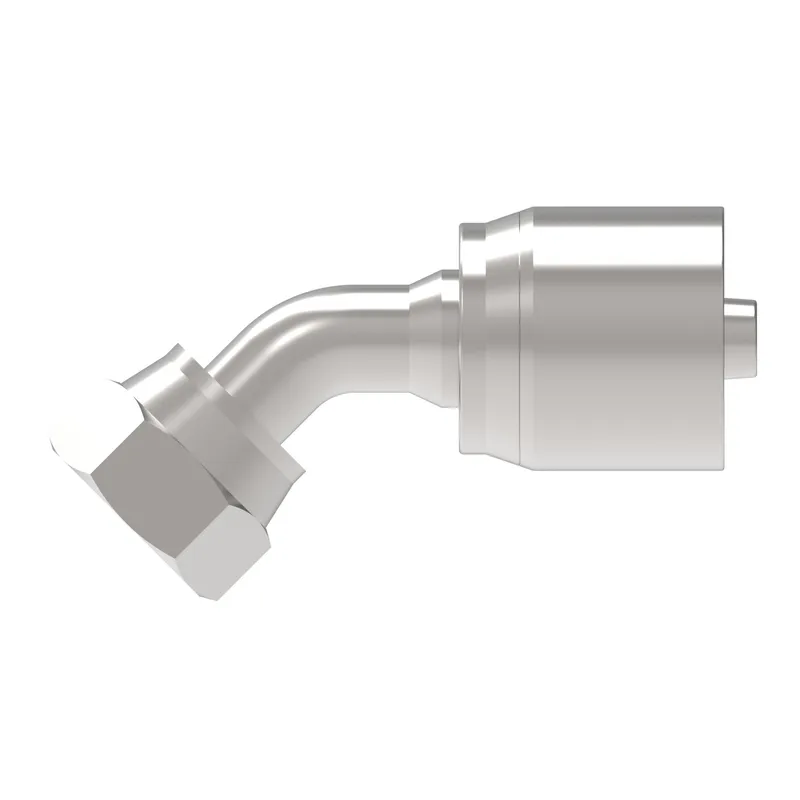

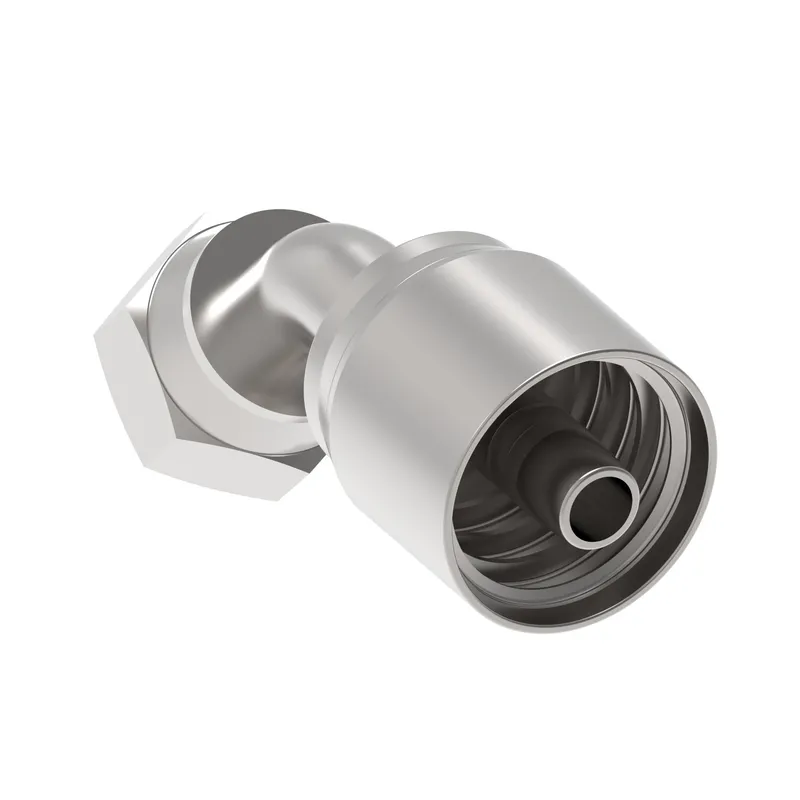

HOSE NIPPLE, 2P/08, ORS-F/08, CS, 45D

MPN
24241Y-08-08Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24241Y-08-08Z?

Danfoss HOSE NIPPLE, 2P/08, ORS-F/08, CS, 45D, manufacturer part number 24241Y-08-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.820
A dimension MM97.200
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses EC110, EC115, EC210, EC215
Construction StyleCrimp
Drop dimension IN1.200
Drop dimension MM30.70
End size 1-8
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.063
Hex size 1 MM27.000
Hex size 2 IN1.060
Hex size 2 MM26.924
Hose cut off factor IN2.590
Hose cut off factor MM65.700
Hose size-8
Inside diameter IN0.400
Inside diameter MM10.000
Product height in1.584
Product height mm40.234
Product length in4.361
Product length mm110.769
Product materialCarbon steel
Product width in1.063
Product width mm27
Thread sealantNo
Working pressure max BAR552
Working pressure max PSI8100

24241Y-08-08Z: frequently asked questions

When can 24241Y-08-08Z be shipped?

24241Y-08-08Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24241Y-08-08Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24241Y-08-08Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24241Y-08-08Z, subject to availability and destination.
