Danfoss 24241Y-08-06TZ

HOSE NIPPLE, 2P/06, ORS-F/08, CS, 45D

MPN
24241Y-08-06TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

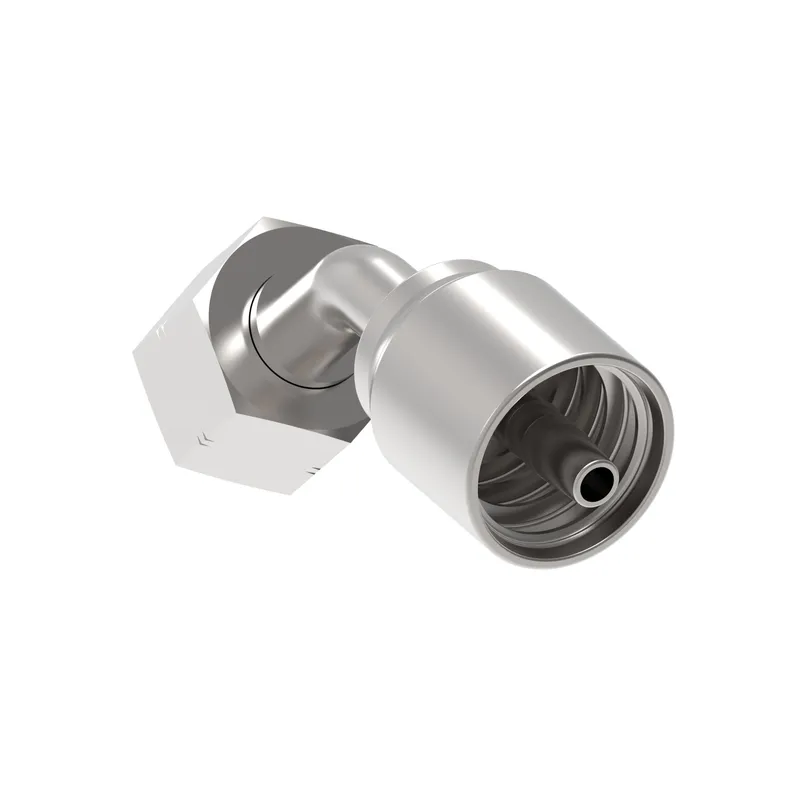

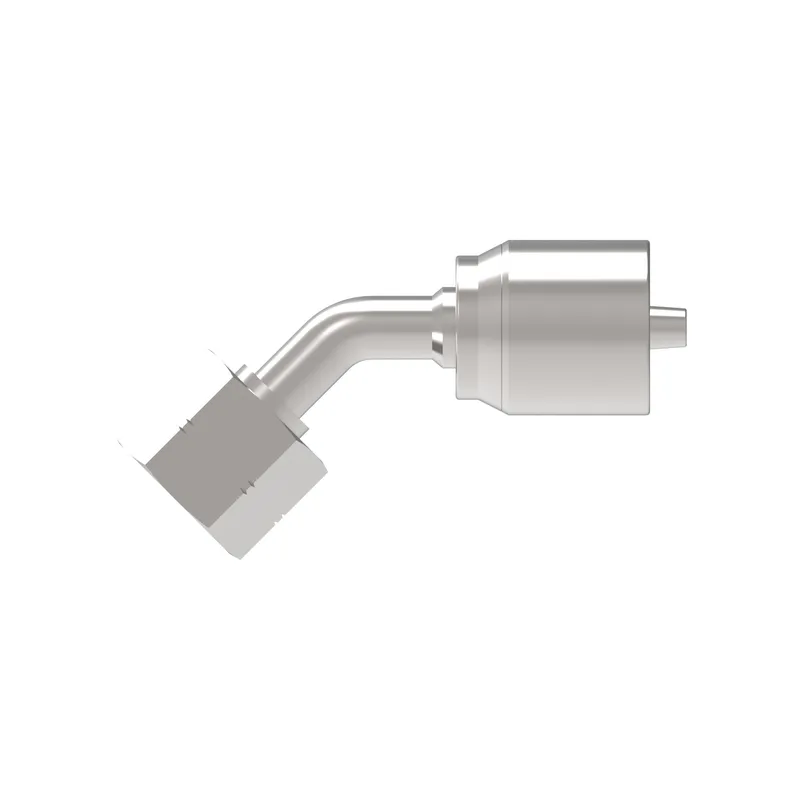

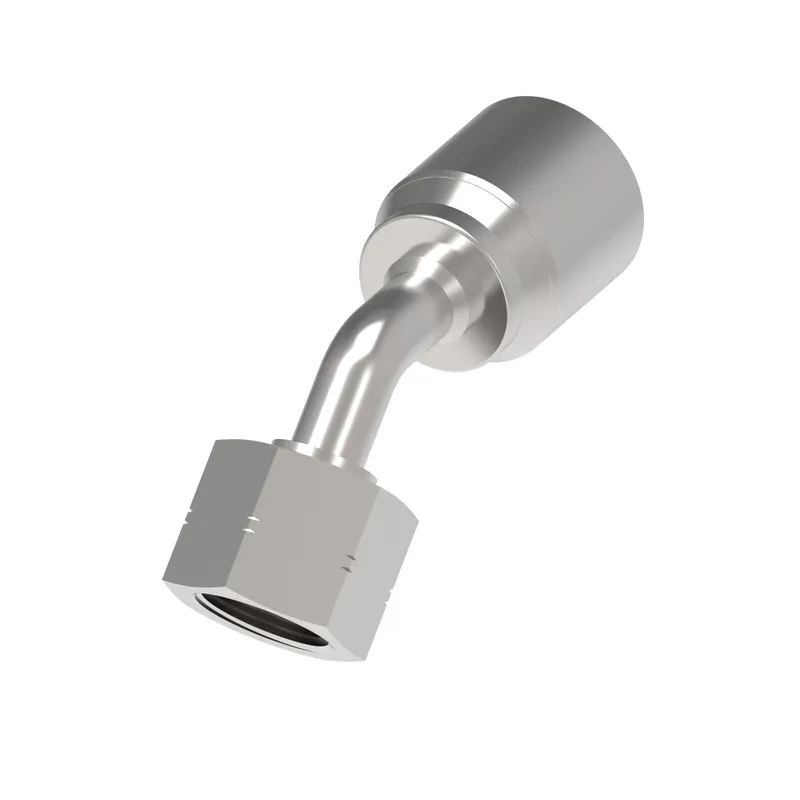

What is the Danfoss 24241Y-08-06TZ?

Danfoss HOSE NIPPLE, 2P/06, ORS-F/08, CS, 45D, manufacturer part number 24241Y-08-06TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.930
A dimension MM74.600
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.525
Construction StyleCrimp
Drop dimension IN0.800
Drop dimension MM20.30
End size 1-8
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.060
Hex size 1 MM26.924
Hose cut off factor IN1.750
Hose cut off factor MM44.600
Hose size-6
Inside diameter IN0.270
Inside diameter MM7.000
Product height in1.820
Product height mm46.228
Product length in3.660
Product length mm92.964
Product materialCarbon steel
Product width in1.060
Product width mm26.924
Thread sealantNo
Working pressure max BAR552
Working pressure max PSI8100

24241Y-08-06TZ: frequently asked questions

When can 24241Y-08-06TZ be shipped?

24241Y-08-06TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24241Y-08-06TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24241Y-08-06TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24241Y-08-06TZ, subject to availability and destination.
