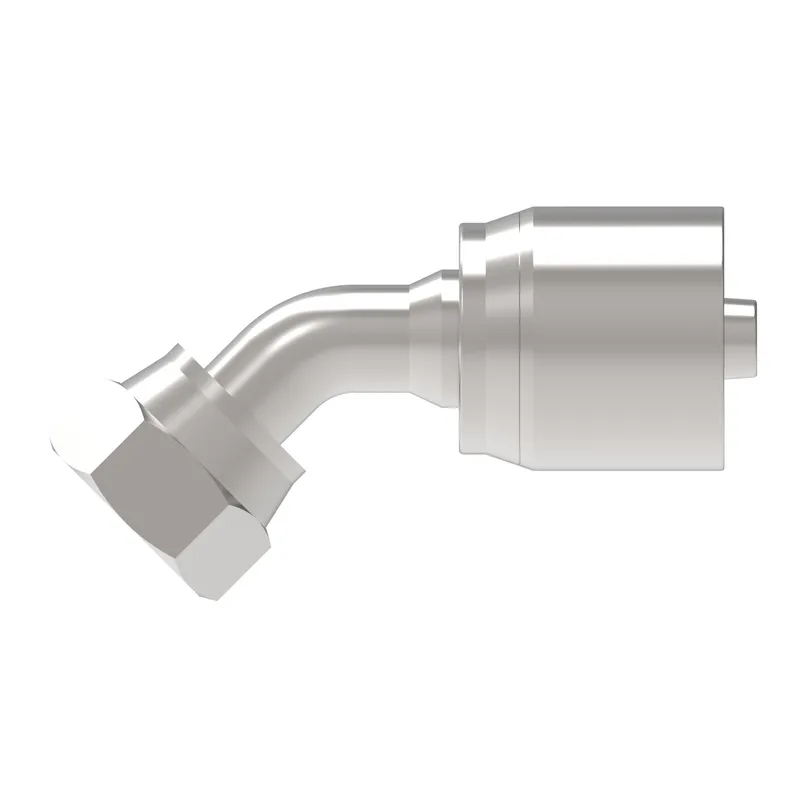

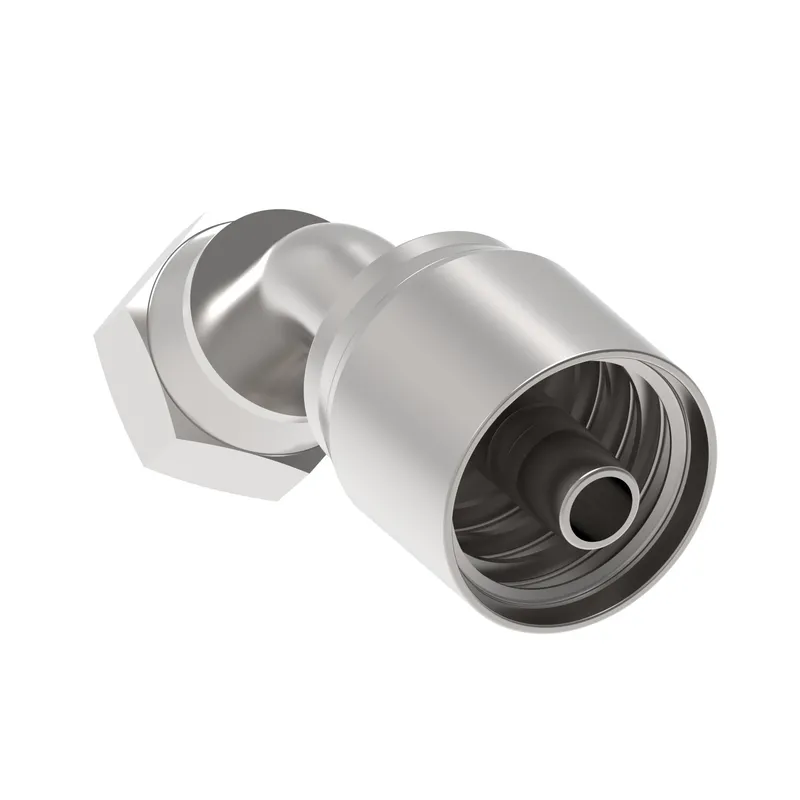

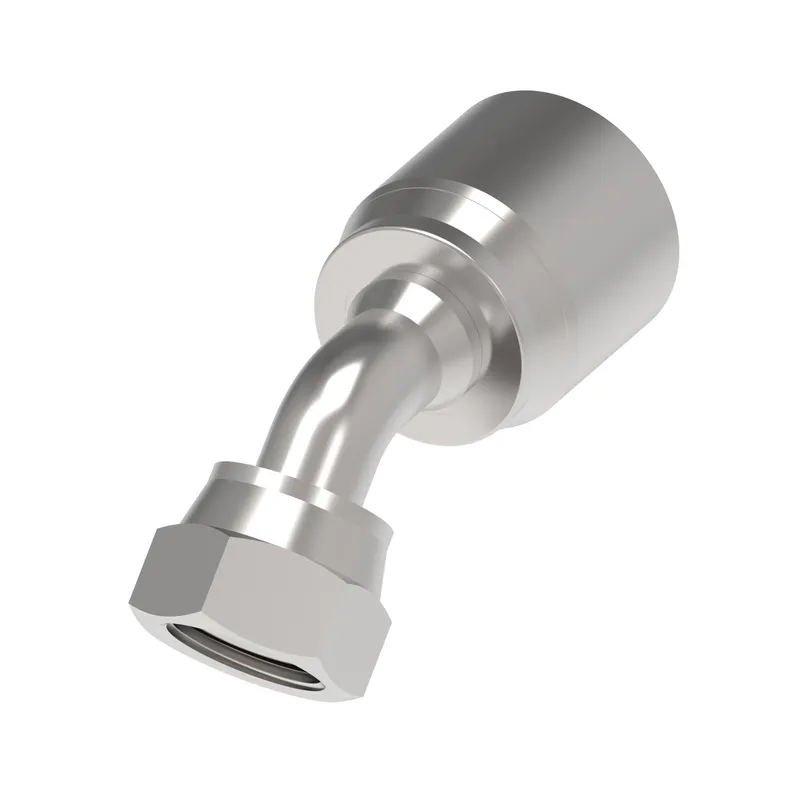

Danfoss 24241Y-10-10Z

HOSE NIPPLE, 2P/10, ORS-F/10, CS, 45D

MPN
24241Y-10-10Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24241Y-10-10Z?

Danfoss HOSE NIPPLE, 2P/10, ORS-F/10, CS, 45D, manufacturer part number 24241Y-10-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.460
A dimension MM113.200
Angle shape45 Degree
Compatible hose ID IN0.620
Compatible hose ID MM15.875
Compatible hoses EC110, EC115, EC210, EC215
Construction StyleCrimp
Drop dimension IN1.370
Drop dimension MM34.90
End size 1-10
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.181
Hex size 1 MM30.000
Hex size 2 IN1.180
Hex size 2 MM29.972
Hose cut off factor IN3.110
Hose cut off factor MM79.200
Hose size-10
Inside diameter IN0.470
Inside diameter MM12.000
Product height in1.803
Product height mm45.796
Product length in5.051
Product length mm128.295
Product materialCarbon steel
Product width in1.181
Product width mm29.997
Thread sealantNo
Working pressure max BAR552
Working pressure max PSI8100

24241Y-10-10Z: frequently asked questions

When can 24241Y-10-10Z be shipped?

24241Y-10-10Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24241Y-10-10Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24241Y-10-10Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24241Y-10-10Z, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 24241Y-08-08Z – HOSE NIPPLE, 2P/08, ORS-F/08, CS, 45D
Danfoss
24241Y-08-08Z

HOSE NIPPLE, 2P/08, ORS-F/08, CS, 45D

Danfoss 24241Y-10-08TZ – HOSE NIPPLE, 2P/08, ORS-F/10, CS, 45D
Danfoss
24241Y-10-08TZ

HOSE NIPPLE, 2P/08, ORS-F/10, CS, 45D

Danfoss 24241Y-12-12Z – HOSE NIPPLE, 2P/12, ORS-F/12, CS, 45D
Danfoss
24241Y-12-12Z

HOSE NIPPLE, 2P/12, ORS-F/12, CS, 45D

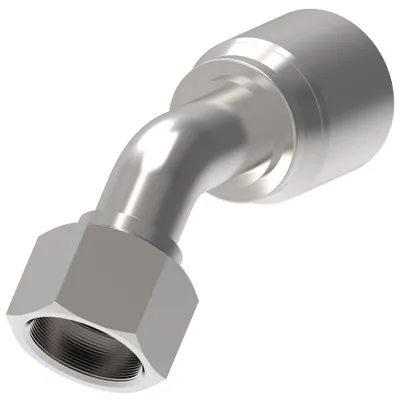

Danfoss 24241Y-16-16TZ – HOSE NIPPLE, 2P/16, ORS-F/16, CS, 45D
