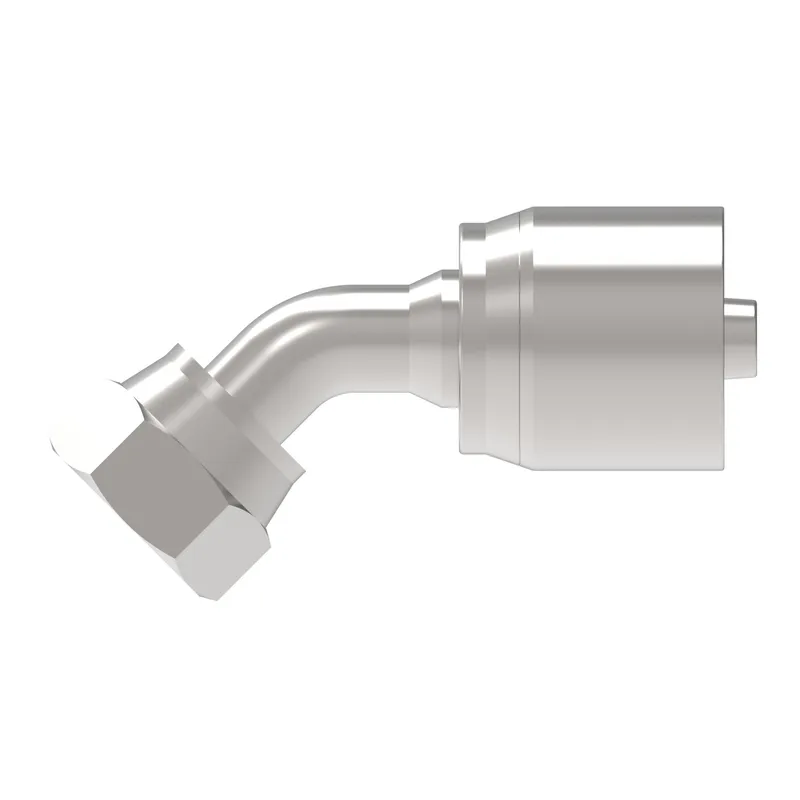

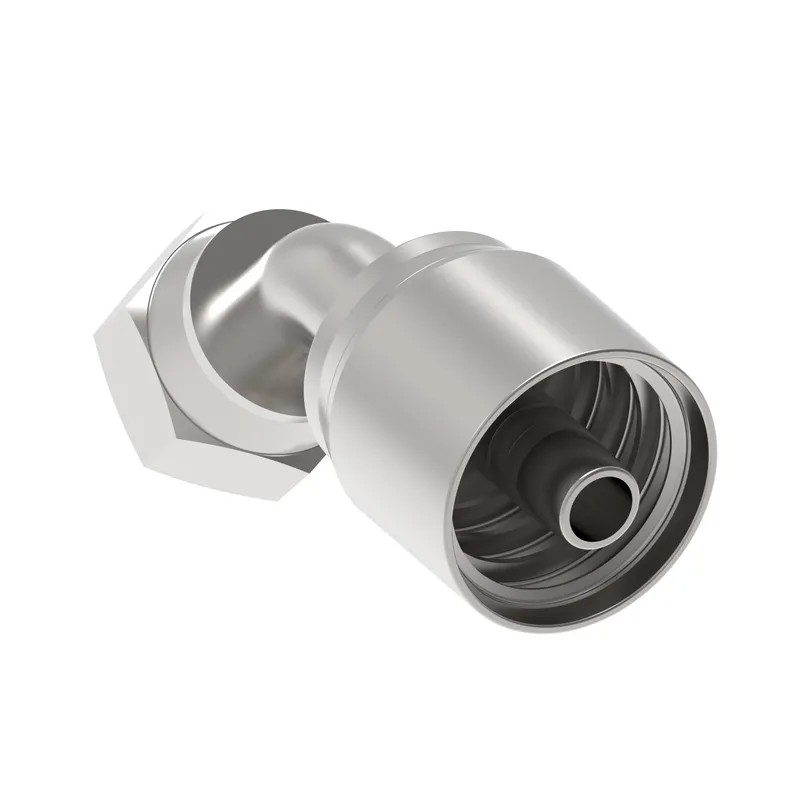

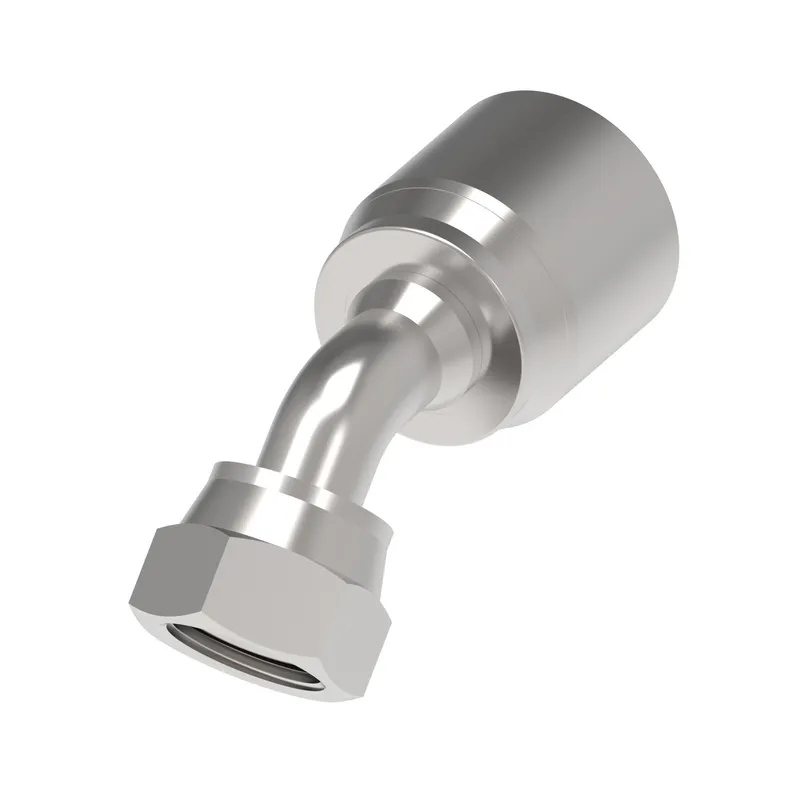

Danfoss 24241Y-04-04Z

HOSE NIPPLE, 2P/04, ORS-F/04, CS, 45D

MPN
24241Y-04-04Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24241Y-04-04Z?

Danfoss HOSE NIPPLE, 2P/04, ORS-F/04, CS, 45D, manufacturer part number 24241Y-04-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.890
A dimension MM73.490
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible hoses EC110, EC115, EC210, EC215
Construction StyleCrimp
Drop dimension IN0.920
Drop dimension MM23.40
End size 1-4
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN0.669
Hex size 1 MM17.000
Hex size 2 IN0.670
Hex size 2 MM17.018
Hose cut off factor IN1.800
Hose cut off factor MM45.490
Hose size-4
Inside diameter IN0.150
Inside diameter MM4.000
Product height in1.156
Product height mm29.362
Product length in3.225
Product length mm81.915
Product materialCarbon steel
Product width in0.669
Product width mm16.993
Thread sealantNo
Working pressure max BAR621
Working pressure max PSI9100

24241Y-04-04Z: frequently asked questions

When can 24241Y-04-04Z be shipped?

24241Y-04-04Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24241Y-04-04Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24241Y-04-04Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24241Y-04-04Z, subject to availability and destination.
