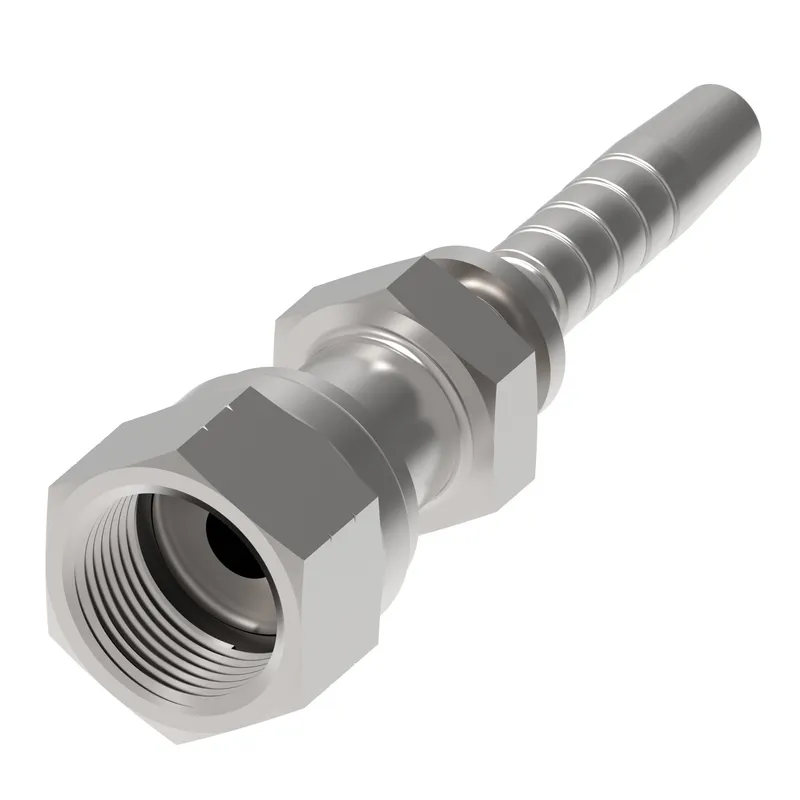

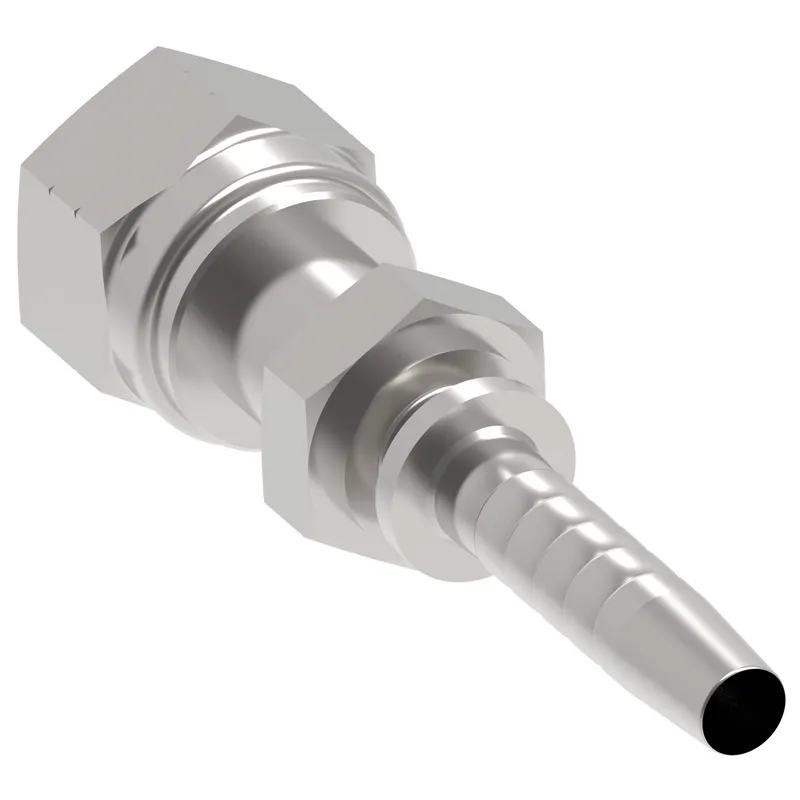

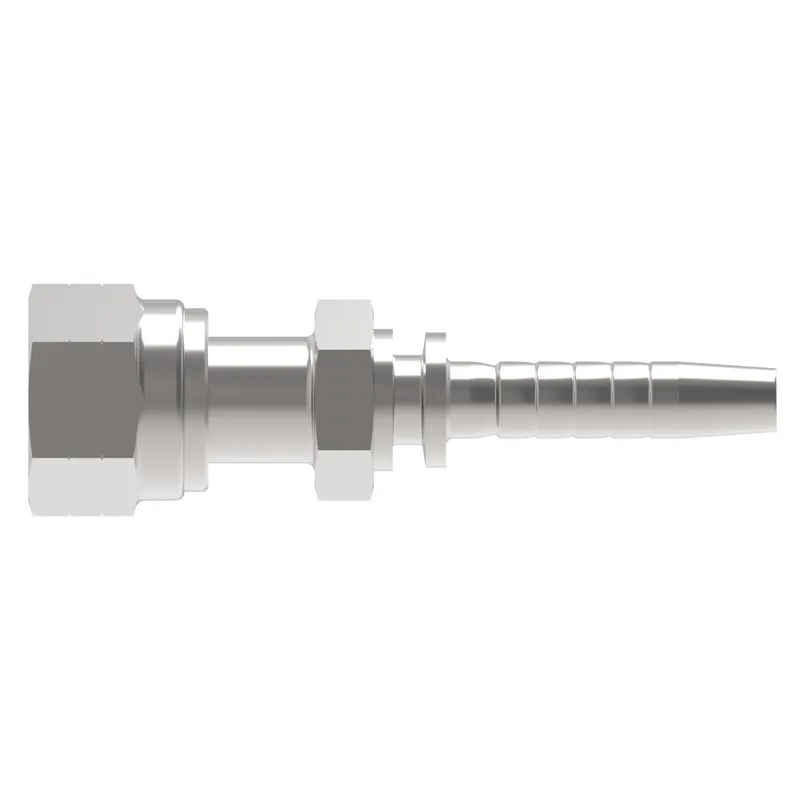

Danfoss 24211D-06-04SMZ

HOSE NIPPLE, 2P/04, ORS-F/06, CS, STR

MPN
24211D-06-04SMZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24211D-06-04SMZ?

Danfoss HOSE NIPPLE, 2P/04, ORS-F/06, CS, STR, manufacturer part number 24211D-06-04SMZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.283
A dimension MM58.000
Angle shapeStraight
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-6
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN0.669
Hex size 1 MM17.000
Hex size 2 IN0.866
Hex size 2 MM21.996
Hose cut off factor IN1.180
Hose cut off factor MM30.000
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in0.866
Product height mm21.996
Product length in2.677
Product length mm67.996
Product materialCarbon steel
Product width in0.866
Product width mm21.996
Thread sealantNo
Thread size 111/16-16 UN
Working pressure max BAR621
Working pressure max PSI9100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

24211D-06-04SMZ: frequently asked questions

When can 24211D-06-04SMZ be shipped?

24211D-06-04SMZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24211D-06-04SMZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24211D-06-04SMZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24211D-06-04SMZ, subject to availability and destination.
