Danfoss 24211-20-16TZ

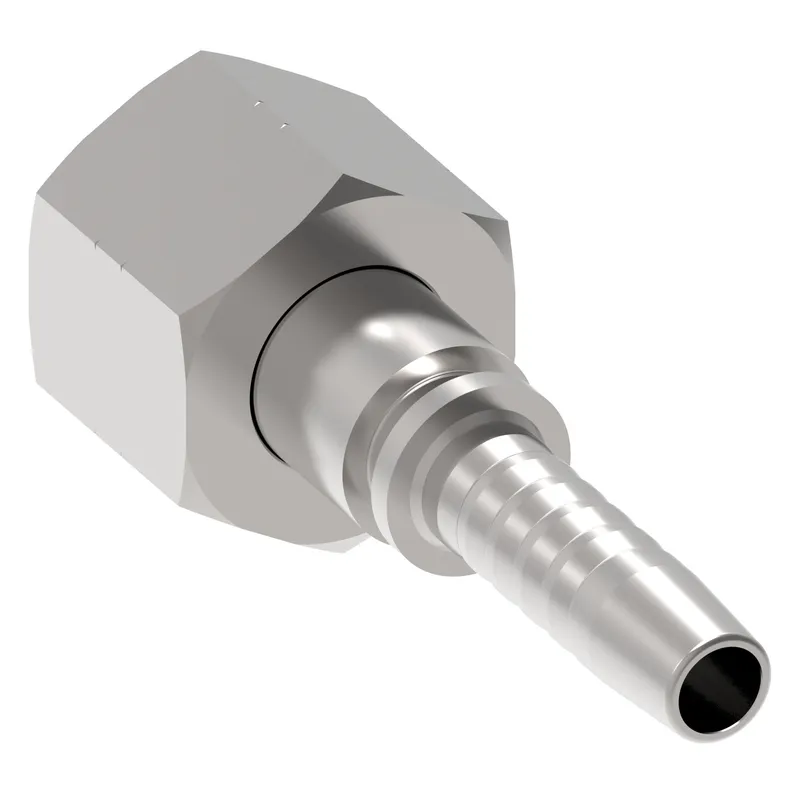

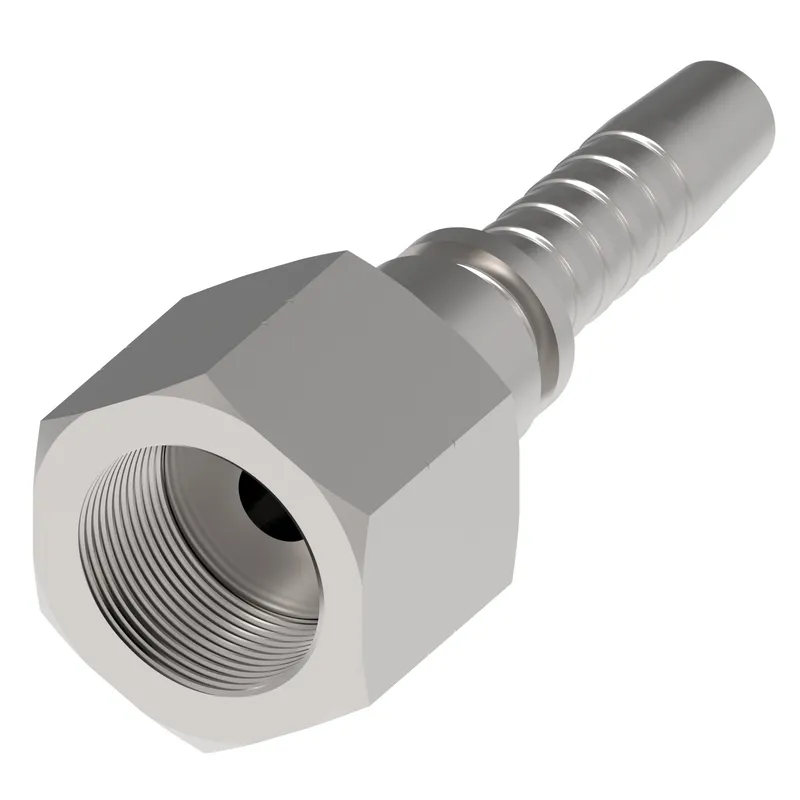

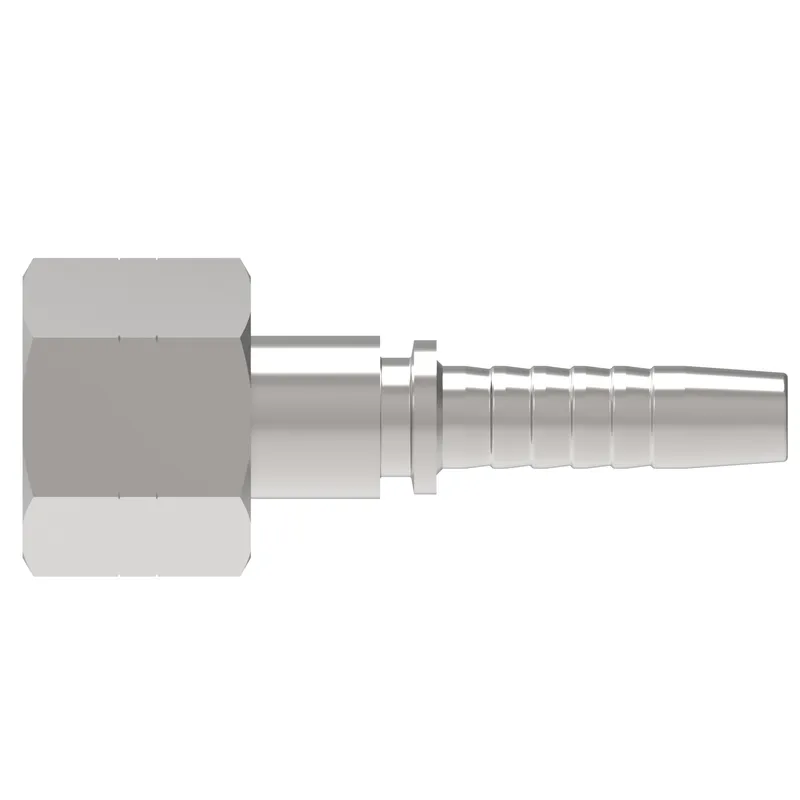

HOSE NIPPLE, 2P/16, ORS-F/20, CS, STR

MPN
24211-20-16TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24211-20-16TZ?

Danfoss HOSE NIPPLE, 2P/16, ORS-F/20, CS, STR, manufacturer part number 24211-20-16TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.248
A dimension MM82.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.000
Construction StyleCrimp
End size 1-20
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.938
Hex size 1 MM50.000
Hose cut off factor IN0.846
Hose cut off factor MM21.500
Inside diameter IN0.826
Inside diameter MM21.000
Product height in2.270
Product height mm57.658
Product length in3.838
Product length mm97.485
Product materialCarbon steel
Product width in1.970
Product width mm50.038
Proposition 65Cancer and Reproductive Harm
Thread sealantNo
Thread size 11 11/16-12 UN
Working pressure max BAR310
Working pressure max PSI4500
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

24211-20-16TZ: frequently asked questions

When can 24211-20-16TZ be shipped?

24211-20-16TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24211-20-16TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24211-20-16TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24211-20-16TZ, subject to availability and destination.
