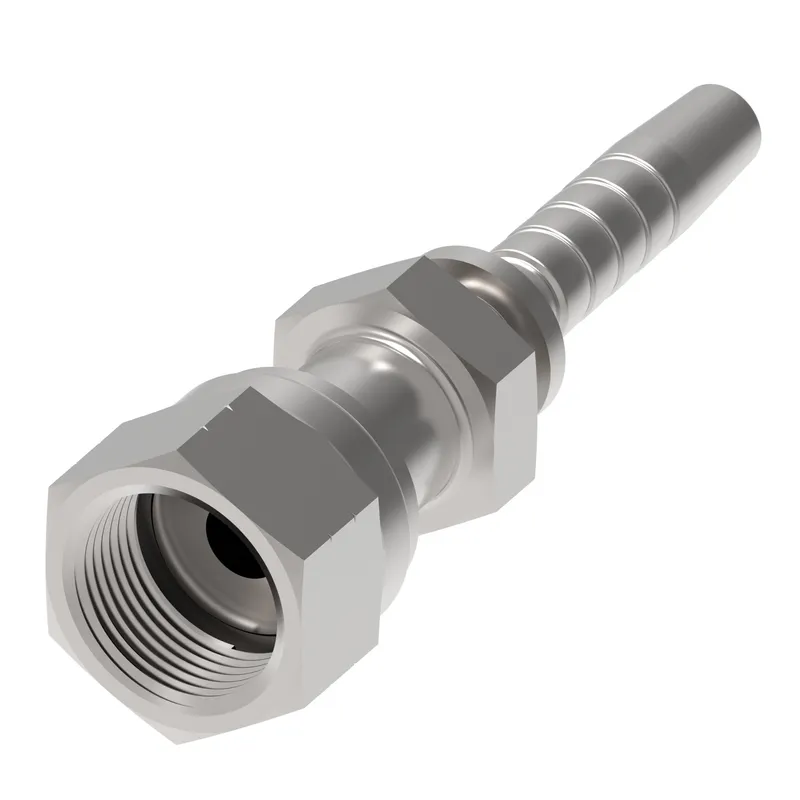

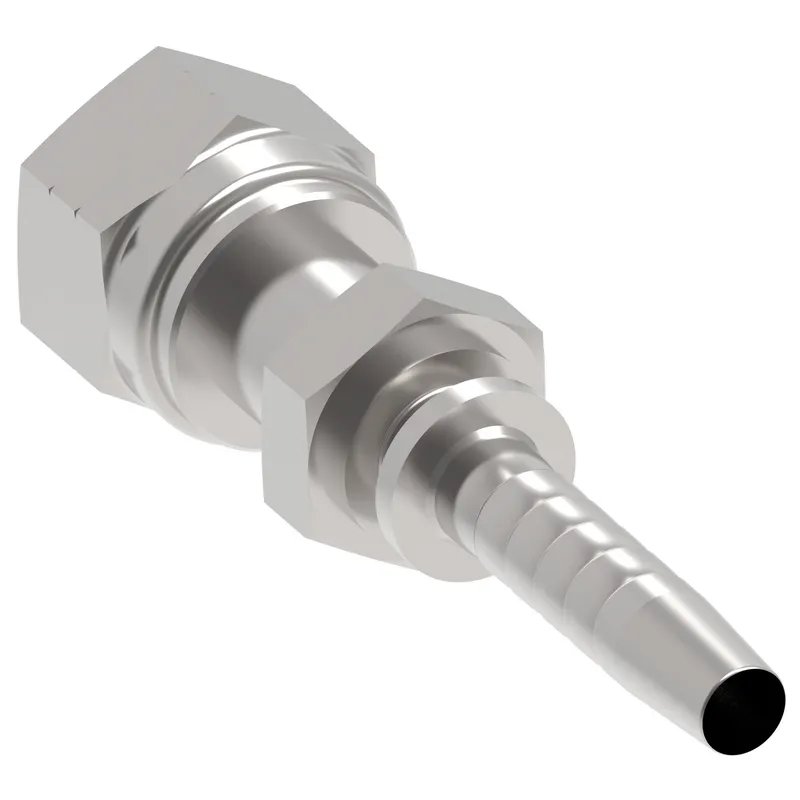

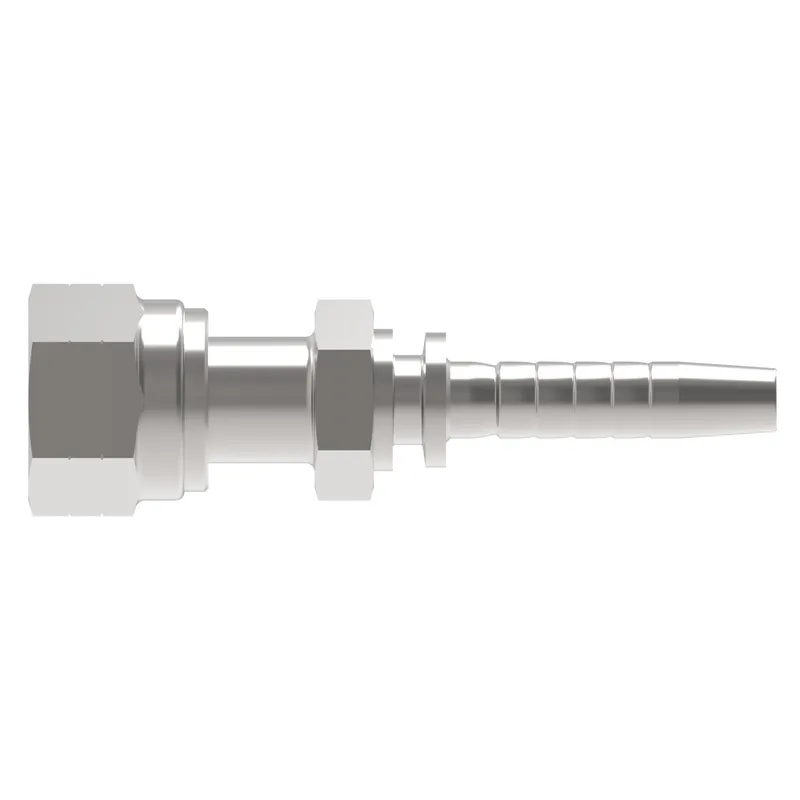

Danfoss 24211D-04-04ZF

HOSE NIPPLE ASSY,2P/04,ORS-F/04,CS,STR

MPN
24211D-04-04ZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24211D-04-04ZF?

Danfoss HOSE NIPPLE ASSY,2P/04,ORS-F/04,CS,STR, manufacturer part number 24211D-04-04ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146191823
A dimension IN2.204
A dimension MM56.000
Angle shapeStraight
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible hoses EC110, EC115, EC210, EC215
Construction StyleCrimp
End size 1-4
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN0.669
Hex size 1 MM17.000
Hex size 2 IN0.748
Hex size 2 MM19.000
Hose cut off factor IN1.102
Hose cut off factor MM28.000
Hose size-4
Inside diameter IN0.160
Inside diameter MM4.000
Product height in0.862
Product height mm21.898
Product length in1.988
Product length mm50.500
Product materialCarbon steel
Product width in0.748
Product width mm18.999
Thread sealantNo
Thread size 19/16-18 UNF
Working pressure max BAR621
Working pressure max PSI9100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
