Danfoss 20791Y-39-16Z

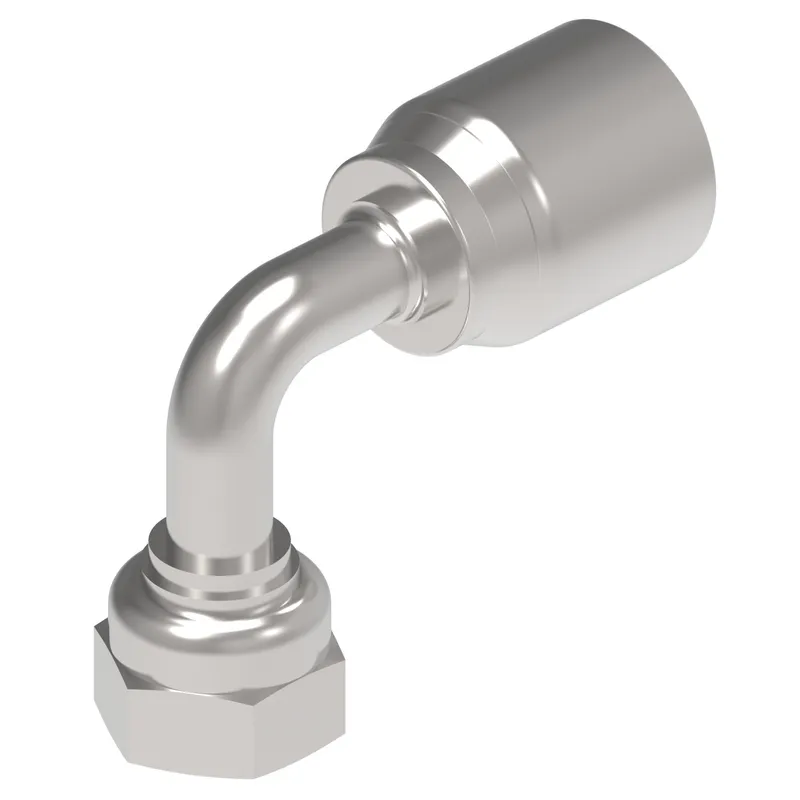

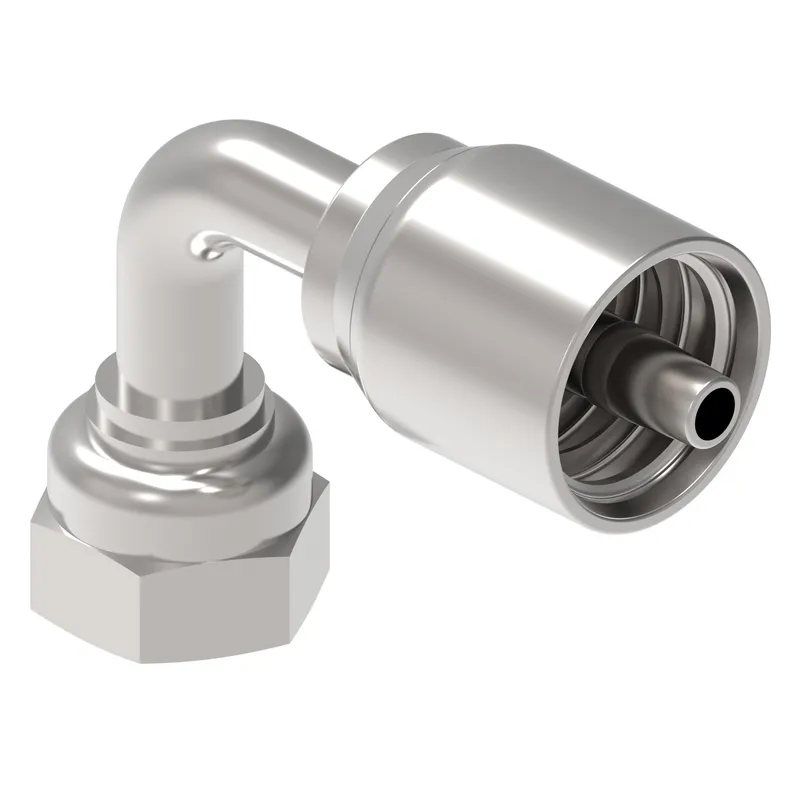

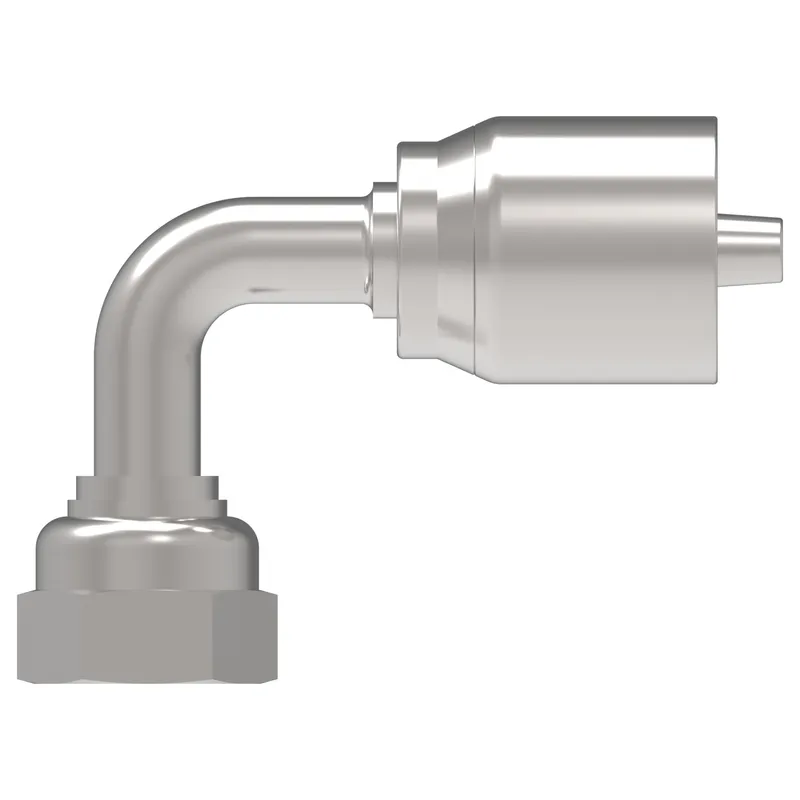

HOSE NIPPLE ASSY,1P/16,MJIC-F/39,CS,90D

MPN: 20791Y-39-16Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20791Y-39-16Z?

Danfoss HOSE NIPPLE ASSY,1P/16,MJIC-F/39,CS,90D, manufacturer part number 20791Y-39-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.920
A dimension MM	125.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	2.770
Drop dimension MM	70.50
Finish plating	Zinc plating
Hex size 1 IN	1.810
Hex size 1 MM	45.974
Hex size 2 IN	1.811
Hex size 2 MM	45.999
Hose cut off factor IN	3.070
Hose cut off factor MM	78.000
Hose size	-16
Inside diameter IN	0.820
Inside diameter MM	21.000
Product height in	5.196
Product height mm	131.978
Product length in	5.826
Product length mm	147.980
Product material	Carbon steel
Product width in	1.929
Product width mm	48.996
Thread sealant	No
Thread size 1	M39x2
