Danfoss 20791Y-27-10Z

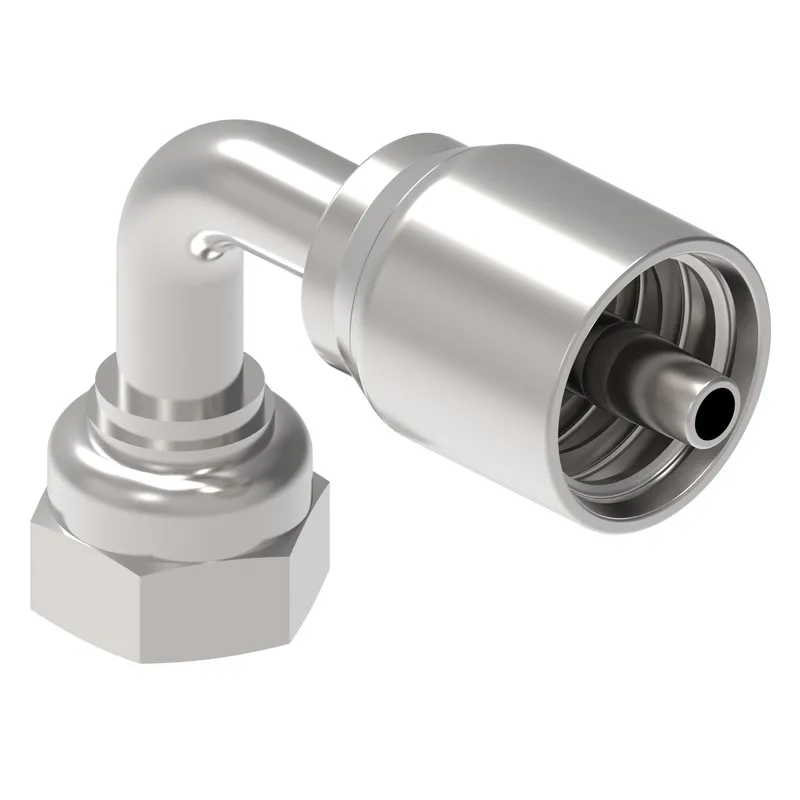

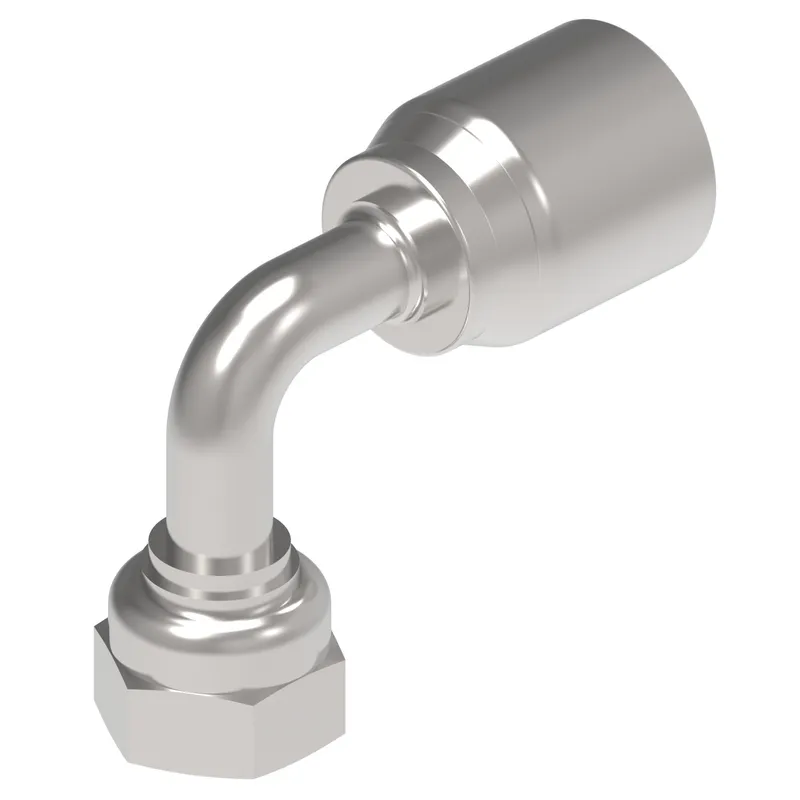

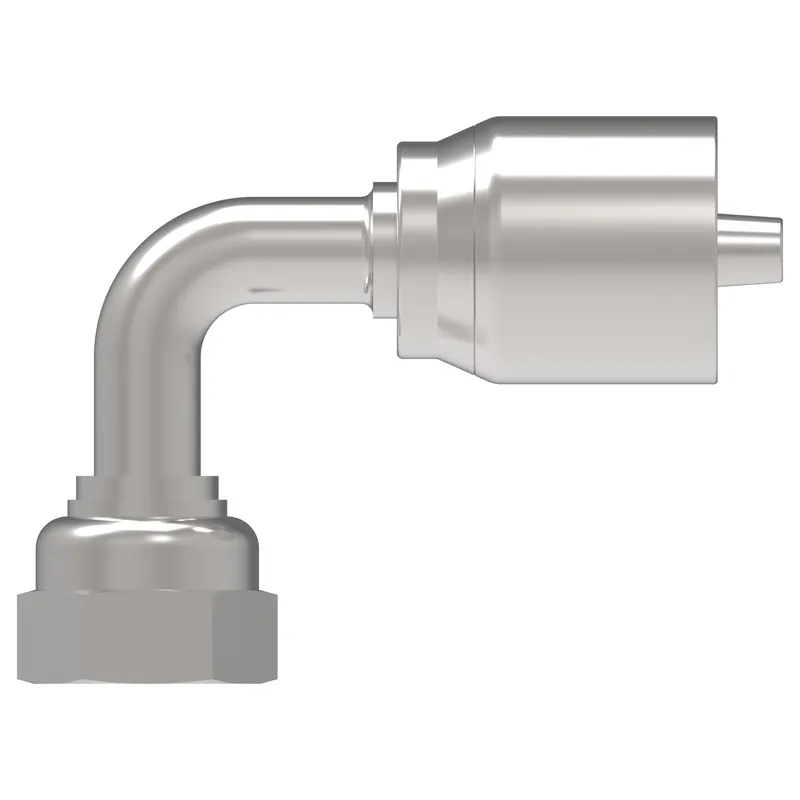

HOSE NIPPLE ASSY,1P/10,MJIC-F/27,CS,90D

MPN: 20791Y-27-10Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20791Y-27-10Z?

Danfoss HOSE NIPPLE ASSY,1P/10,MJIC-F/27,CS,90D, manufacturer part number 20791Y-27-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.540
A dimension MM	90.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	2.120
Drop dimension MM	54.00
Finish plating	Zinc plating
Hex size 1 IN	1.260
Hex size 1 MM	32.004
Hex size 2 IN	1.260
Hex size 2 MM	32.004
Hose cut off factor IN	2.200
Hose cut off factor MM	56.000
Hose size	-10
Inside diameter IN	0.470
Inside diameter MM	12.000
Product height in	3.889
Product height mm	98.780
Product length in	4.173
Product length mm	105.994
Product material	Carbon steel
Product width in	1.401
Product width mm	35.585
Thread sealant	No
Thread size 1	M27x1.5

20791Y-27-10Z: frequently asked questions

When can 20791Y-27-10Z be shipped?

20791Y-27-10Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20791Y-27-10Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20791Y-27-10Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20791Y-27-10Z, subject to availability and destination.
