Danfoss 20791Y-14-04Z

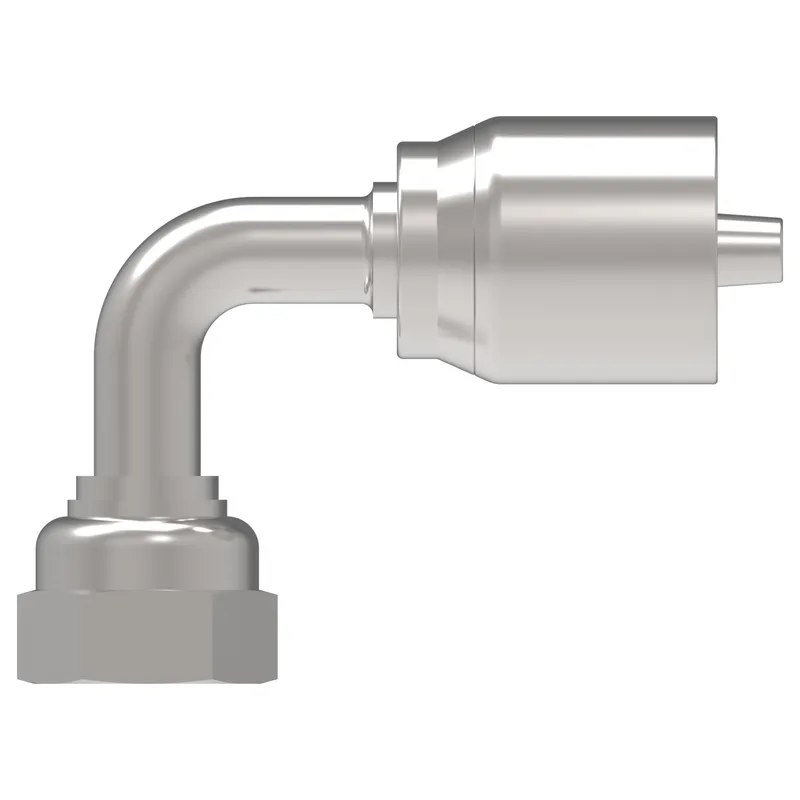

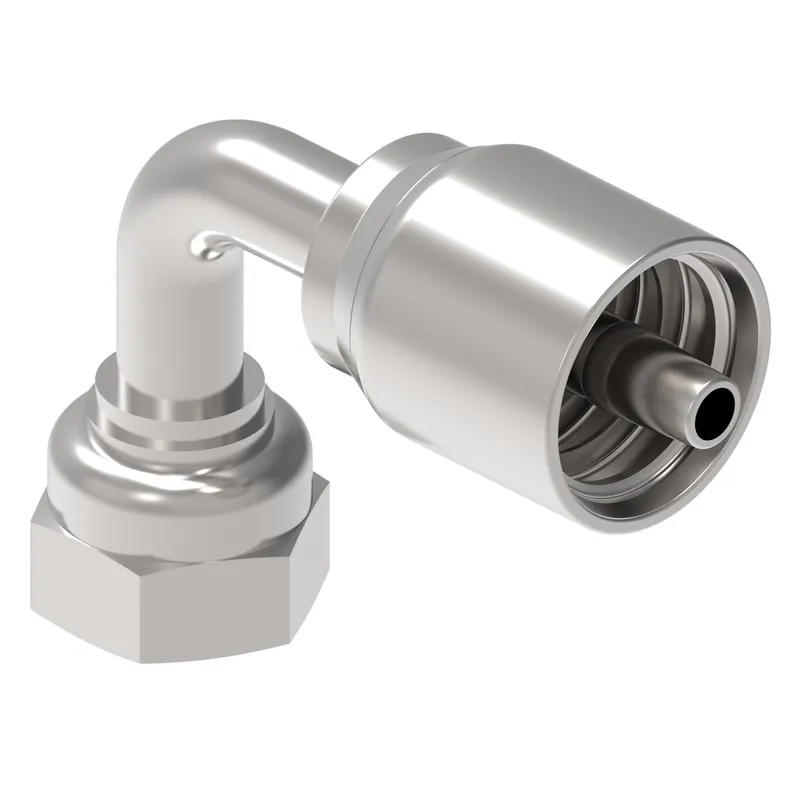

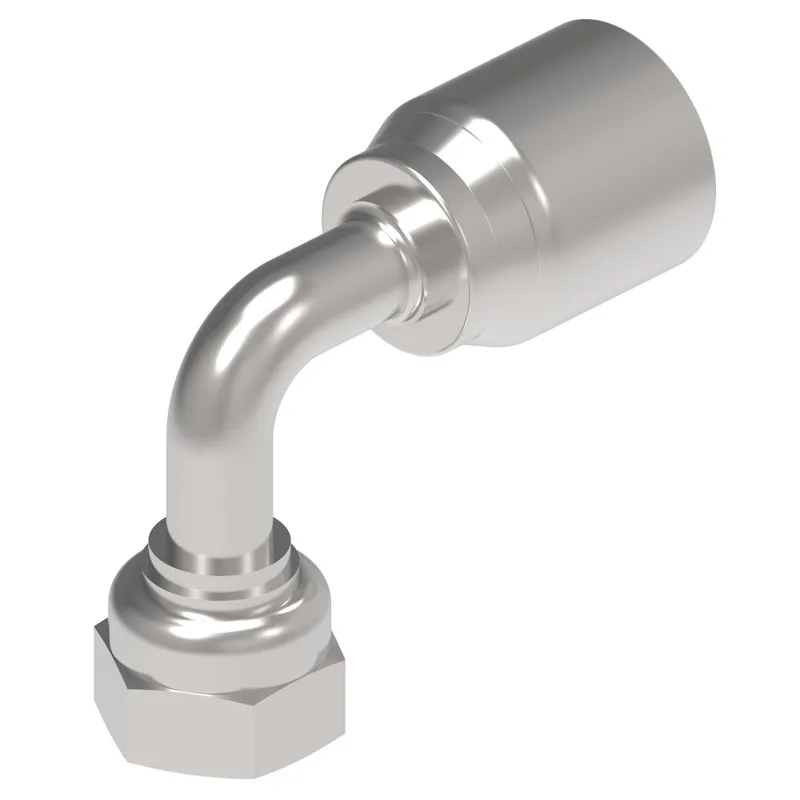

HOSE NIPPLE ASSY,1P/04,JIC-F/14,CS,90D

MPN: 20791Y-14-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20791Y-14-04Z?

Danfoss HOSE NIPPLE ASSY,1P/04,JIC-F/14,CS,90D, manufacturer part number 20791Y-14-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.280
A dimension MM	58.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	1.310
Drop dimension MM	33.50
Finish plating	Zinc plating
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Hex size 2 IN	0.748
Hex size 2 MM	18.999
Hose cut off factor IN	1.180
Hose cut off factor MM	30.000
Hose size	-4
Inside diameter IN	0.157
Inside diameter MM	4.000
Product height in	2.574
Product height mm	65.379
Product length in	2.657
Product length mm	67.487
Product material	Carbon steel
Product width in	0.897
Product width mm	22.783
Thread sealant	No
Thread size 1	M14x1.5

20791Y-14-04Z: frequently asked questions

When can 20791Y-14-04Z be shipped?

20791Y-14-04Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20791Y-14-04Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20791Y-14-04Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20791Y-14-04Z, subject to availability and destination.
