Home / Danfoss (Drives) / HOSE NIPPLE ASSY,2P/12,M60D-F/30,CS,90D
Available on request

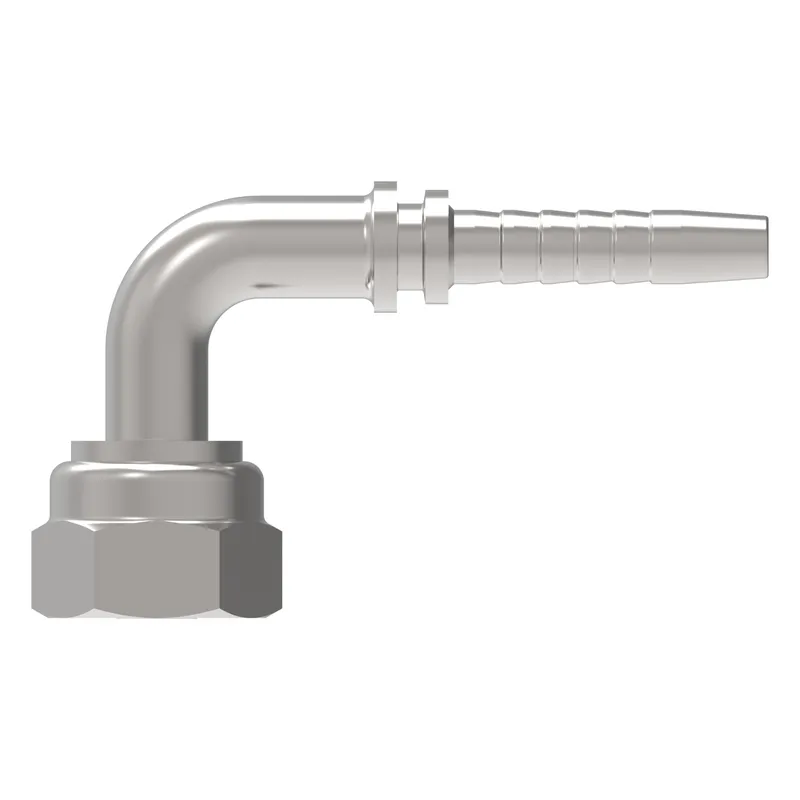

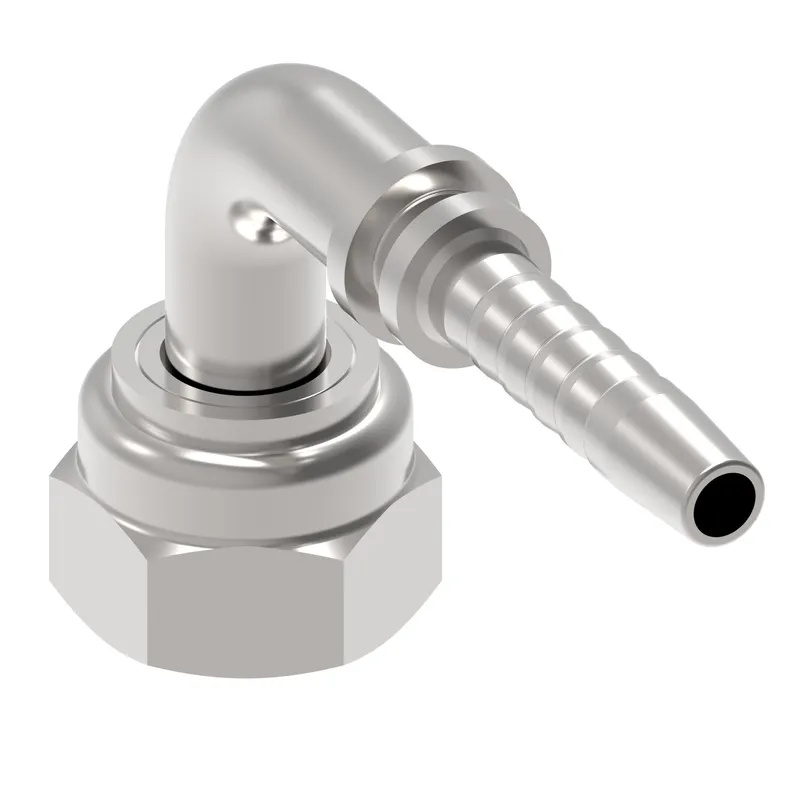

HOSE NIPPLE ASSY,2P/12,M60D-F/30,CS,90D

MPN: 20691-30-12Z · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryBraided hose and fittings
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 20691-30-12Z be shipped?

20691-30-12Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20691-30-12Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20691-30-12Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20691-30-12Z, subject to availability and destination.

Danfoss HOSE NIPPLE ASSY,2P/12,M60D-F/30,CS,90D, manufacturer part number 20691-30-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.120
A dimension MM104.700
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Construction StyleCrimp
Drop dimension IN2.670
Drop dimension MM68.00
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN1.420
Hex size 1 MM36.068
Hose cut off factor IN2.600
Hose cut off factor MM66.200
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in3.209
Product height mm81.508
Product length in4.663
Product length mm118.440
Product materialCarbon steel
Product width in1.420
Product width mm36.068
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M30x1.5
