Danfoss 20691-16-05Z

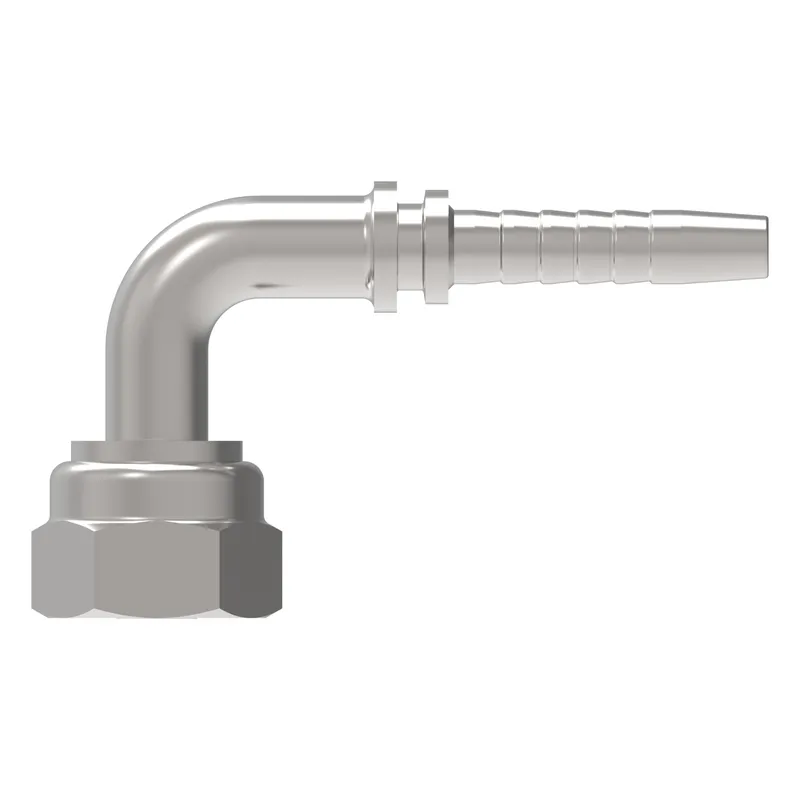

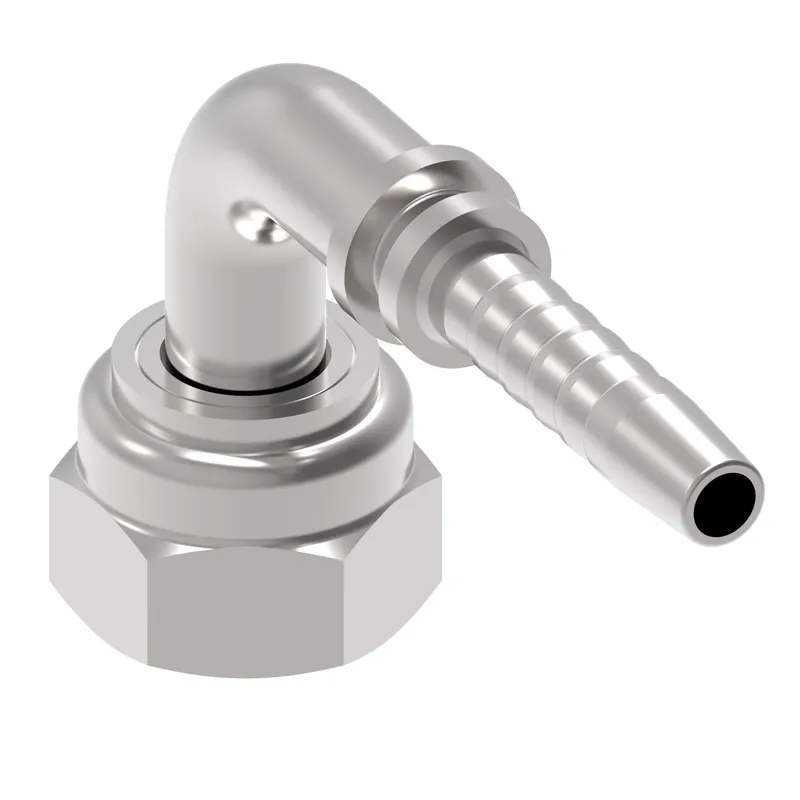

HOSE NIPPLE ASSY,2P/05,M60D-F/16,CS,90D

MPN: 20691-16-05Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20691-16-05Z?

Danfoss HOSE NIPPLE ASSY,2P/05,M60D-F/16,CS,90D, manufacturer part number 20691-16-05Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.400
A dimension MM	61.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
Drop dimension IN	1.590
Drop dimension MM	40.50
End size 1	-16
Finish plating	Zinc plating
Hex size 1 IN	0.870
Hex size 1 MM	22.098
Hex size 2 IN	0.866
Hex size 2 MM	21.996
Hose cut off factor IN	1.299
Hose cut off factor MM	33.000
Hose size	-5
Inside diameter IN	0.216
Inside diameter MM	5.500
Product height in	2.086
Product height mm	52.984
Product length in	2.900
Product length mm	73.660
Product material	Carbon steel
Product width in	0.866
Product width mm	21.996
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M16x1.5

20691-16-05Z: frequently asked questions

When can 20691-16-05Z be shipped?

20691-16-05Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20691-16-05Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20691-16-05Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20691-16-05Z, subject to availability and destination.
