Danfoss 20611-20-06TZ

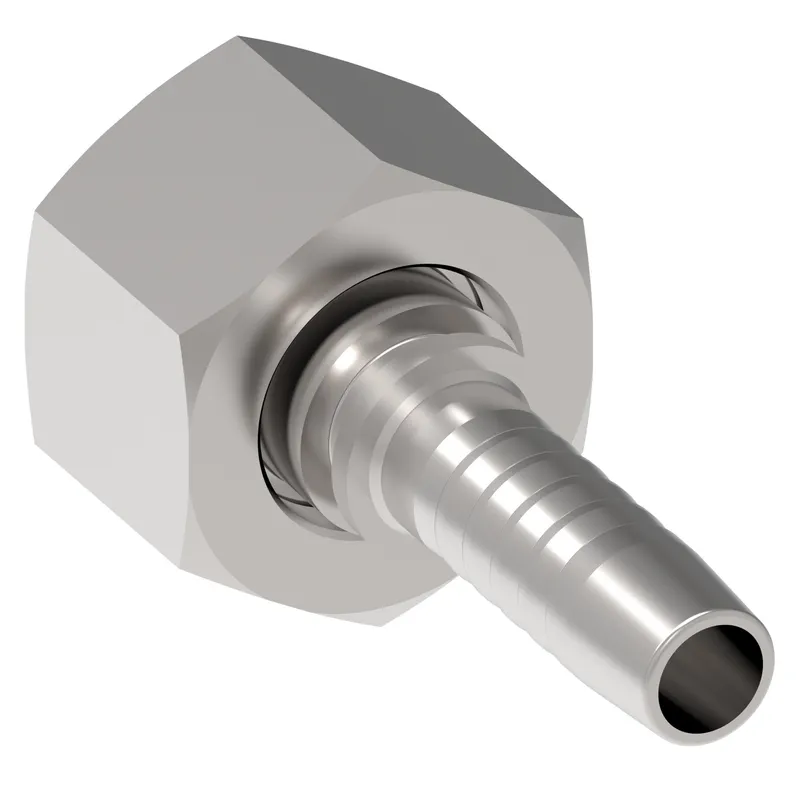

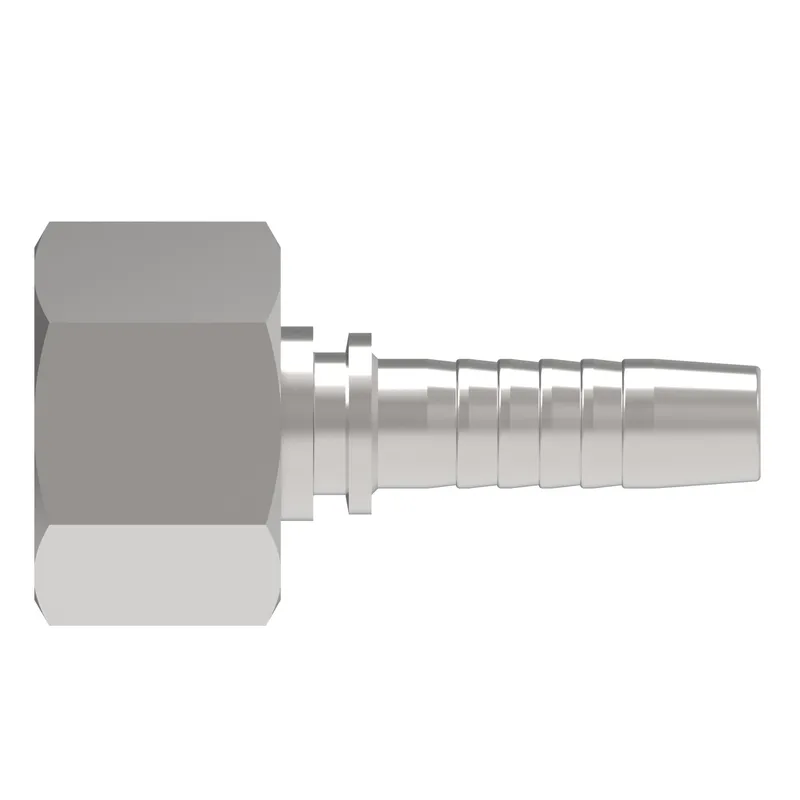

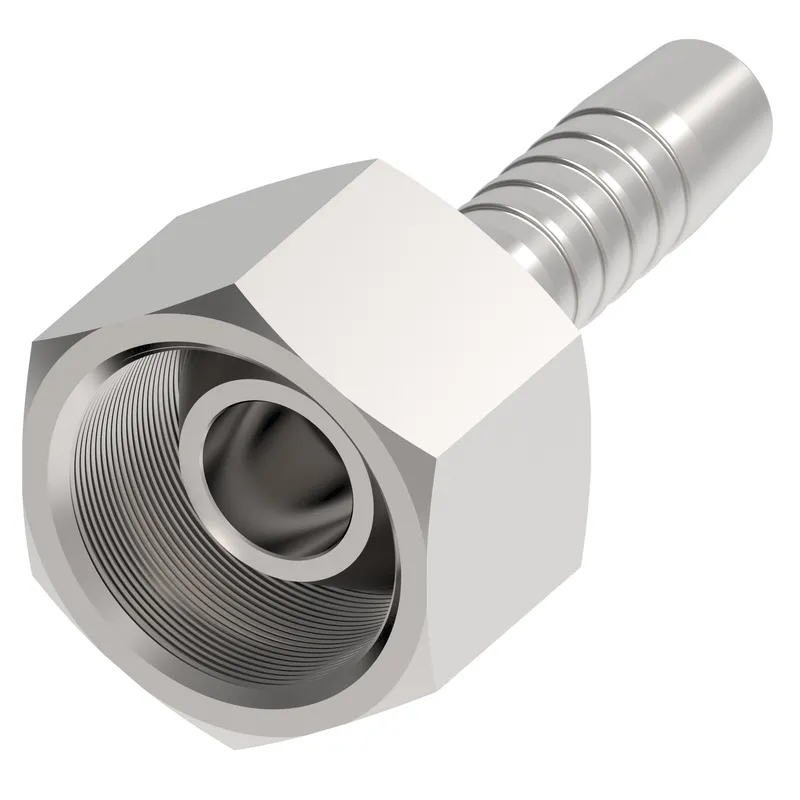

HOSE NIPPLE ASSY,2P/06,M60D-F/20,CS,STR

MPN: 20611-20-06TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20611-20-06TZ?

Danfoss HOSE NIPPLE ASSY,2P/06,M60D-F/20,CS,STR, manufacturer part number 20611-20-06TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.909
A dimension MM	48.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Finish plating	Zinc plating
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hex size 2 IN	1.063
Hex size 2 MM	27.000
Hose cut off factor IN	0.728
Hose cut off factor MM	18.500
Hose size	-6
Inside diameter IN	0.275
Inside diameter MM	7.000
Product height in	1.220
Product height mm	30.988
Product length in	2.190
Product length mm	55.626
Product material	Carbon steel
Product width in	1.063
Product width mm	27
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M20x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
