Danfoss 20611-18-06Z

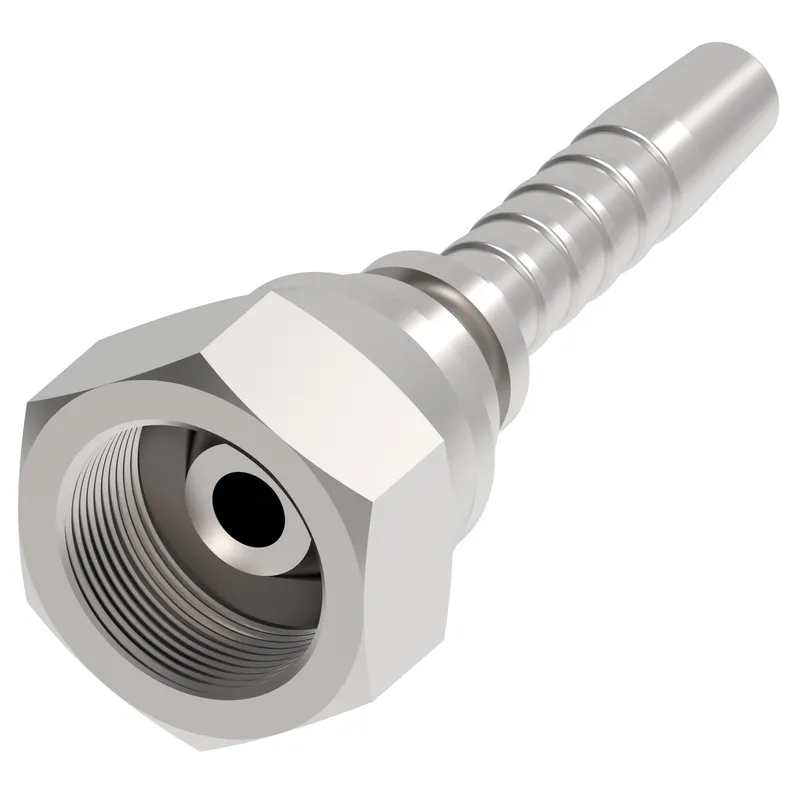

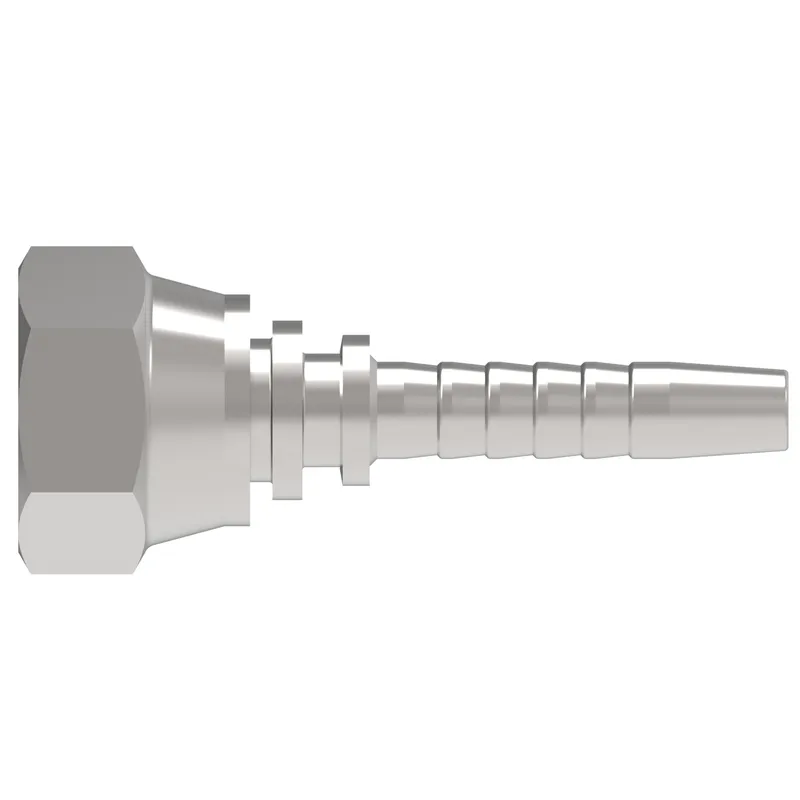

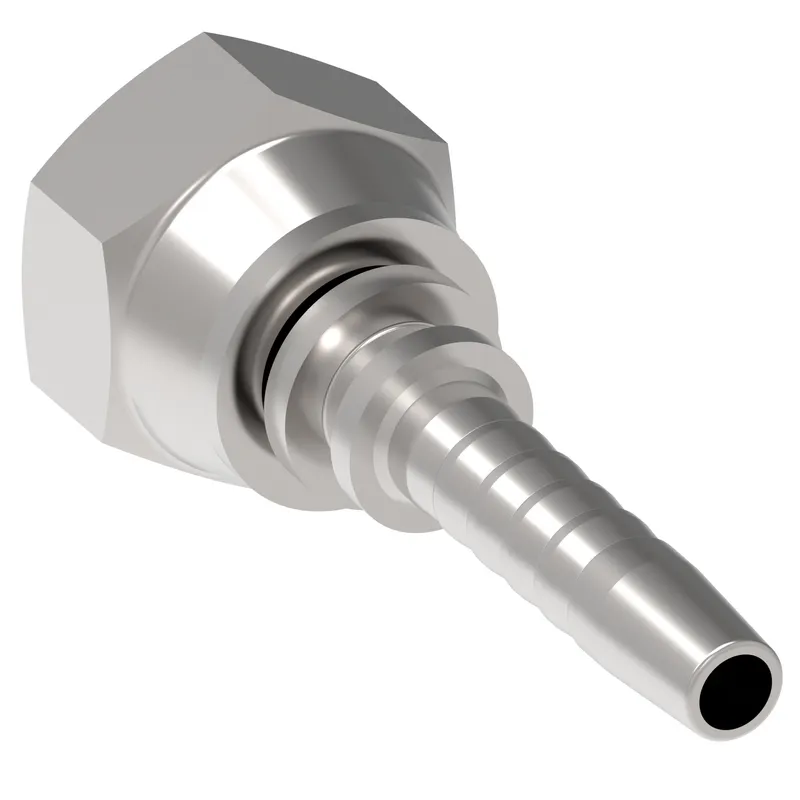

HOSE NIPPLE ASSY,2P/06,M60D-F/18,CS,STR

MPN: 20611-18-06Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20611-18-06Z?

Danfoss HOSE NIPPLE ASSY,2P/06,M60D-F/18,CS,STR, manufacturer part number 20611-18-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.968
A dimension MM	50.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Finish plating	Zinc plating
Hex size 1 IN	0.940
Hex size 1 MM	23.876
Hose cut off factor IN	0.787
Hose cut off factor MM	20.000
Hose size	-6
Inside diameter IN	0.275
Inside diameter MM	7.000
Product height in	1.080
Product height mm	27.432
Product length in	1.969
Product length mm	50.012
Product material	Carbon steel
Product width in	0.940
Product width mm	23.876
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M18x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
