Danfoss 20611-26-10Z

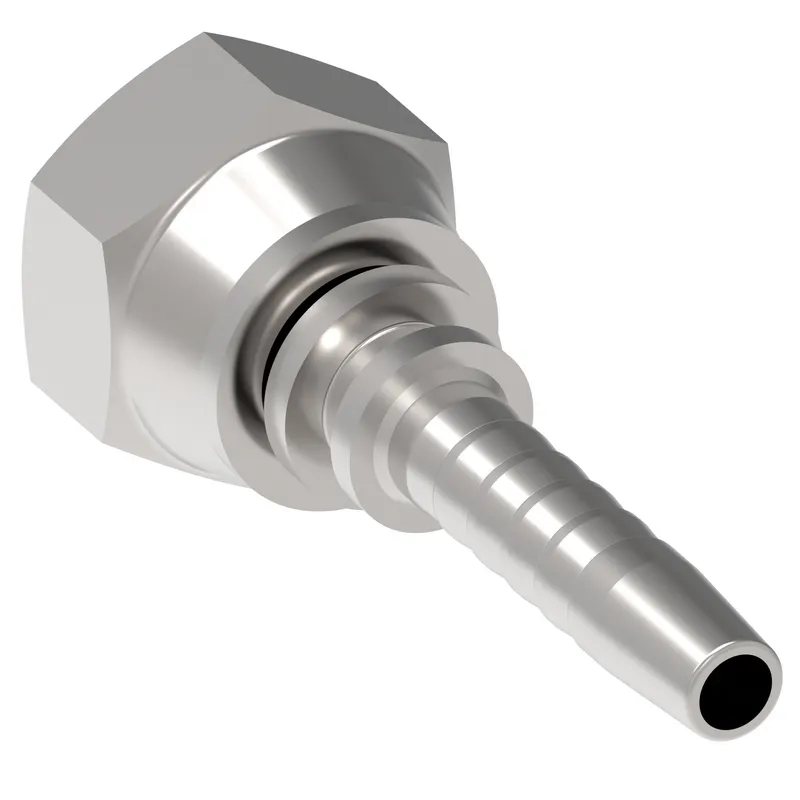

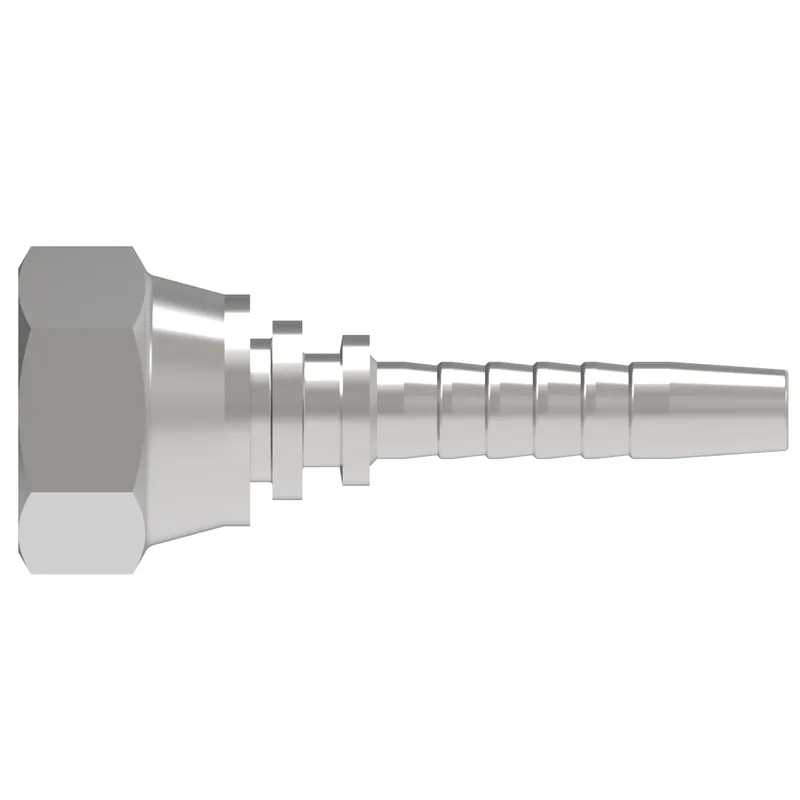

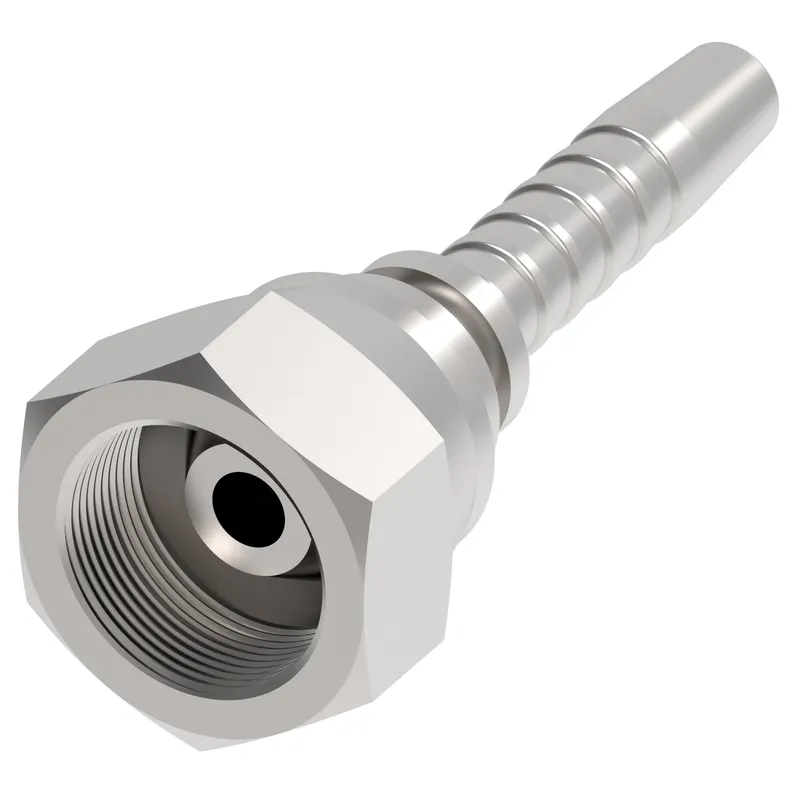

HOSE NIPPLE ASSY,2P/10,M60D-F/26,CS,STR

MPN: 20611-26-10Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20611-26-10Z?

Danfoss HOSE NIPPLE ASSY,2P/10,M60D-F/26,CS,STR, manufacturer part number 20611-26-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.303
A dimension MM	58.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Finish plating	Zinc plating
Hex size 1 IN	1.260
Hex size 1 MM	32.000
Hose cut off factor IN	0.964
Hose cut off factor MM	24.500
Hose size	-10
Inside diameter IN	0.472
Inside diameter MM	12.000
Product height in	1.440
Product height mm	36.576
Product length in	2.303
Product length mm	58.496
Product material	Carbon steel
Product width in	1.250
Product width mm	31.75
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M26x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
