Danfoss 20411-14-04SRW

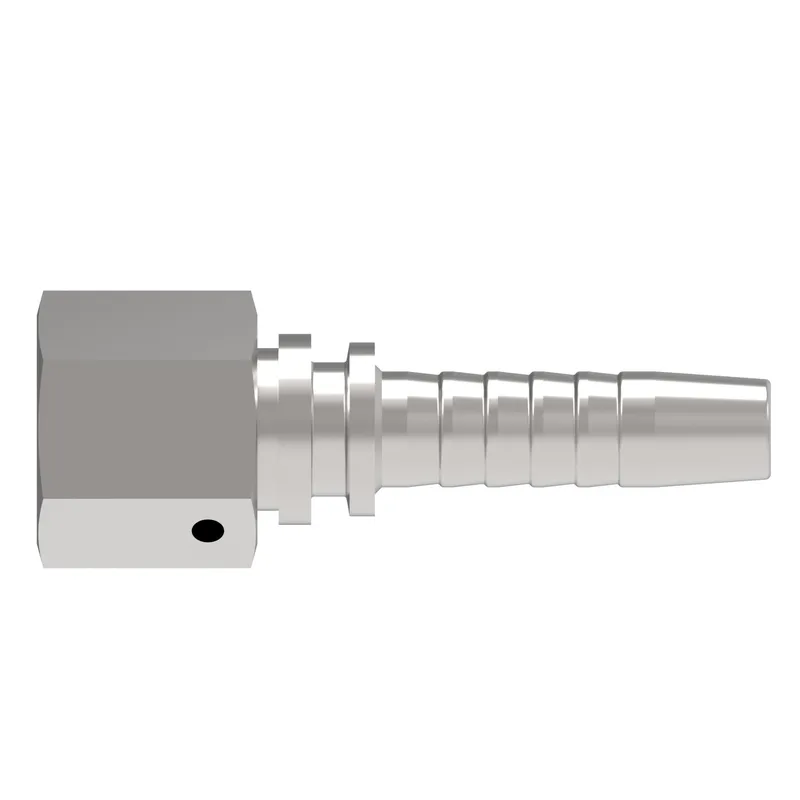

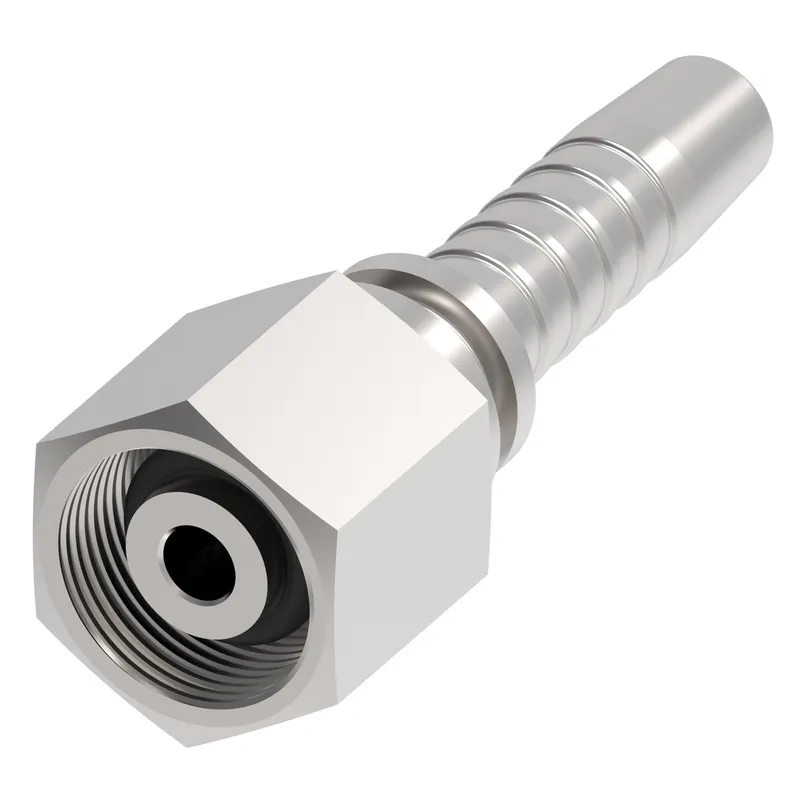

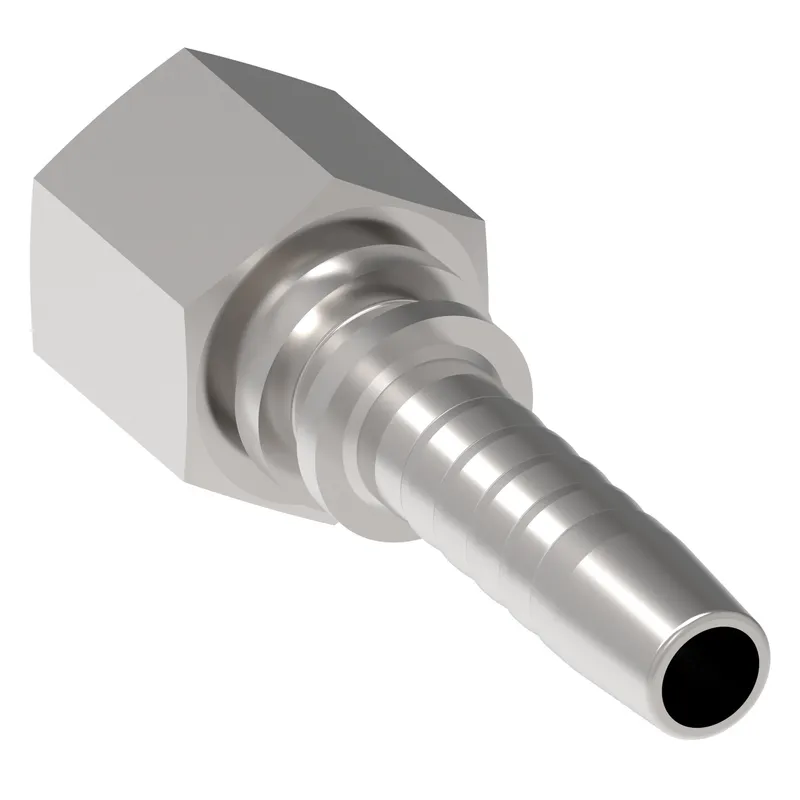

HOSE NIPPLE ASSY,2P/04,DKOL/14,AN,STR

MPN: 20411-14-04SRW
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20411-14-04SRW?

Danfoss HOSE NIPPLE ASSY,2P/04,DKOL/14,AN,STR, manufacturer part number 20411-14-04SRW. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.988
A dimension MM	50.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End Type 1	24 deg. DKO swivel light duty
End Type 2	Line/hose/tube
Hex size 1 IN	0.670
Hex size 1 MM	17.018
Hose cut off factor IN	0.885
Hose cut off factor MM	22.500
Hose size	-4
Inside diameter IN	0.160
Inside diameter MM	4.000
Product height in	0.770
Product height mm	19.558
Product length in	2.250
Product length mm	57.150
Product material	304 Stainless steel
Product width in	0.670
Product width mm	17.018
Thread sealant	No
Thread size 1	M14x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
