Danfoss 20411-12-04WZN

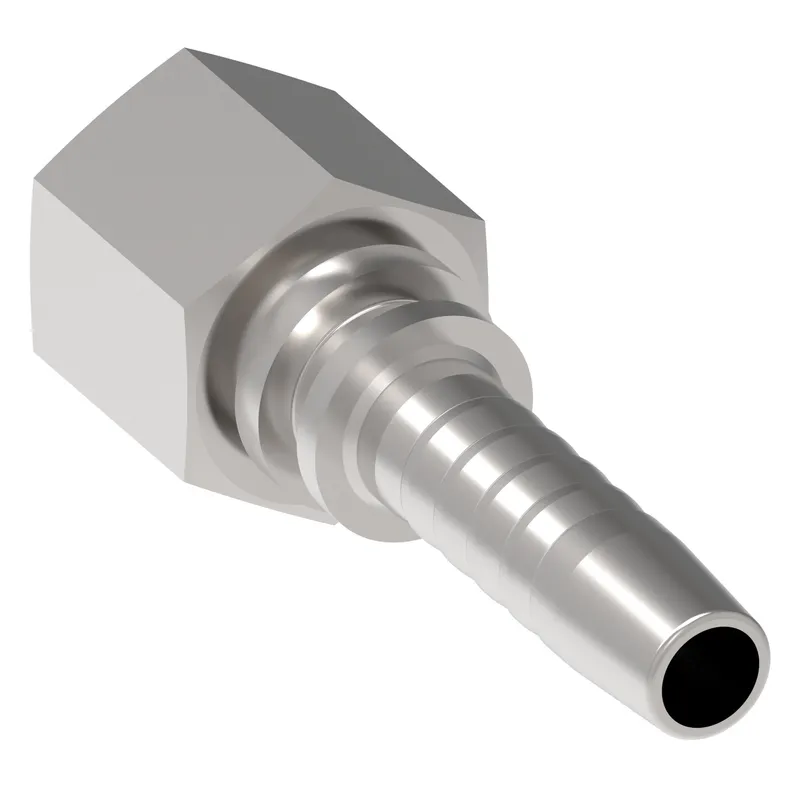

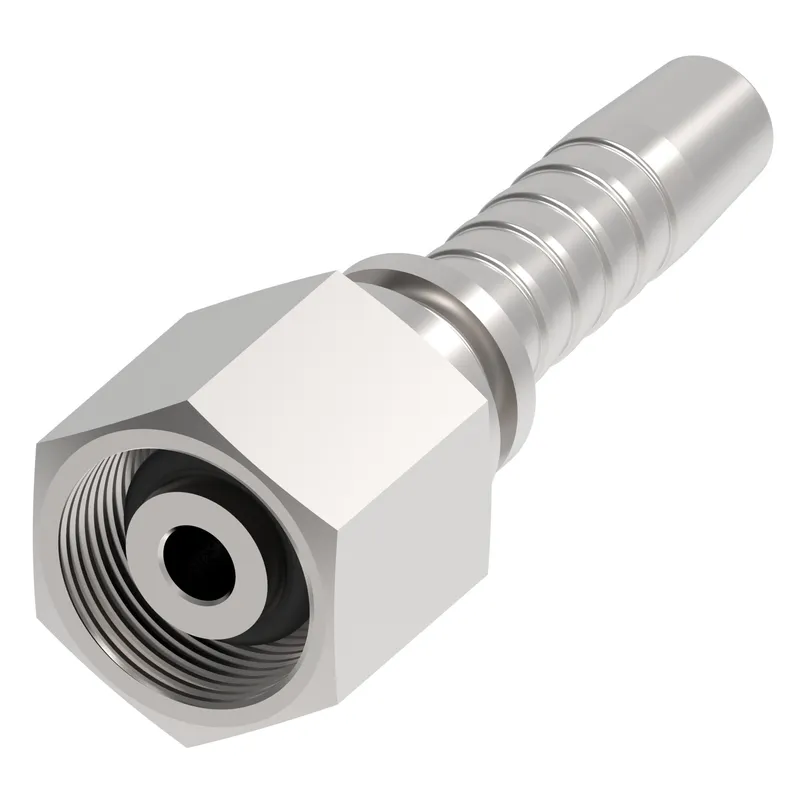

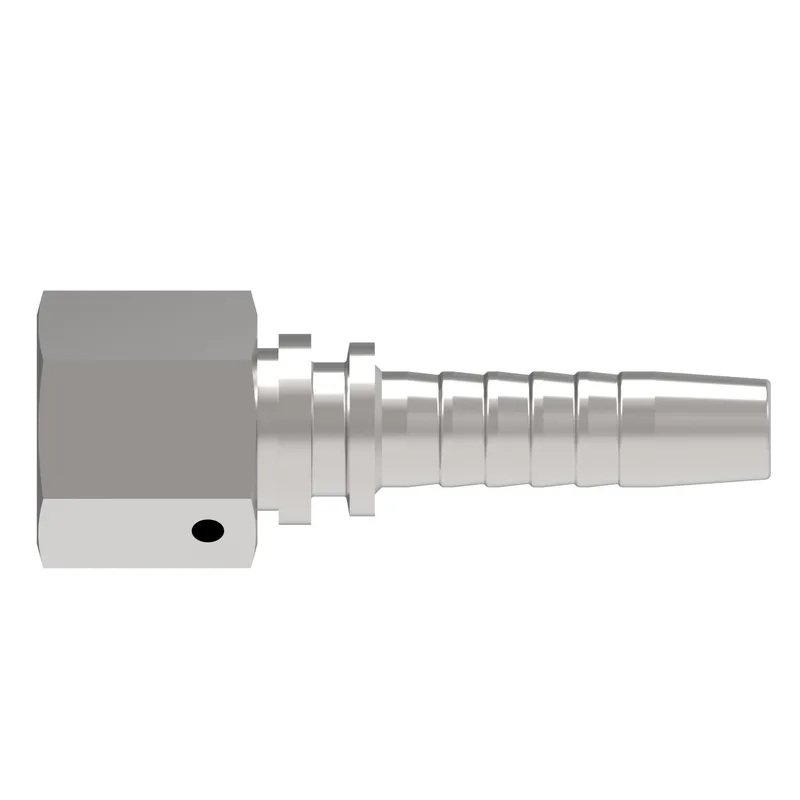

HOSE NIPPLE ASSY,2P/04,DKOL/12,CS,STR

MPN: 20411-12-04WZN
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20411-12-04WZN?

Danfoss HOSE NIPPLE ASSY,2P/04,DKOL/12,CS,STR, manufacturer part number 20411-12-04WZN. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.970
A dimension MM	50.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End connection torque	15-16 lb-ft(20-22 Nm)
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc nickel
Hex size 1 IN	0.670
Hex size 1 MM	17.018
Hex size 2 IN	0.669
Hex size 2 MM	16.993
Hose cut off factor IN	0.870
Hose cut off factor MM	22.000
Hose size	-4
Inside diameter IN	0.160
Inside diameter MM	4.000
Product height in	0.770
Product height mm	19.558
Product length in	2.023
Product length mm	51.384
Product material	Carbon steel
Product width in	0.670
Product width mm	17.018
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M12x1.5

20411-12-04WZN: frequently asked questions

When can 20411-12-04WZN be shipped?

20411-12-04WZN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20411-12-04WZN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20411-12-04WZN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20411-12-04WZN, subject to availability and destination.
