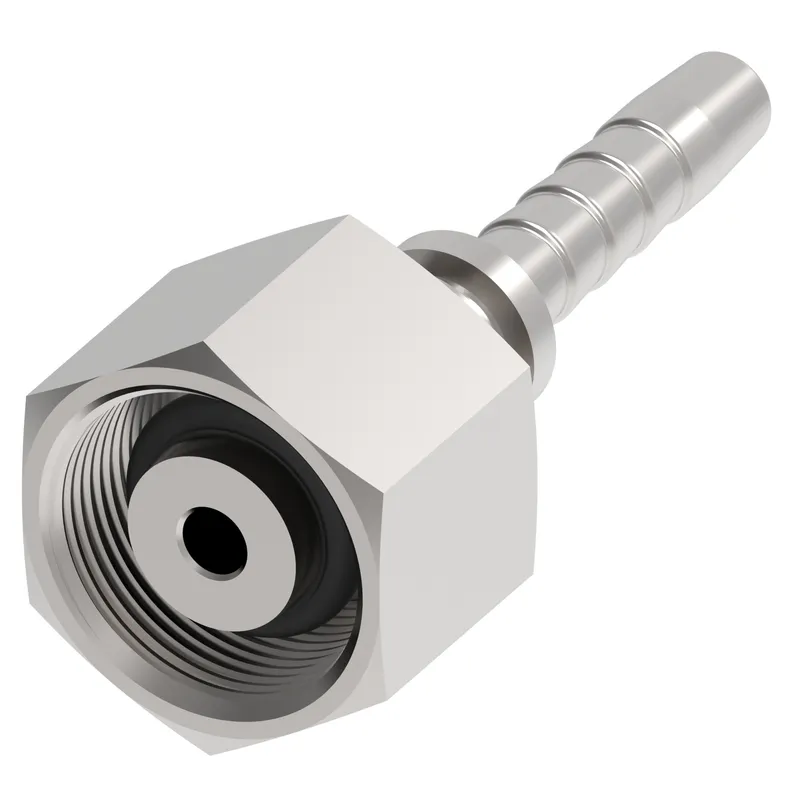

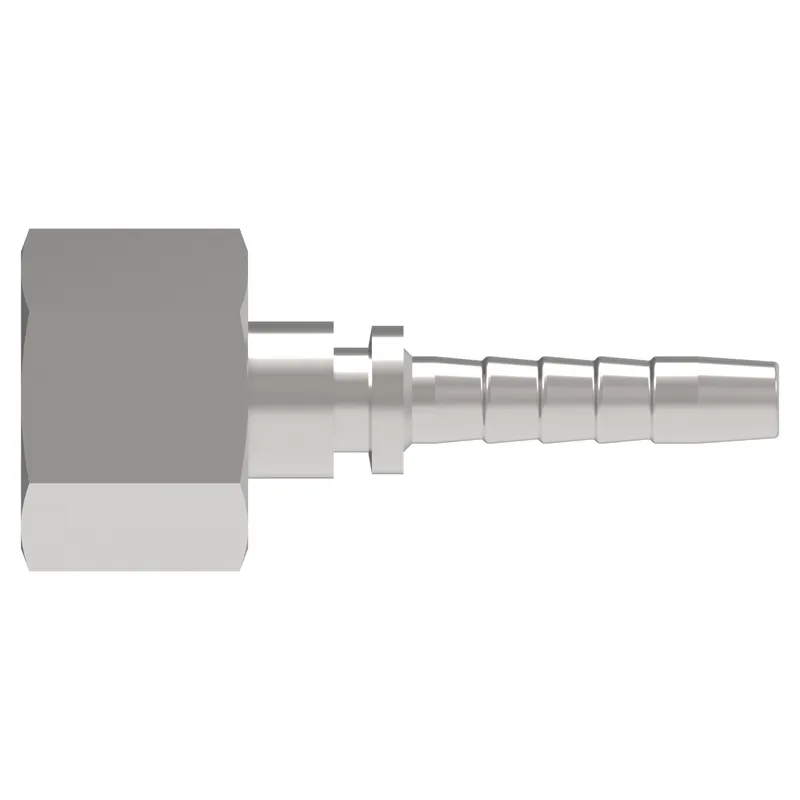

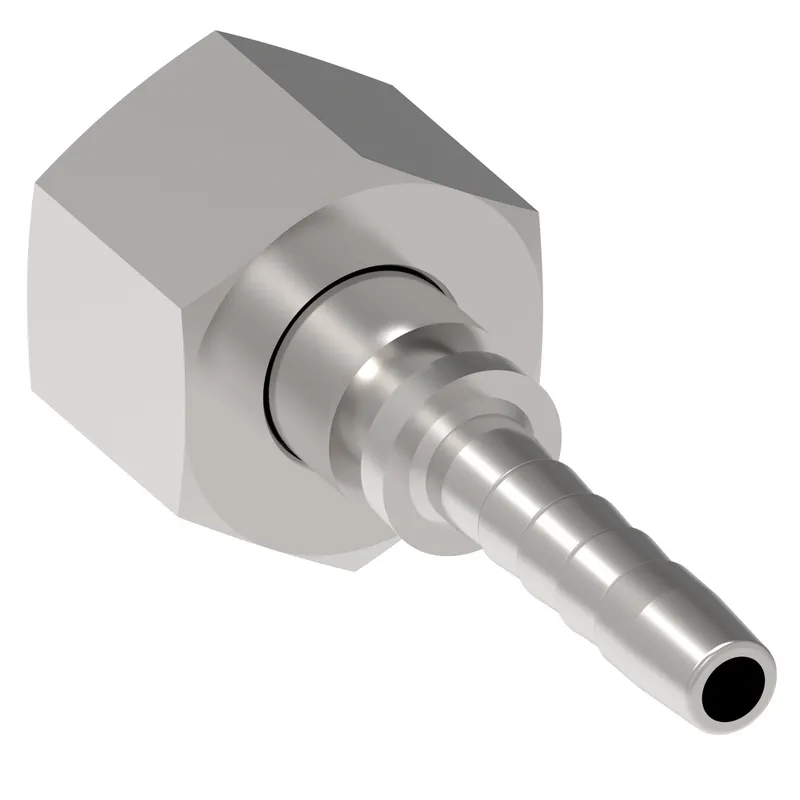

HOSE NIPPLE ASSY,2P/03,DKOL/14,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20411-14-03TZ be shipped?
20411-14-03TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20411-14-03TZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20411-14-03TZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20411-14-03TZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/03,DKOL/14,CS,STR, manufacturer part number 20411-14-03TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.673 |
| A dimension MM | 42.500 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.190 |
| Compatible hose ID MM | 4.800 |
| Construction Style | Crimp |
| End Type 1 | 24 deg. DKO swivel light duty |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.670 |
| Hex size 1 MM | 17.018 |
| Hose cut off factor IN | 0.826 |
| Hose cut off factor MM | 21.000 |
| Hose size | -3 |
| Inside diameter IN | 0.118 |
| Inside diameter MM | 3.000 |
| Product height in | 0.770 |
| Product height mm | 19.558 |
| Product length in | 1.678 |
| Product length mm | 42.621 |
| Product material | Carbon steel |
| Product width in | 0.670 |
| Product width mm | 17.018 |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
More Danfoss (Drives) parts
Available on requestHOSE NIPPLE ASSY,2P/04,DKOL/12,CS,STR
Available on requestHOSE NIPPLE ASSY,2P/04,DKOL/12,CS,STR
Available on requestHOSE NIPPLE ASSY,2P/04,DKOL/12,CS,STR

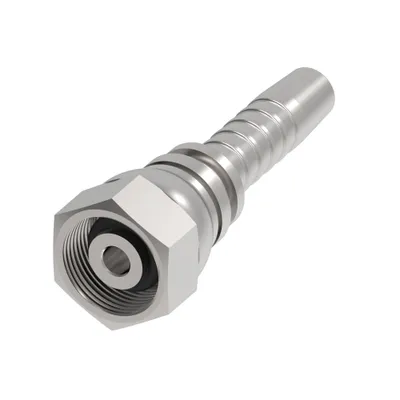

Available on requestHOSE NIPPLE ASSY,2P/06,DKOL/12,CS,STR
Available on requestHOSE NIPPLE ASSY,2P/04,DKOL/14,AN,STR

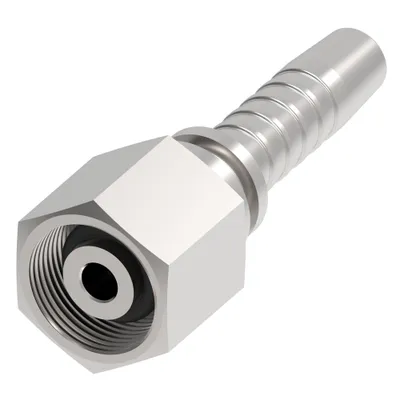

Available on requestHOSE NIPPLE ASSY,2P/04,DKOL/14,CS,STR
