Danfoss 20291-16-05Z

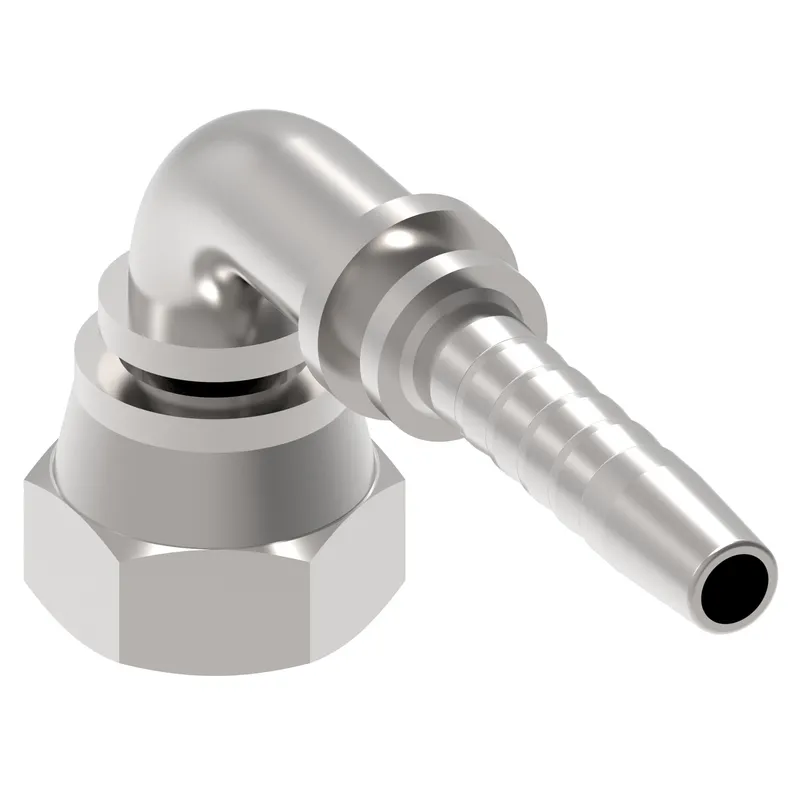

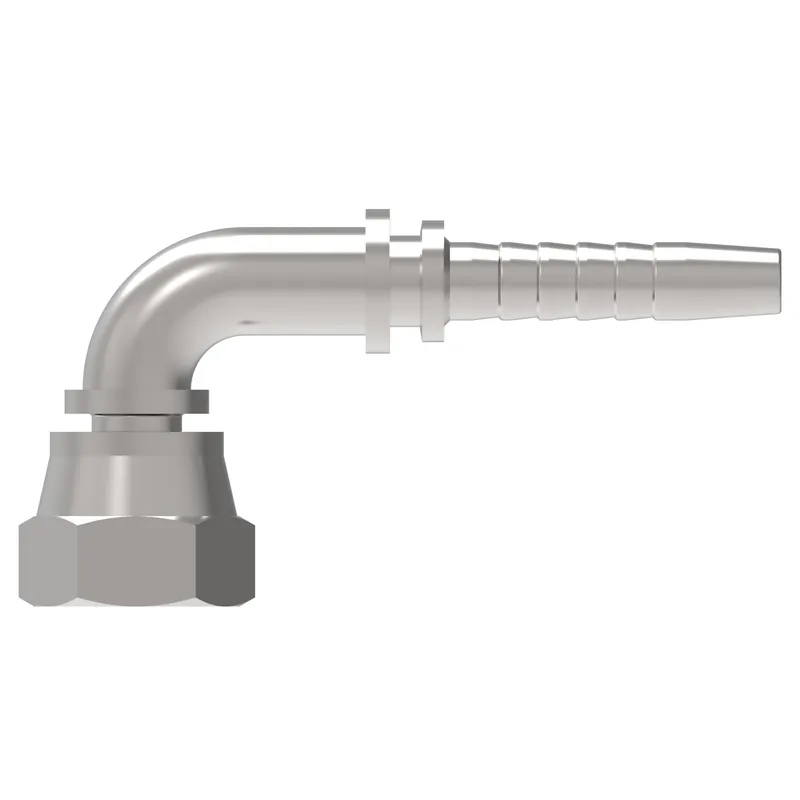

HOSE NIPPLE, 2P/05, MORFS-F/16, CS, 90D

MPN: 20291-16-05Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20291-16-05Z?

Danfoss HOSE NIPPLE, 2P/05, MORFS-F/16, CS, 90D, manufacturer part number 20291-16-05Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.401
A dimension MM	61.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
Drop dimension IN	1.496
Drop dimension MM	38.00
End size 2	-6
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	0.870
Hex size 1 MM	22.098
Hex size 2 IN	0.866
Hex size 2 MM	22.000
Hose cut off factor IN	1.299
Hose cut off factor MM	33.000
Hose size	-5
Inside diameter IN	0.216
Inside diameter MM	5.500
Product height in	2.200
Product height mm	55.880
Product length in	2.830
Product length mm	71.882
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M16x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
