Danfoss 20291-16-04Z

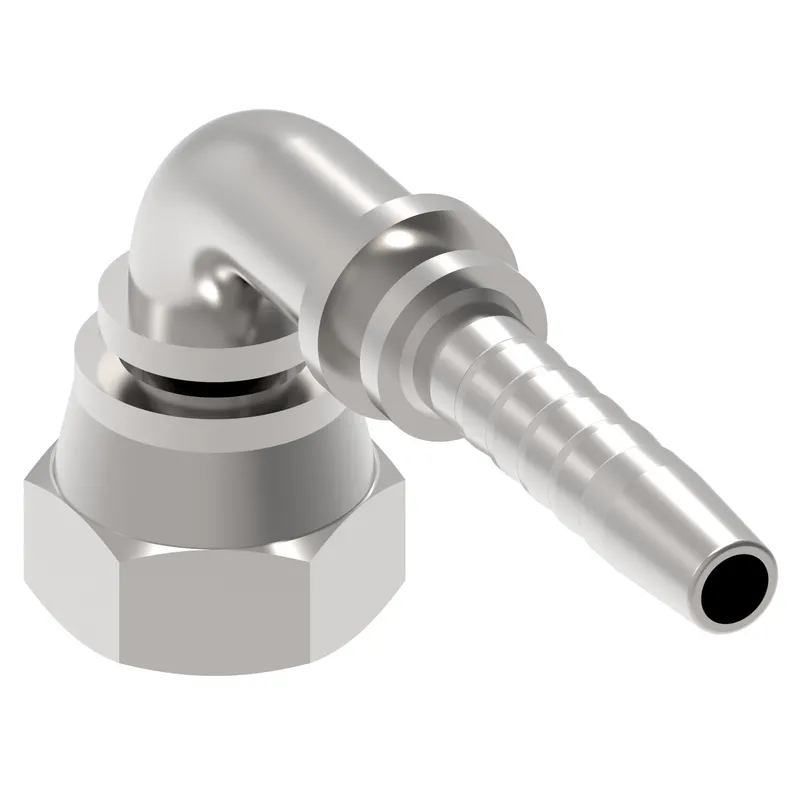

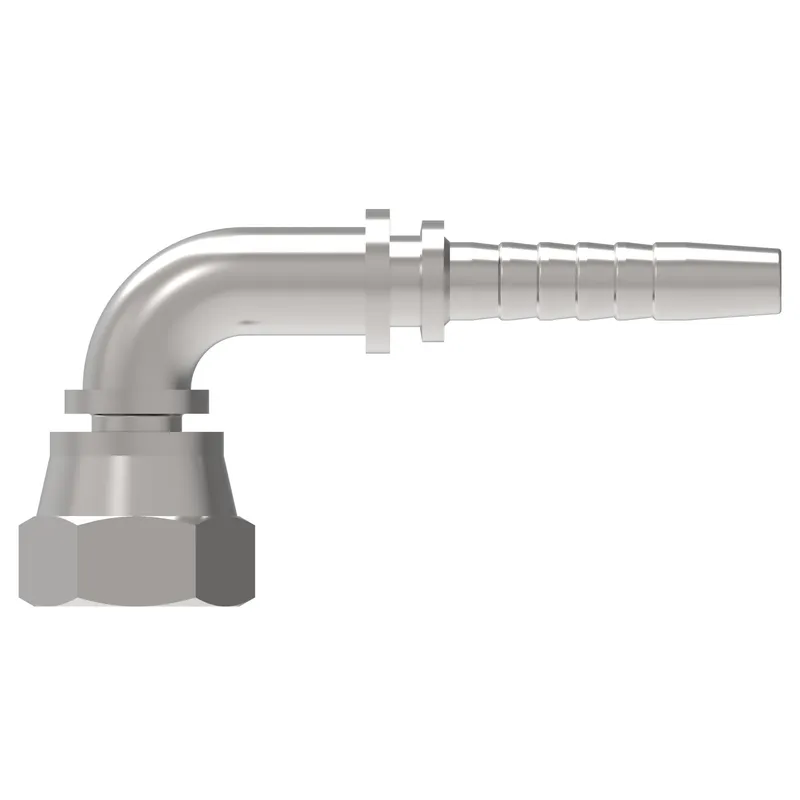

HOSE NIPPLE, 2P/04, MORFS-F/16, CS, 90D

MPN: 20291-16-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20291-16-04Z?

Danfoss HOSE NIPPLE, 2P/04, MORFS-F/16, CS, 90D, manufacturer part number 20291-16-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.283
A dimension MM	58.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Drop dimension IN	1.377
Drop dimension MM	35.00
End size 2	-4
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	0.870
Hex size 1 MM	22.098
Hex size 2 IN	0.866
Hex size 2 MM	22.000
Hose cut off factor IN	1.181
Hose cut off factor MM	30.000
Hose size	-4
Inside diameter IN	0.157
Inside diameter MM	4.000
Product height in	2.047
Product height mm	51.993
Product length in	2.700
Product length mm	68.580
Product material	Carbon steel
Product width in	0.866
Product width mm	21.996
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M16x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20291-16-04Z: frequently asked questions

When can 20291-16-04Z be shipped?

20291-16-04Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20291-16-04Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20291-16-04Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20291-16-04Z, subject to availability and destination.
