Danfoss 20211-27-08TZ

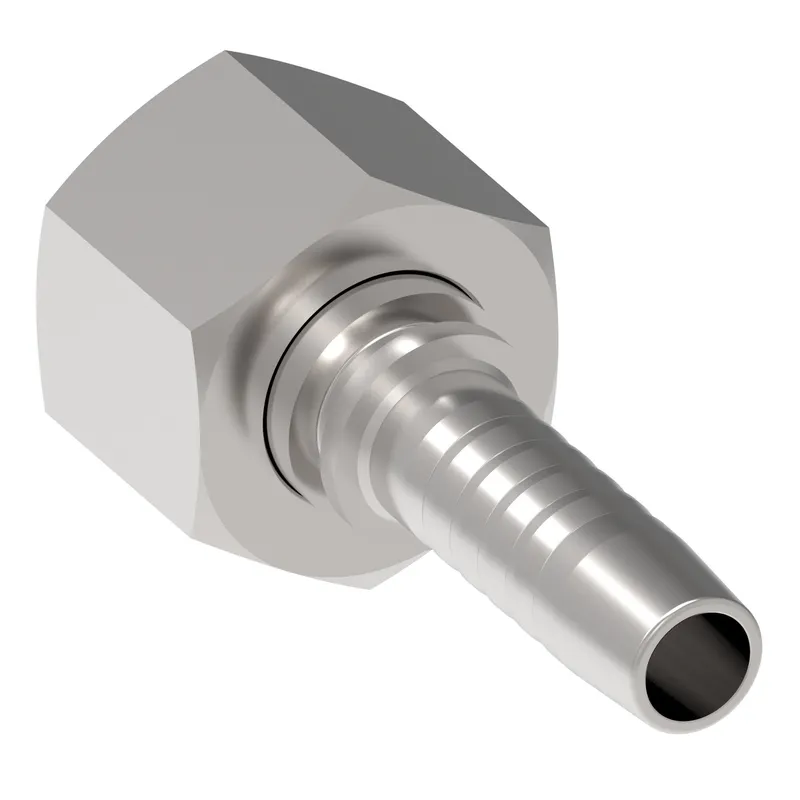

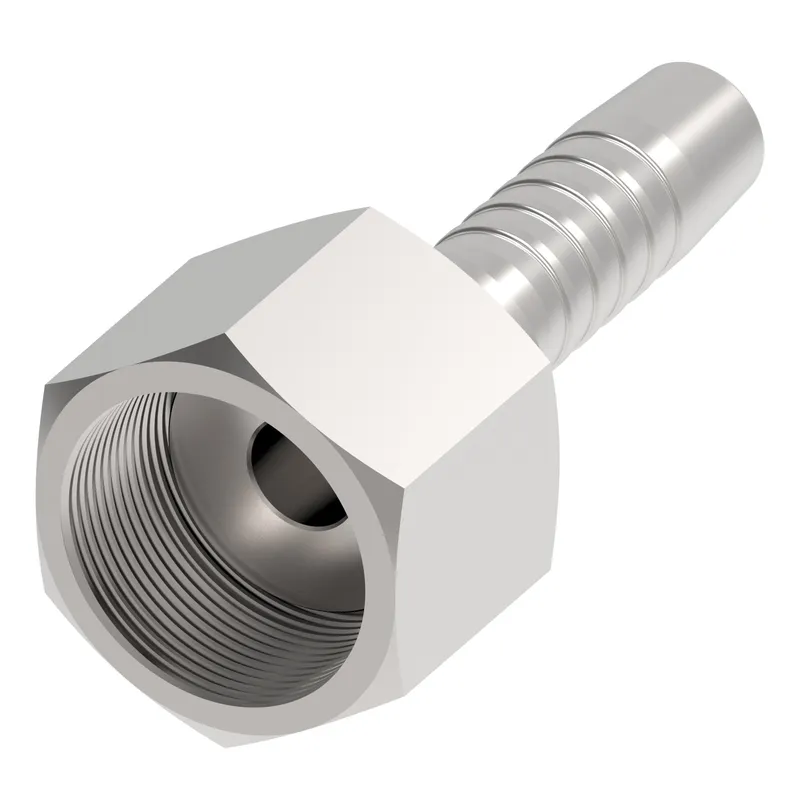

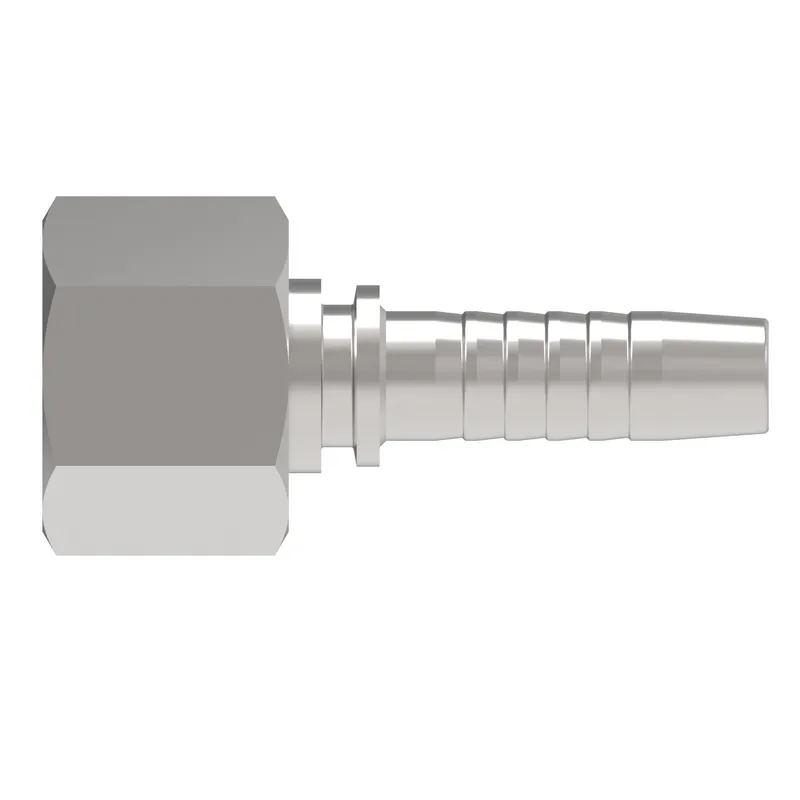

HOSE NIPPLE ASSY,2P/08,MORFS-F/27,CS,STR

MPN: 20211-27-08TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20211-27-08TZ?

Danfoss HOSE NIPPLE ASSY,2P/08,MORFS-F/27,CS,STR, manufacturer part number 20211-27-08TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.968
A dimension MM	50.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 2	-8
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.260
Hex size 1 MM	32.004
Hex size 2 IN	1.260
Hex size 2 MM	32.000
Hose cut off factor IN	0.728
Hose cut off factor MM	18.500
Hose size	-8
Inside diameter IN	0.393
Inside diameter MM	10.000
Product height in	1.440
Product height mm	36.576
Product length in	2.360
Product length mm	59.944
Product material	Carbon steel
Product width in	1.260
Product width mm	32.004
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M27x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
