Danfoss 20211-27-12Z

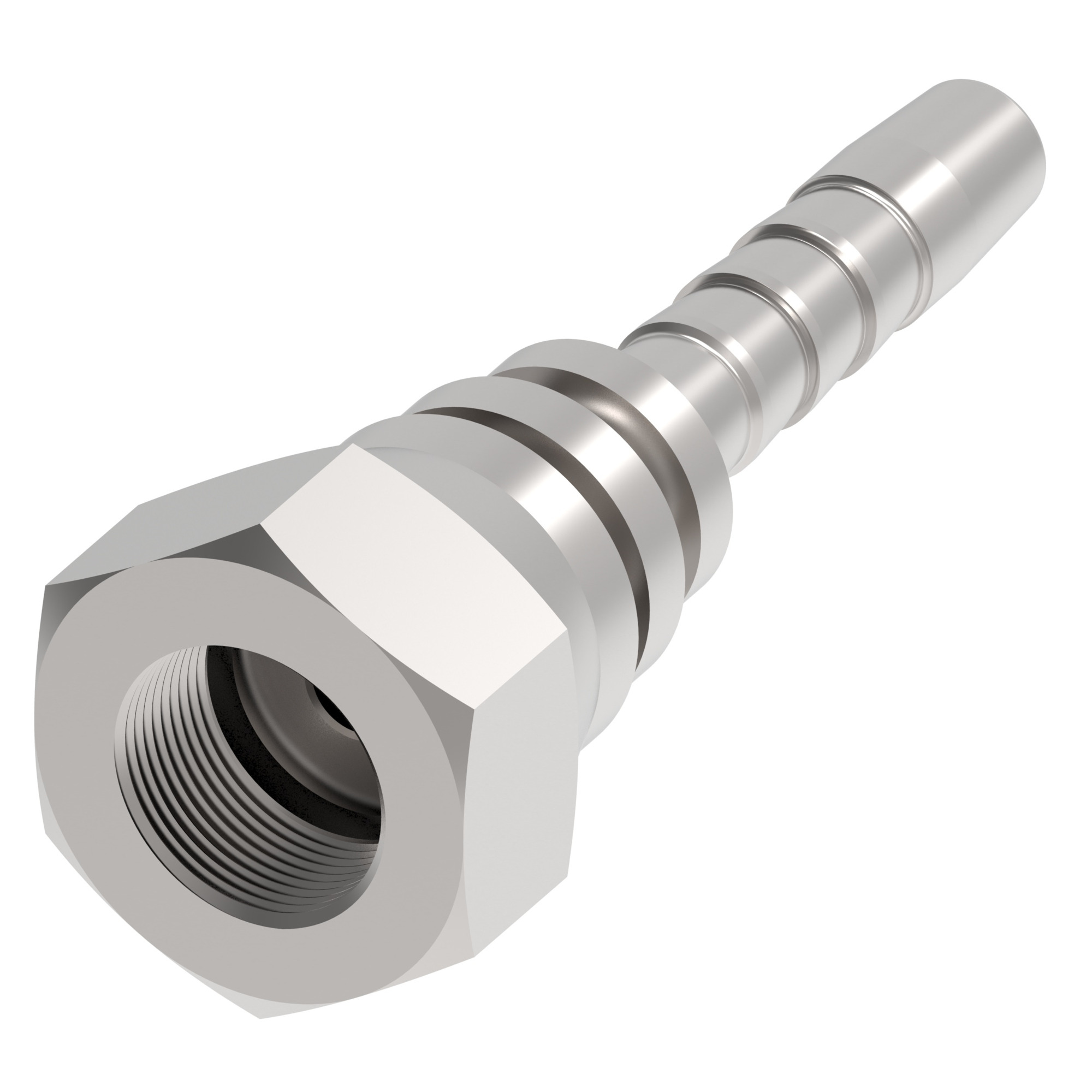

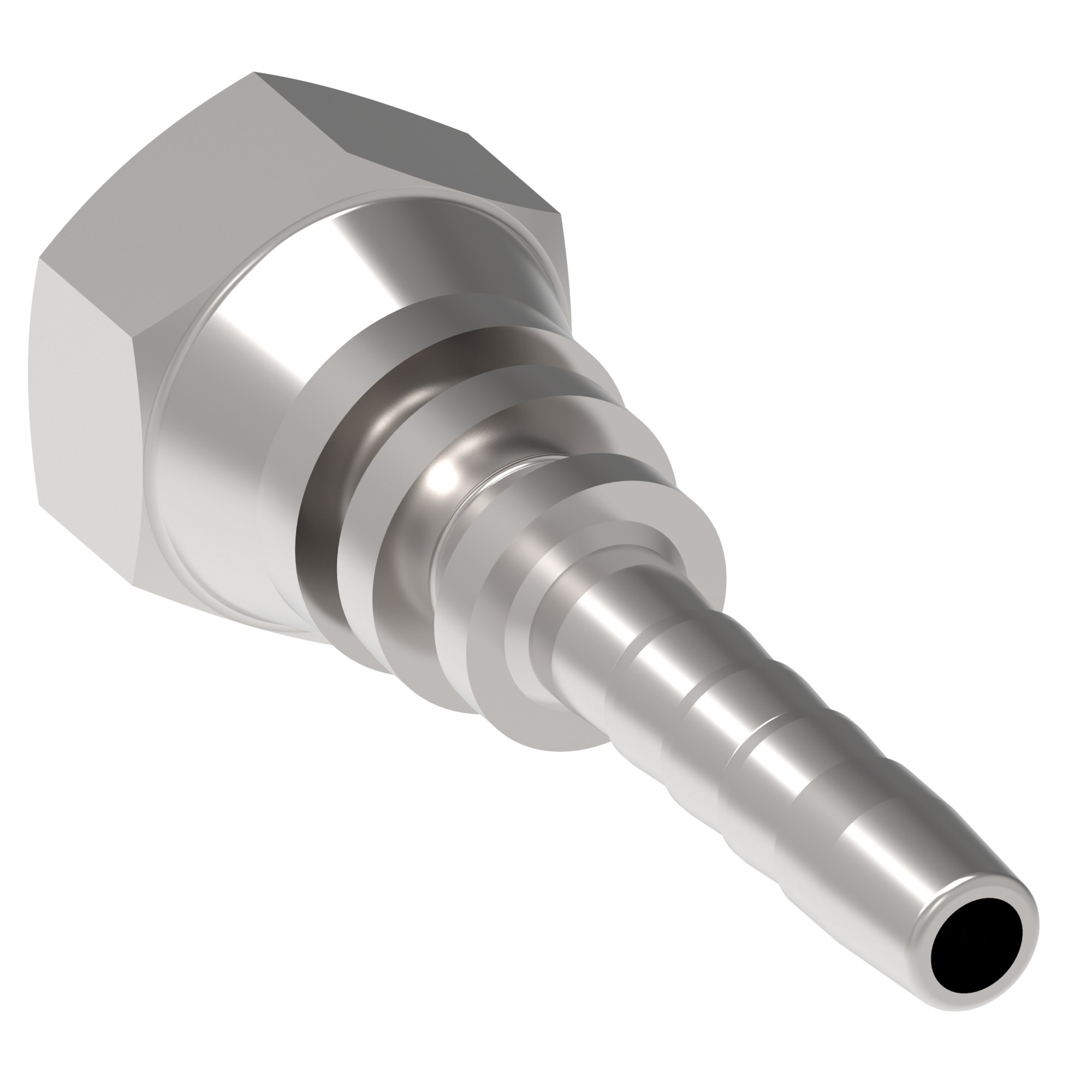

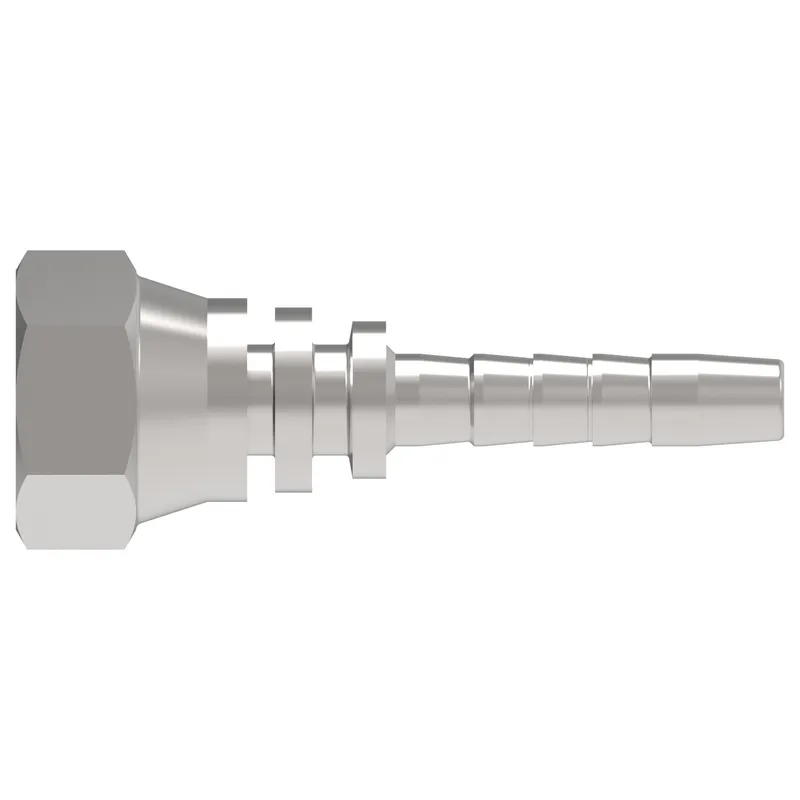

HOSE NIPPLE ASSY,2P/12,MORFS-F/27,CS,STR

MPN: 20211-27-12Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20211-27-12Z?

Danfoss HOSE NIPPLE ASSY,2P/12,MORFS-F/27,CS,STR, manufacturer part number 20211-27-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.362
A dimension MM	60.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End size 2	-12
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.260
Hex size 1 MM	32.004
Hex size 2 IN	1.260
Hex size 2 MM	32.000
Hose cut off factor IN	0.846
Hose cut off factor MM	21.500
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	1.440
Product height mm	36.576
Product length in	2.755
Product length mm	69.977
Product material	Carbon steel
Product width in	1.260
Product width mm	32.004
Series	Winner 2-Piece
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20211-27-12Z: frequently asked questions

When can 20211-27-12Z be shipped?

20211-27-12Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20211-27-12Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20211-27-12Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20211-27-12Z, subject to availability and destination.
