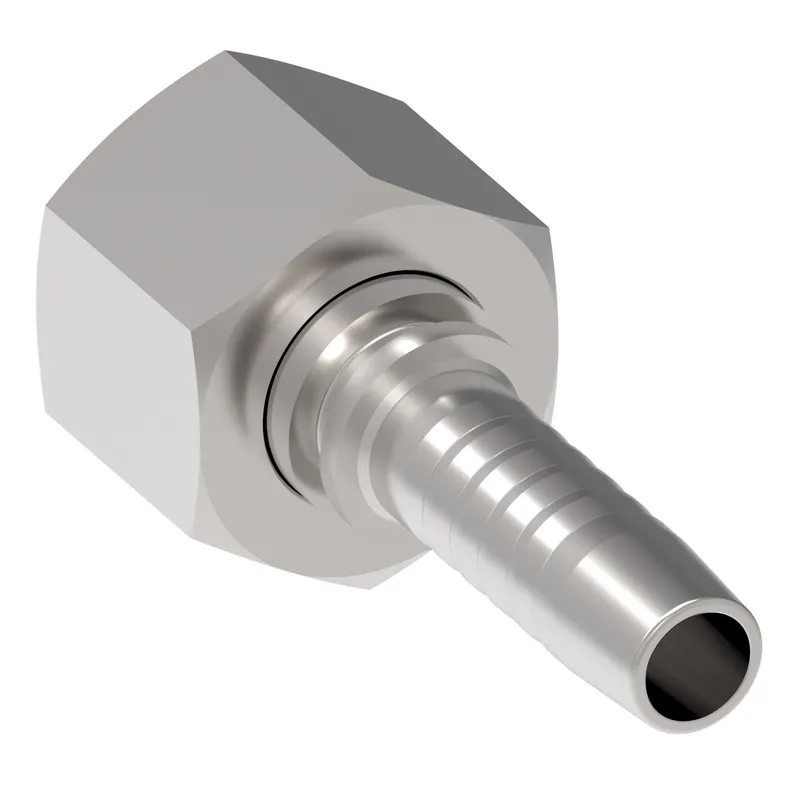

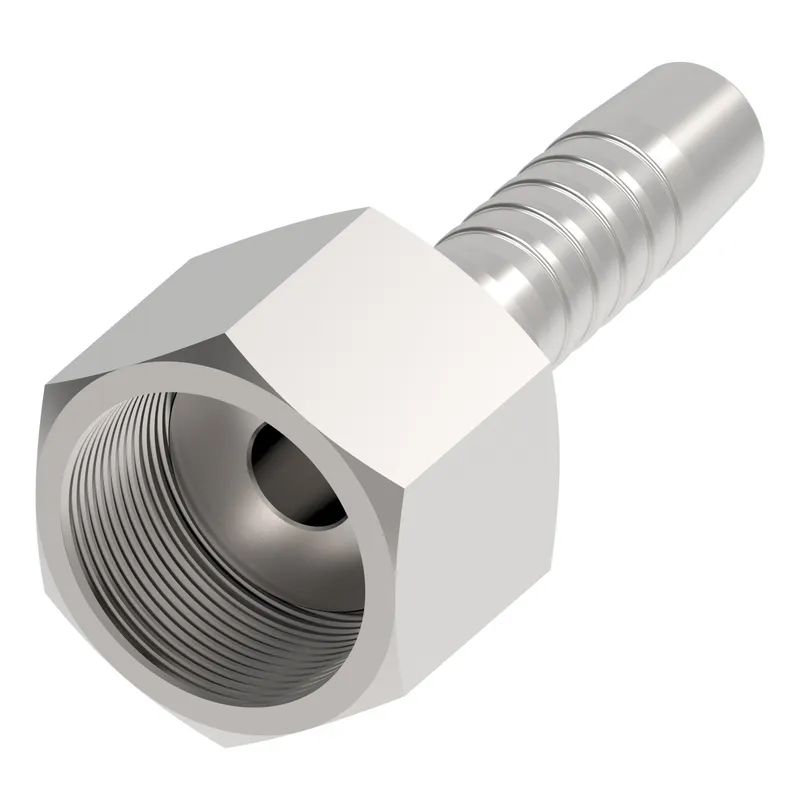

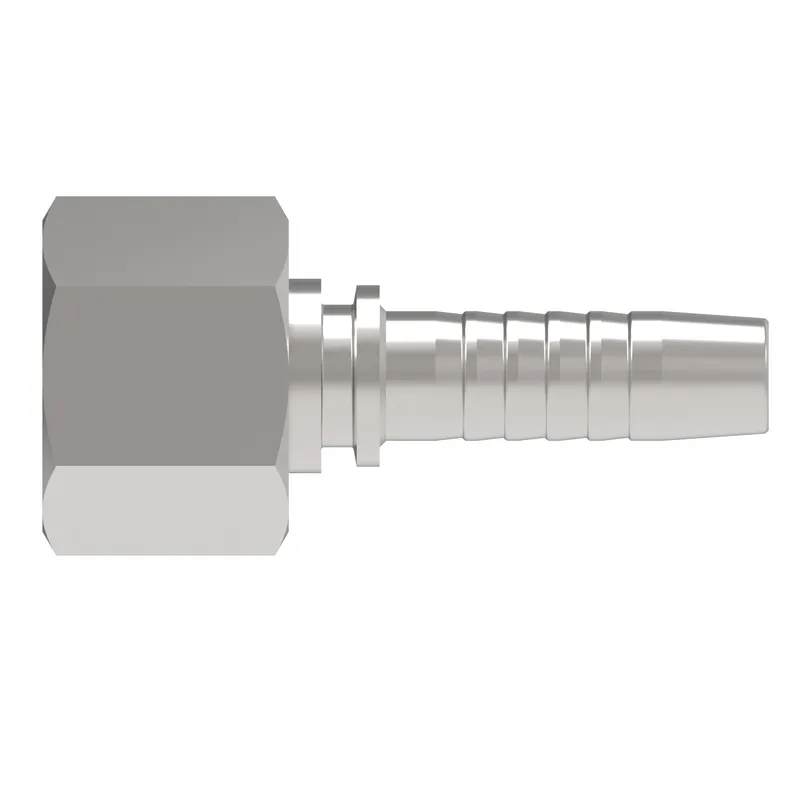

Danfoss 20211-24-08TZ

HOSE NIPPLE ASSY,2P/08,MORFS-F/24,CS,STR

MPN: 20211-24-08TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20211-24-08TZ?

Danfoss HOSE NIPPLE ASSY,2P/08,MORFS-F/24,CS,STR, manufacturer part number 20211-24-08TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.889
A dimension MM	48.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 2	-8
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.180
Hex size 1 MM	29.972
Hex size 2 IN	1.181
Hex size 2 MM	30.000
Hose cut off factor IN	0.649
Hose cut off factor MM	16.500
Hose size	-8
Inside diameter IN	0.393
Inside diameter MM	10.000
Product height in	1.360
Product height mm	34.544
Product length in	2.322
Product length mm	58.970
Product material	Carbon steel
Product width in	1.181
Product width mm	29.997
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M24x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20211-24-08TZ: frequently asked questions

When can 20211-24-08TZ be shipped?

20211-24-08TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20211-24-08TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20211-24-08TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20211-24-08TZ, subject to availability and destination.
