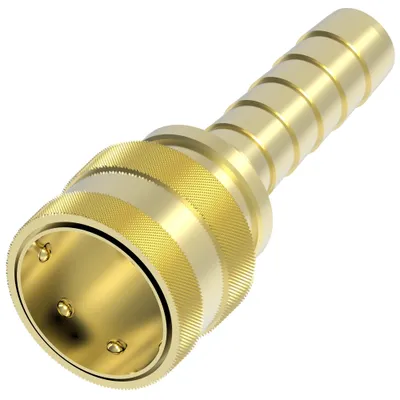

COUPLING,ST,F,1/8,B,-4BARB,NBR

Name: COUPLING,ST,F,1/8,B,-4BARB,NBR
Brand: Danfoss (Drives)
SKU: 1S17

MPN: 1S17 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1S17 be shipped?

1S17 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1S17 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1S17 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1S17, subject to availability and destination.

COUPLING,ST,F,1/8,B,-4BARB,NBR - 1S17

Specifications

EAN/UPC	678146097729
Angle shape	Straight
Application	Chemical, Fluid transfer, Food and beverage, Injection moulding, Marine, Medical, Pressure washing, Steam cleaning
Body size	1/8
Burst pressure min psi	11200
Connection style	Manual connect
End type 1	Male barb
Flow rate GPM	2.70
Fluid compatibility	Versatile fluid
Item type	Female half
Latch type	Push to connect
Product length in	1.410
Product material	Brass
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Valve type	Straight thru
Working pressure max psi	2800
Working temperature max F	250
Working temperature min F	-40
