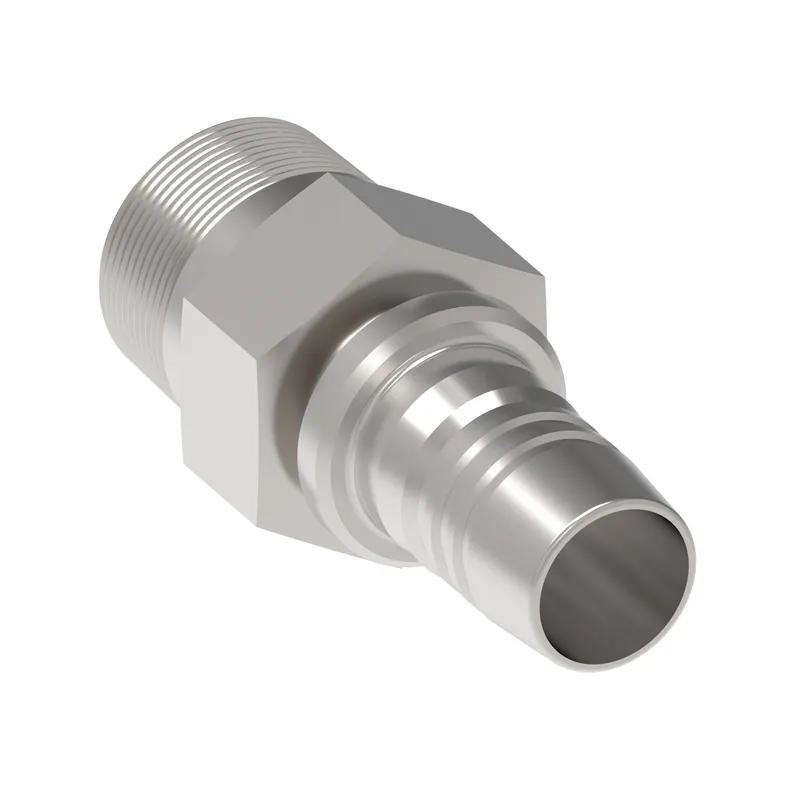

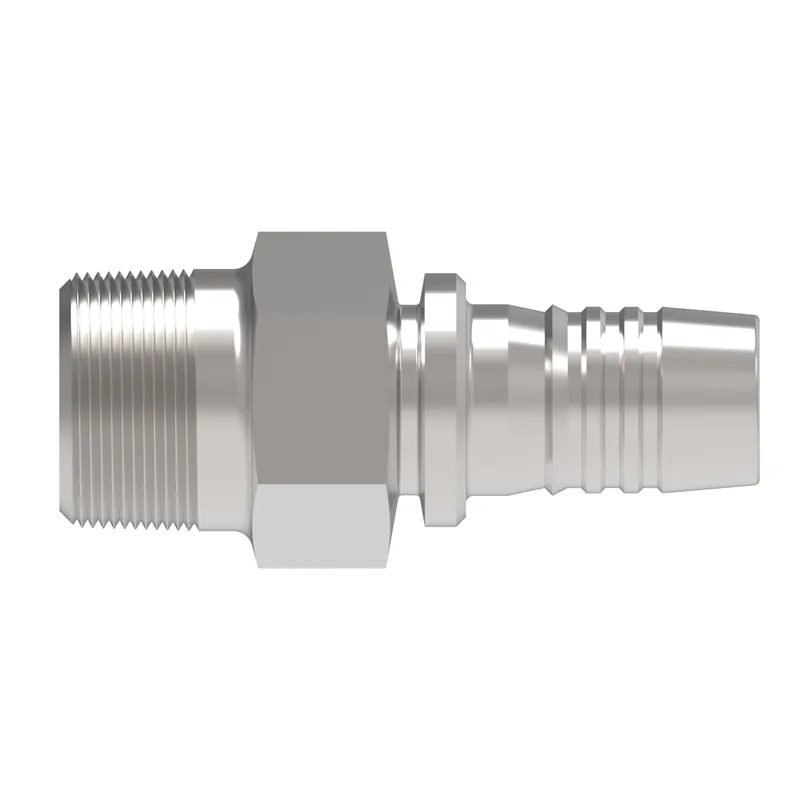

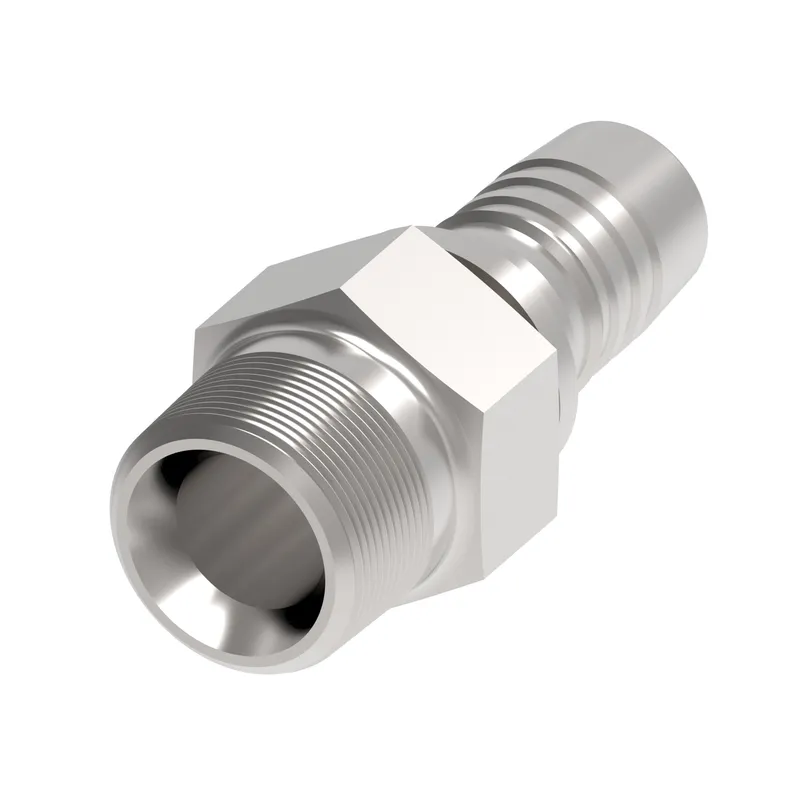

Danfoss 1S16MP12

HOSE NIPPLE ASSY,1A/12,NPTF-M/16,CS,STR

MPN: 1S16MP12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1S16MP12?

Danfoss HOSE NIPPLE ASSY,1A/12,NPTF-M/16,CS,STR, manufacturer part number 1S16MP12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.796
A dimension MM	71.010
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.050
Compatible hoses	2781
Construction Style	Crimp
End size 1	-16
End Type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 1 IN	1.417
Hex size 1 MM	36.000
Hose cut off factor IN	1.607
Hose cut off factor MM	40.810
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.630
Product height mm	41.402
Product length in	2.790
Product length mm	70.866
Product material	Carbon steel
Product width in	1.410
Product width mm	35.814
Thread sealant	Yes
Working pressure max BAR	276.00
Working pressure max PSI	4000.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
