Danfoss 1S16MP16

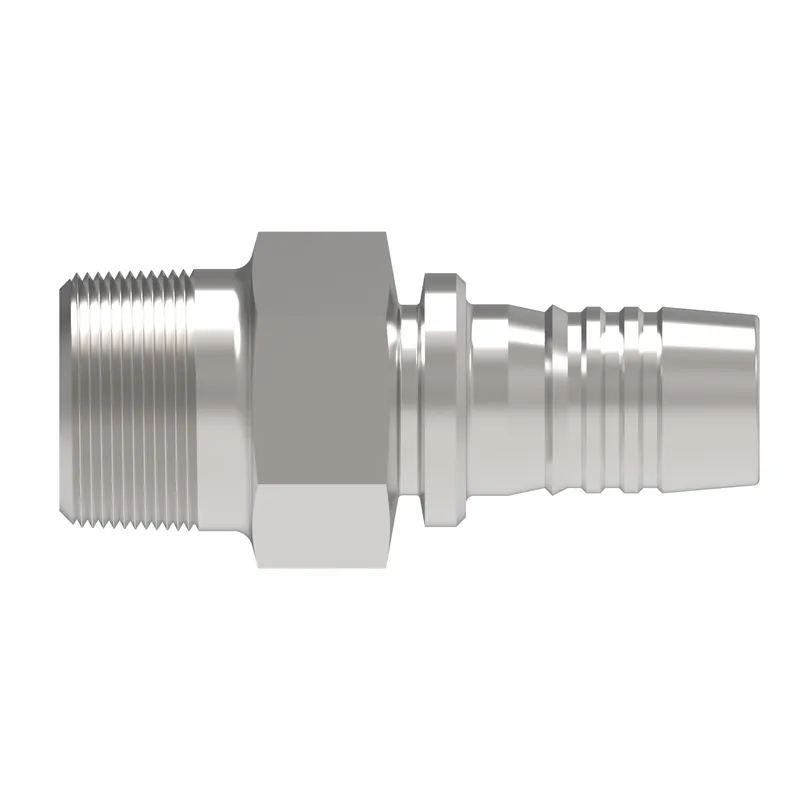

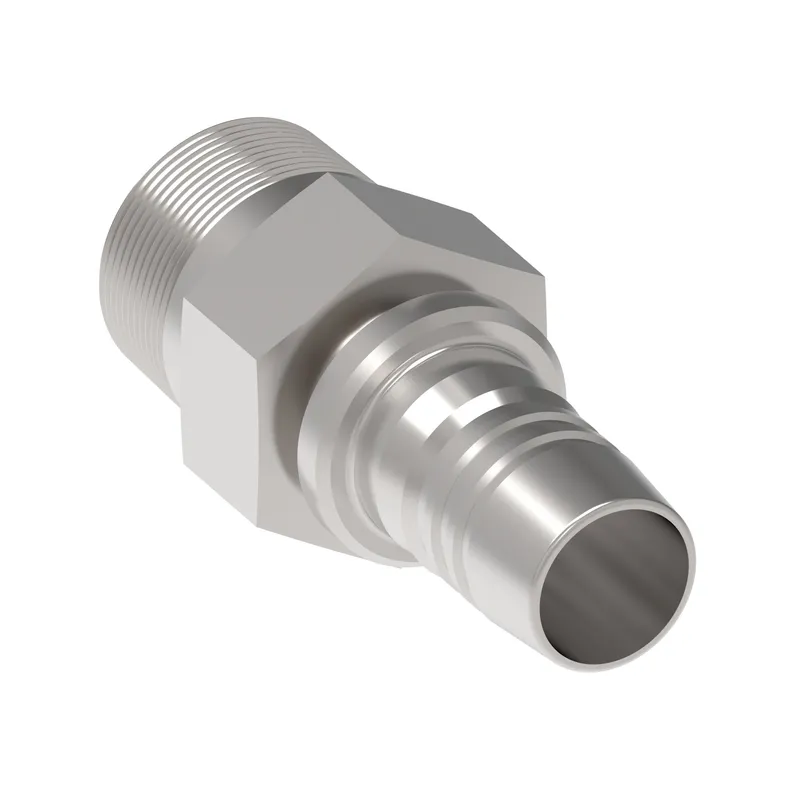

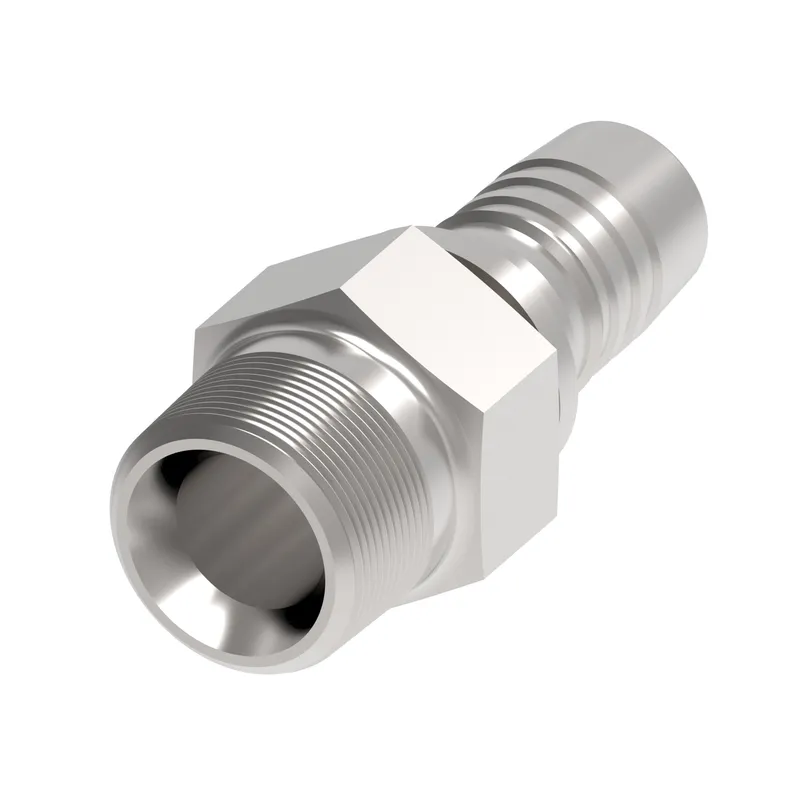

HOSE NIPPLE ASSY,1A/16,NPTF-M/16,CS,STR

MPN: 1S16MP16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1S16MP16?

Danfoss HOSE NIPPLE ASSY,1A/16,NPTF-M/16,CS,STR, manufacturer part number 1S16MP16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.215
A dimension MM	81.660
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	2781
Construction Style	Crimp
End size 1	-16
End Type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 1 IN	1.417
Hex size 1 MM	36.000
Hose cut off factor IN	2.309
Hose cut off factor MM	58.660
Hose size	-16
Inside diameter IN	0.811
Inside diameter MM	20.600
Product height in	1.630
Product height mm	41.402
Product length in	3.210
Product length mm	81.534
Product material	Carbon steel
Product width in	1.410
Product width mm	35.814
Thread sealant	Yes
Working pressure max BAR	276.00
Working pressure max PSI	4000.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
