Danfoss 1GA8FJB8

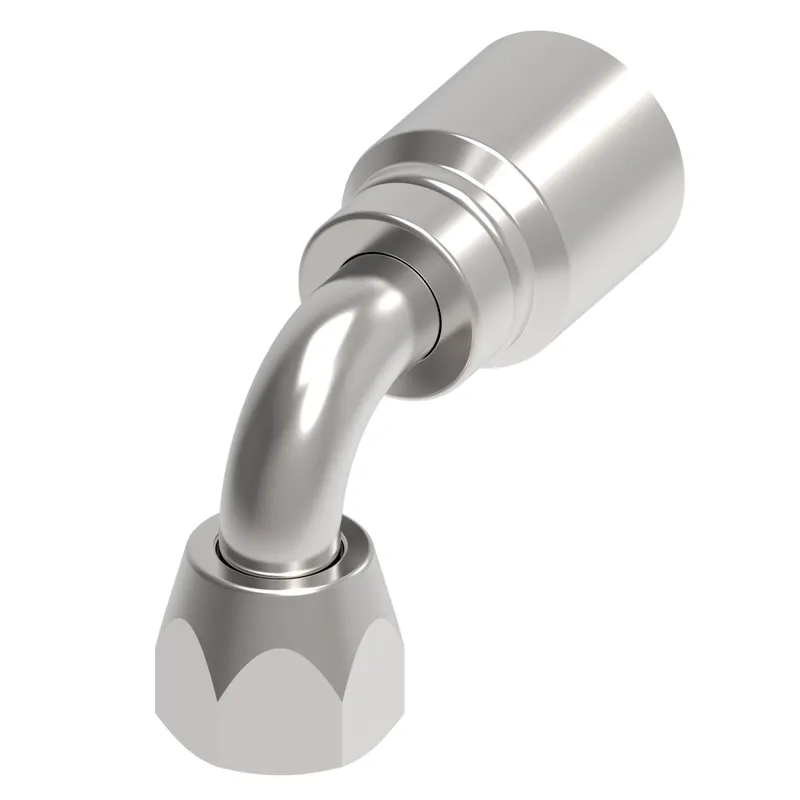

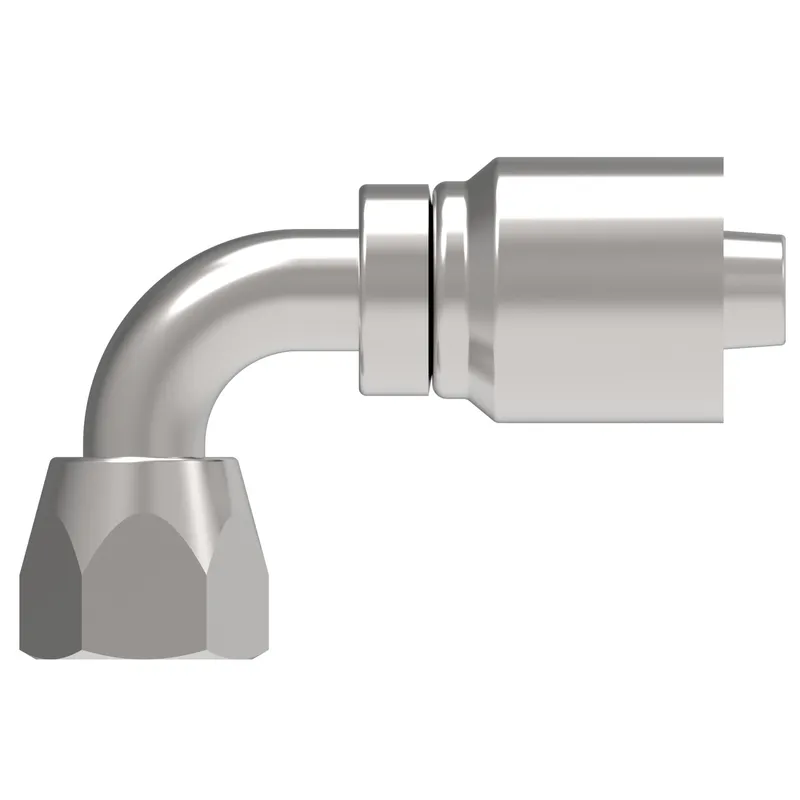

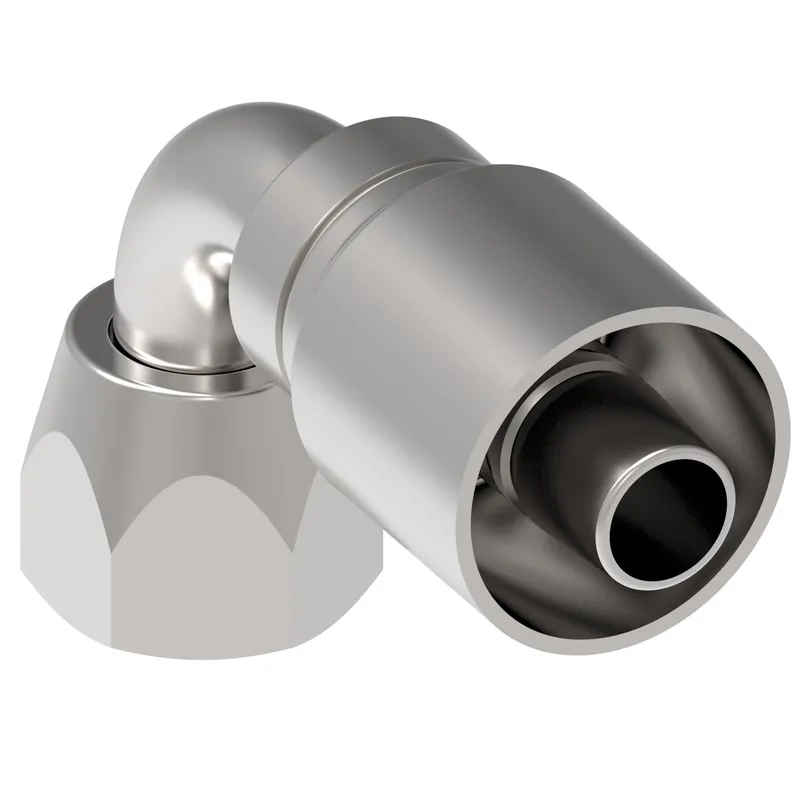

HOSE FTG, 1G/08, JIC-F/08, CS, 90D

MPN: 1GA8FJB8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1GA8FJB8?

Danfoss HOSE FTG, 1G/08, JIC-F/08, CS, 90D, manufacturer part number 1GA8FJB8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.350
A dimension MM	59.700
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.090
Drop dimension MM	27.70
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.420
Hose cut off factor MM	36.000
Hose size	-8
Inside diameter IN	0.370
Inside diameter MM	9.400
Product height in	2.070
Product height mm	52.578
Product length in	3.010
Product length mm	76.454
Product material	Carbon steel
Product width in	1.080
Product width mm	27.432
Series	OTC
Thread size 1	3/4-16 UNF
Working pressure max BAR	360.00
Working pressure max PSI	5300.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
