Danfoss 1G32FLB24

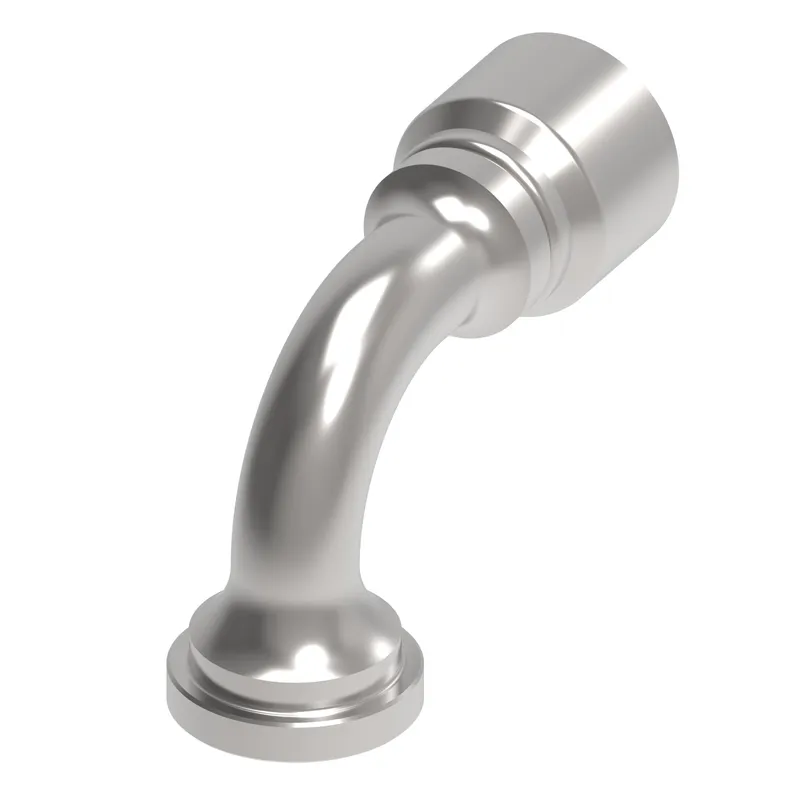

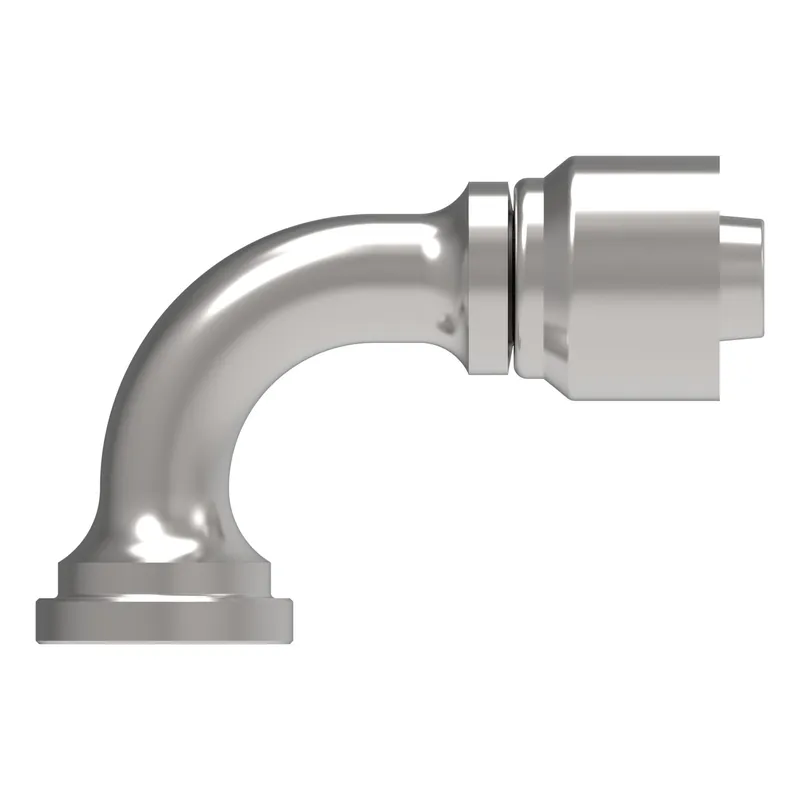

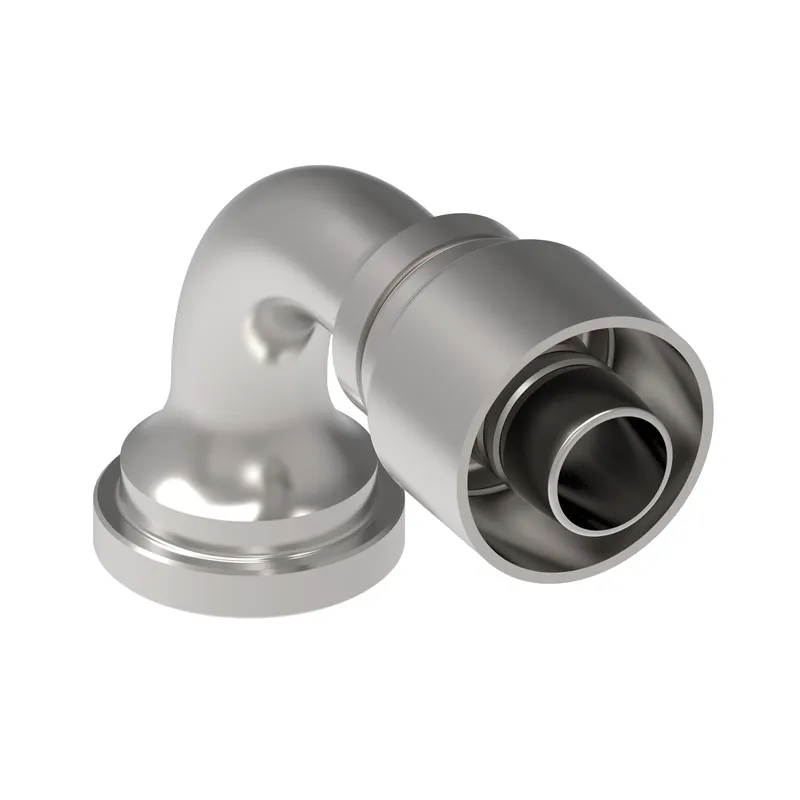

HOSE FTG, 1G/24, C61/32, CS, 90D

MPN: 1G32FLB24
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G32FLB24?

Danfoss HOSE FTG, 1G/24, C61/32, CS, 90D, manufacturer part number 1G32FLB24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	7.000
A dimension MM	177.900
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
Drop dimension IN	4.500
Drop dimension MM	114.30
End size 1	-32
End Type 1	Split flange code 61
Finish plating	Zinc plating
Hose cut off factor IN	5.450
Hose cut off factor MM	138.000
Hose size	-24
Inside diameter IN	1.260
Inside diameter MM	32.000
Product height in	5.620
Product height mm	142.748
Product length in	8.670
Product length mm	220.218
Product material	Carbon steel
Product width in	2.810
Product width mm	71.374
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Working pressure max BAR	206
Working pressure max PSI	3000
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
