Danfoss 1G32DLB20

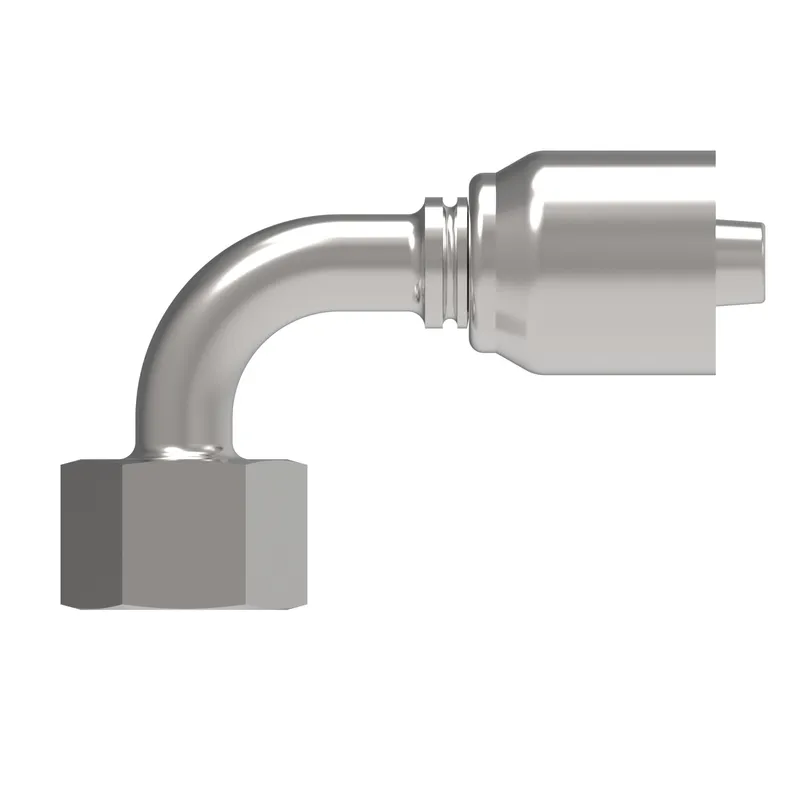

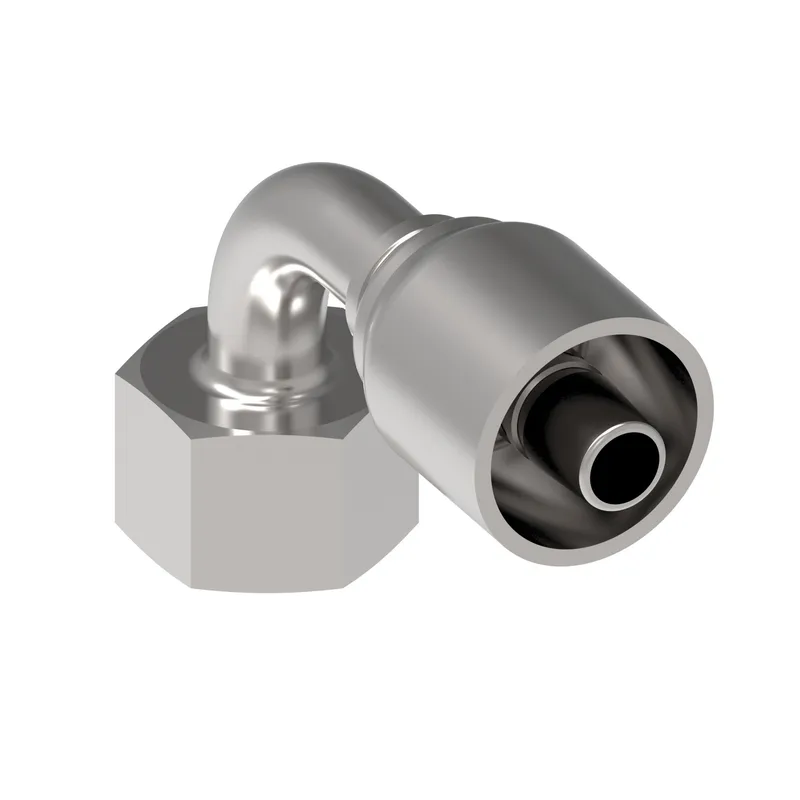

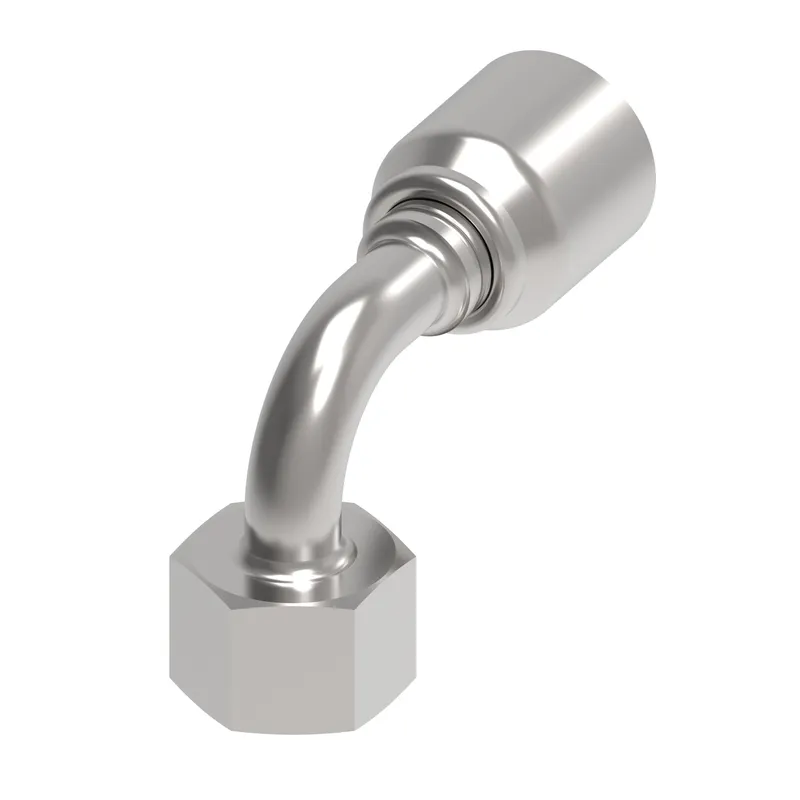

HOSE FTG, 1G/20, DKOL/32, CS, 90D

MPN: 1G32DLB20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G32DLB20?

Danfoss HOSE FTG, 1G/20, DKOL/32, CS, 90D, manufacturer part number 1G32DLB20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.110
A dimension MM	130.000
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Compatible hoses	GH585, GH586
Construction Style	Crimp
Drop dimension IN	3.110
Drop dimension MM	79.00
End size 1	-32
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	1.968
Hex size 1 MM	49.987
Hose cut off factor IN	3.380
Hose cut off factor MM	86.000
Hose size	-20
Inside diameter IN	1.040
Inside diameter MM	26.600
Product height in	3.110
Product height mm	78.994
Product length in	5.118
Product length mm	129.997
Product material	Carbon steel
Product width in	1.968
Product width mm	49.987
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	M45x2
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1G32DLB20: frequently asked questions

When can 1G32DLB20 be shipped?

1G32DLB20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1G32DLB20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1G32DLB20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1G32DLB20, subject to availability and destination.
